Trade Discount 25%

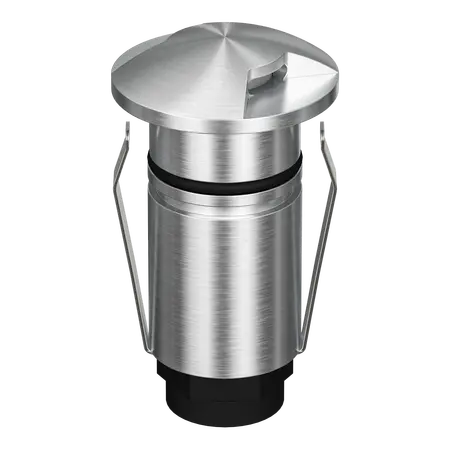

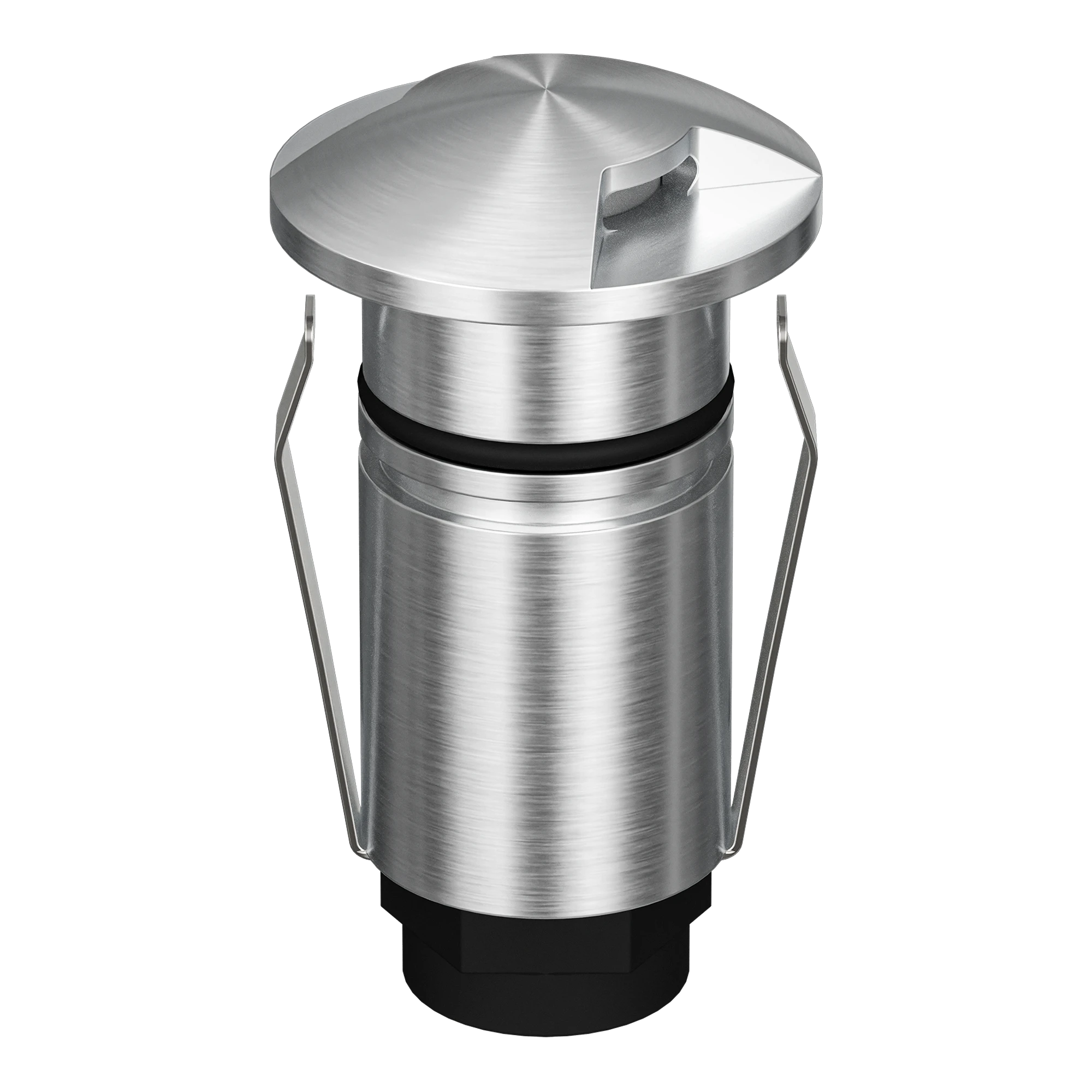

Emit Deck Light 25mm Tri-Colour 12/24V 2-Way 316 Stainless Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 2-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-TRIO-STS 2-Way Inground Light, 25mm LED Deck Light, Mini Inground Light, Tri-Colour Decklight
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 1W
- Light Source: CREE LED
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Lumen Output: 1.3lm at 3000K, 1.3lm at 4000K and 1.2lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- Rated Life: 50,000 hours
- Cutout Diameter: 19mm without cannister or 24mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Fascia: 2-way
- Material: 316 stainless steel
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.3 kg
Key Features
- Tri-colour selectable output: warm white, neutral white and white
- Compact 25mm deck-light format for feature and pathway illumination
- Two-way fascia directs light in opposing directions
- 316 stainless steel construction for exterior applications
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact rating
- 36° beam angle supplied as standard
- Optional narrow, wide, honeycomb and opal diffuser accessories available
- Long 50,000-hour LED service life
Professional Installation Requirements
- Installation and connection to the 12/24V DC constant-voltage driver should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable electrical safety requirements. Use only a compatible driver and wire fittings in parallel.
Applications
- Residential and commercial deck lighting
- Pathway and step lighting
- Feature lighting for landscaping and architectural details
- Inground lighting around patios, gardens and outdoor entertaining areas
- Low-voltage exterior lighting installations
Standards & Compliance
- Relevant to AS/NZS 60598.1 for general luminaire requirements and tests
- Relevant to AS/NZS 60598.2.13 for ground-recessed luminaires
- ELV equipment safety should be assessed against AS/NZS 3820 where applicable
Environmental Benefits
- Low 1W power consumption supports energy-efficient exterior lighting designs
- 50,000-hour rated LED life can reduce replacement frequency and material waste
- 316 stainless steel components are durable and recyclable at end of service life
- 12/24V DC extra-low-voltage operation can reduce electrical risk in outdoor installations when used with a suitable driver
Warranty Information
The product datasheet states a 5-year replacement warranty. Domus Lighting's current warranty statement lists exterior deck and inground lights as covered for 3 years for residential applications and 12 months for commercial applications; confirm the applicable warranty at purchase. Warranty claims require installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
