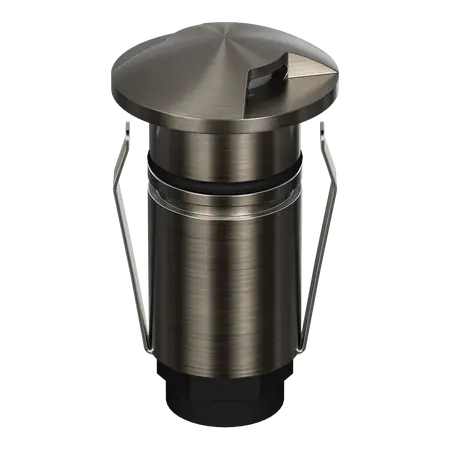

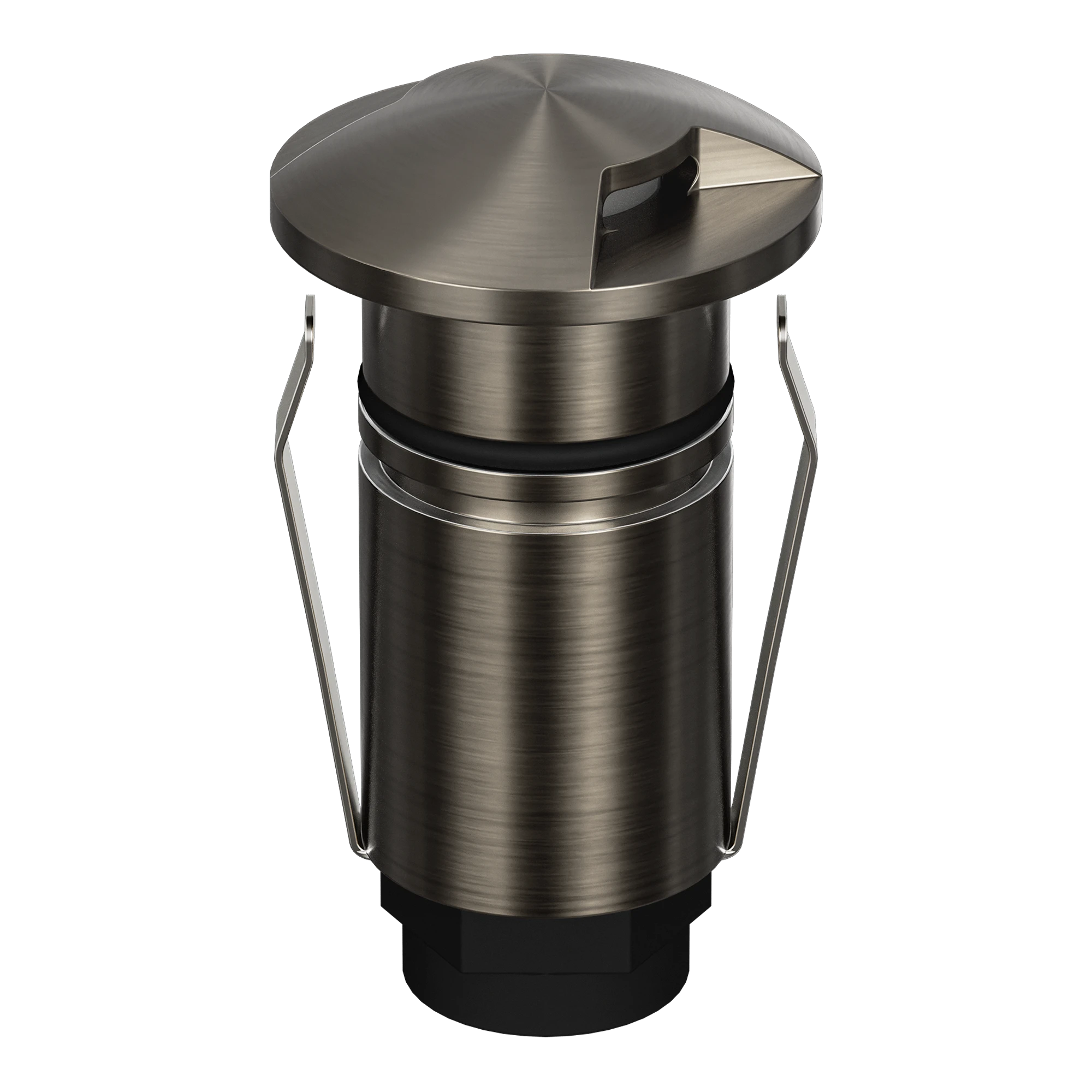

Emit Deck Light 25mm Tri-Colour 12/24V 2-Way Antique Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 2-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 Trio 2-Way Inground Light, 25mm LED Deck Light, Multi-Colour LED Inground Light
Technical Specifications
- Product Type: Miniature inground and deck light
- Variant: Tri-colour, 2-way fascia
- Finish: Antique brass
- Wattage: 1W
- Input Voltage: 12/24V DC
- Light Output: 1.2 lm nominal per selectable colour temperature
- Colour Temperature: 3000K, 4000K or 5500K selectable
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Rated Life: 50,000 hours
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Driver Included: No
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Compact 25mm diameter design for discreet deck, pathway and landscape lighting
- Tri-colour selection between warm white, neutral white and white
- Two-way fascia directs light in opposing directions
- Antique brass finish for architectural and landscape applications
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact rating and 1500 kg drive-over rating
- High colour rendering with CRI ≥90
- Optional beam lenses, honeycomb and opal diffuser accessories available
- Water-stop cable joint helps reduce water syphoning through the cable
- Designed for use with 12V or 24V DC constant-voltage LED drivers
Professional Installation Requirements
- Installation and connection to the 12V or 24V DC constant-voltage driver should be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's wiring instructions. Use a suitable outdoor-rated driver and maintain the required IP protection at all cable joints.
Applications
- Residential deck and stair lighting
- Landscape and garden feature lighting
- Pathway and walkway illumination
- Architectural facade and outdoor feature lighting
- Drive-over exterior lighting where the 1500 kg load rating is suitable
- Commercial landscape and hospitality outdoor lighting
Standards & Compliance
- AS/NZS 3000:2018 - applicable to the associated electrical installation and wiring
- AS/NZS 60598.1 - relevant general safety requirements for luminaires; confirm the manufacturer's specific compliance documentation before project specification
Environmental Benefits
- 1W LED output supports lower energy consumption than equivalent halogen feature lighting
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Brass and stainless-steel components can be recovered and recycled at end of service life
- Selectable colour temperature can help avoid replacing fittings when lighting preferences or project requirements change
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 Tri-Colour series. Warranty eligibility is subject to Domus Lighting's warranty conditions, including licensed electrical installation and installation in accordance with the manufacturer's instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; confirm current stock and lead time with the distributor.
