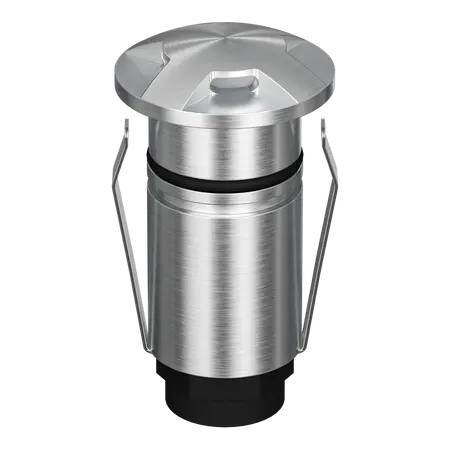

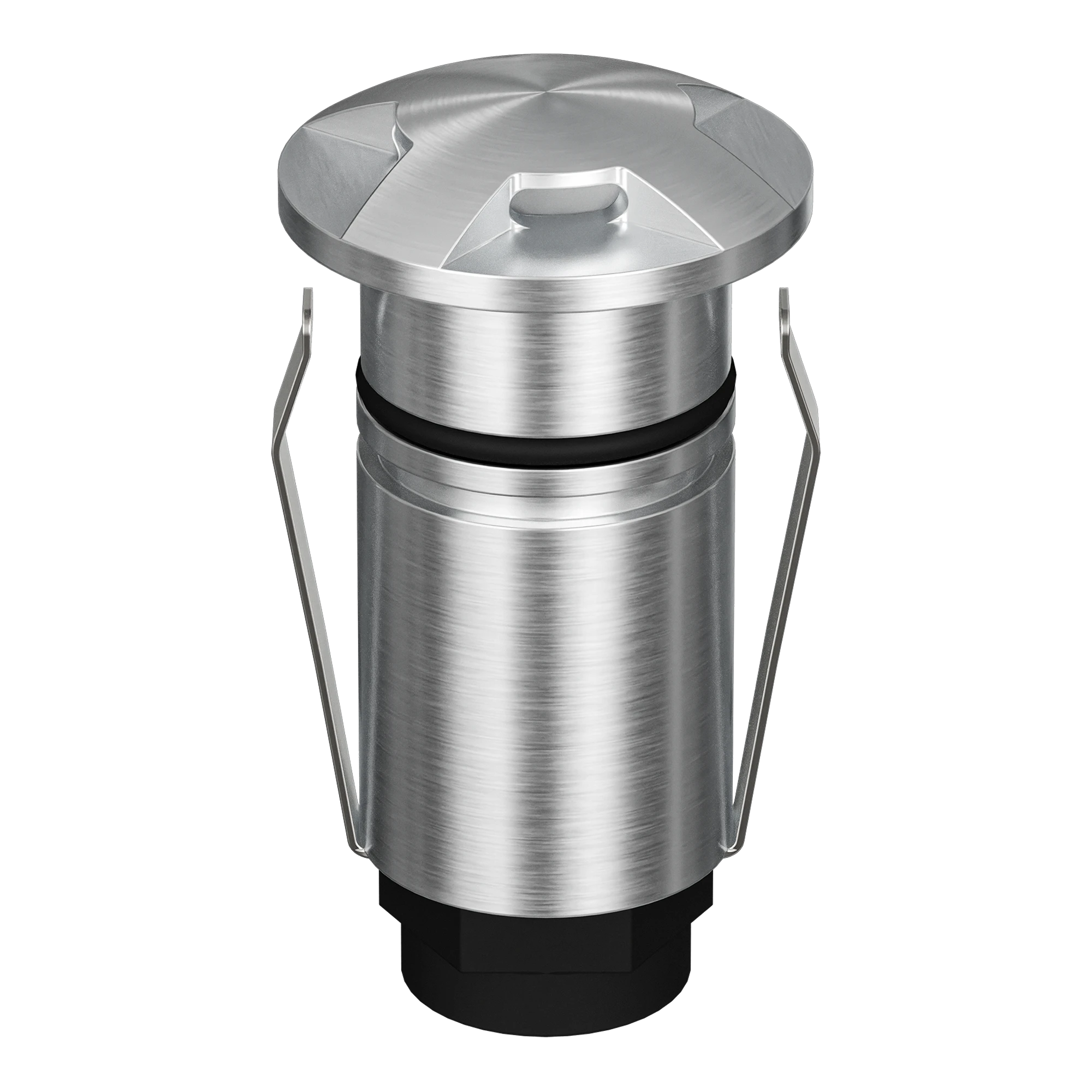

Emit Deck Light 25mm Tri-Colour 12/24V 3-Way 316 Stainless Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 3-Way Inground Light, 25mm LED Deck Light, Tri-Colour Step Light, Micro Inground Light
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 1W
- Light Source: CREE LED
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: ≥90
- Luminous Output: Approximately 2.2 lm for the 3-way fascia
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Material: 316 stainless steel fascia and light unit
- Cutout: Ø19mm without cannister or Ø24mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Drive-Over Rating: Up to 2,000kg when correctly installed
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Tri-colour selectable output for warm, neutral and cool white lighting
- Three-way fascia design for directional feature illumination
- Compact 25mm diameter format for decks, steps and inground installations
- 316 stainless steel construction for outdoor applications
- IP67-rated protection against dust and temporary water immersion
- IK10 impact resistance
- 36° beam angle supplied as standard
- Optional narrow-beam, wide-beam, honeycomb and opal diffuser accessories
- Low 1W power consumption
- Suitable for 12V and 24V DC constant-voltage lighting systems
Professional Installation Requirements
- Installation should be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver and wire fittings in parallel in accordance with the manufacturer's installation instructions. The driver is required and is not included.
Applications
- Deck and stair lighting
- Landscape and pathway lighting
- Architectural feature lighting
- Inground lighting
- Outdoor residential lighting
- Commercial landscape and public-area lighting
Standards & Compliance
- AS/NZS 60598.1:2017 – applicable general safety requirements for luminaires; specific product conformity declaration was not located
- AS/NZS 3000 – applicable to the associated Australian low-voltage electrical installation
Environmental Benefits
- Low 1W power consumption can reduce operating energy use compared with higher-wattage feature lights
- 50,000-hour rated LED lifespan can reduce replacement frequency and product waste
- 316 stainless steel components are durable and recyclable at end of service life
- Selectable colour temperature helps match light output to the application without replacing the fitting
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 series, subject to the manufacturer's warranty terms, approved installation and use of compatible products.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
