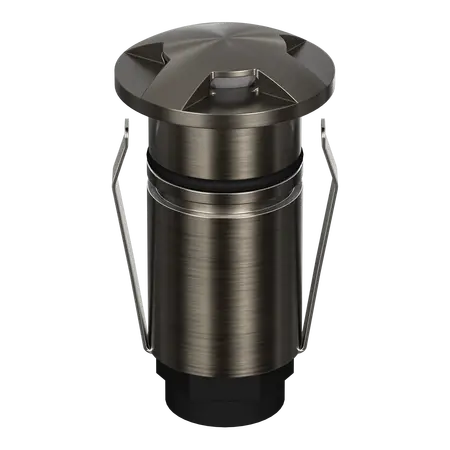

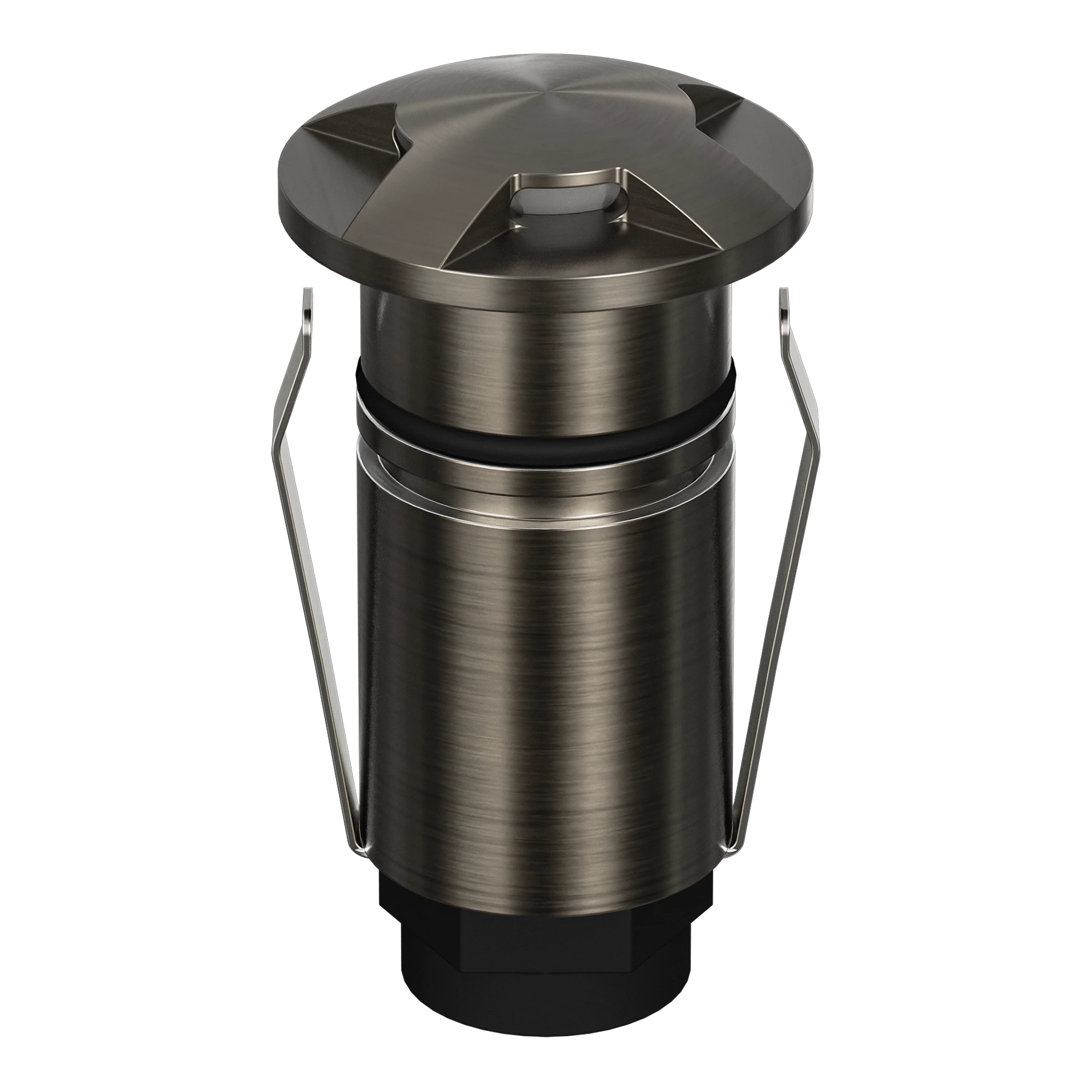

Emit Deck Light 25mm Tri-Colour 12/24V 3-Way Antique Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 25mm Tri-Colour Inground Light, Emit-25 3-Way Deck Light, Antique Brass LED Inground Light
Technical Specifications
- Model: EMIT-25-TRIO-3WAY
- Variant: TRIO 3-way
- Finish: Antique brass
- Material: Antique brass
- Power: 1W
- Input Voltage: 12/24V DC
- Driver Requirement: 12V or 24V constant-voltage LED driver
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Luminous Output: 2.2 lm at 3000K, 4000K and 5500K
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cut-out Diameter: 19mm without cannister or 24mm with cannister
- Load Rating: Up to 1500kg drive-over
- Wiring: Connect fittings in parallel
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm mini inground and deck light
- Three selectable white colour temperatures
- Antique brass 3-way fascia
- IP67 protection for outdoor and inground applications
- IK10 impact resistance
- Suitable for drive-over installations when correctly installed
- 36° beam angle supplied as standard
- Optional lenses, honeycomb and diffuser accessories available
- Requires a separate 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel and follow the manufacturer's installation instructions. The driver and any mains-voltage connection must be installed in accordance with applicable Australian electrical requirements.
Applications
- Deck lighting
- Inground feature lighting
- Landscape lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.2.23:2021 - applicable to extra-low-voltage lighting systems; verify final system and driver certification for the installation
- AS/NZS 3000 - applicable to the electrical installation, driver connection and wiring practices
Environmental Benefits
- Low 1W LED power consumption supports energy-efficient feature lighting
- Long 50,000-hour LED lifespan can reduce replacement frequency and product waste
- Durable IP67 and IK10 construction can extend service life in outdoor environments
- LED technology contains no mercury-based fluorescent lamp components
Warranty Information
5-year replacement warranty as stated by Domus Lighting for the EMIT-25 product series. Warranty eligibility requires installation in accordance with the manufacturer's instructions; Domus states that products must be installed by a licensed electrician for warranty claims.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
