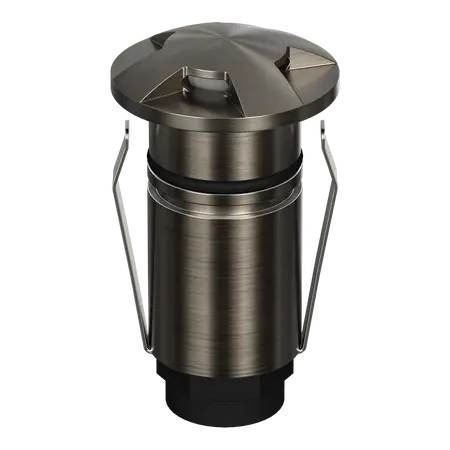

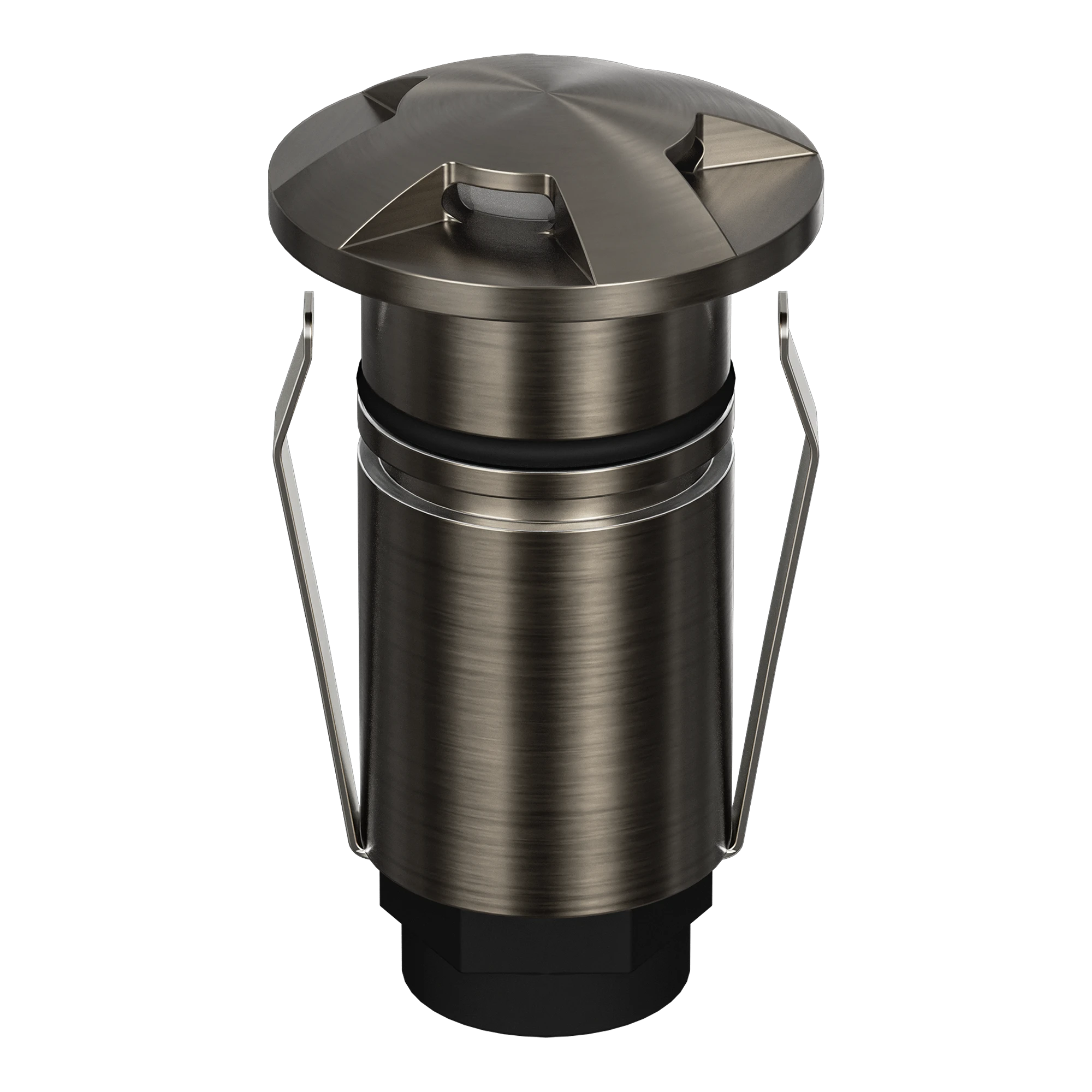

Emit Deck Light 25mm Tri-Colour 12/24V 4-Way Antique Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 25mm Inground Light, Emit-25-TRIO-AB, 4-Way LED Inground Light, Antique Brass Deck Light
Technical Specifications
- Item Number: 10036
- Light Type: Tri-colour selectable LED
- Wattage: 1W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 3.1 lm at 3000K, 4000K and 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- LED Lifespan: 50,000 hours
- Load Rating: 1500 kg drive-over
- Cutout: 19 mm without canister or 24 mm with canister
- Driver Requirement: 12V or 24V constant-voltage LED driver, wired in parallel
- Finish: Antique brass
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25 mm diameter inground and deck light
- Four-way fascia for directional feature lighting
- Selectable warm white, neutral white and white colour temperatures
- Suitable for landscape, pathway, stair and architectural lighting
- IP67-rated construction for outdoor applications
- IK10 impact rating and 1500 kg drive-over load rating
- Standard 36° beam with optional 19° and 60° lenses
- Requires a separate 12/24V DC constant-voltage LED driver
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation should be carried out by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Residential deck and step lighting
- Pathway and garden lighting
- Landscape feature illumination
- Architectural and façade accent lighting
- Drive-over inground lighting where the 1500 kg load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2025 – relevant general safety requirements for luminaires
- AS/NZS 3000:2018 – applicable requirements for installation of the low-voltage lighting system and driver
Environmental Benefits
- Low 1W LED power consumption supports reduced operating energy use
- 50,000-hour LED lifespan can reduce replacement frequency and associated material waste
- Durable IP67 and IK10 construction supports extended service life in outdoor installations
Warranty Information
5-year replacement warranty as specified by Domus Lighting for the EMIT-25 series, subject to the manufacturer's warranty conditions, approved installation and licensed electrician requirements.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
