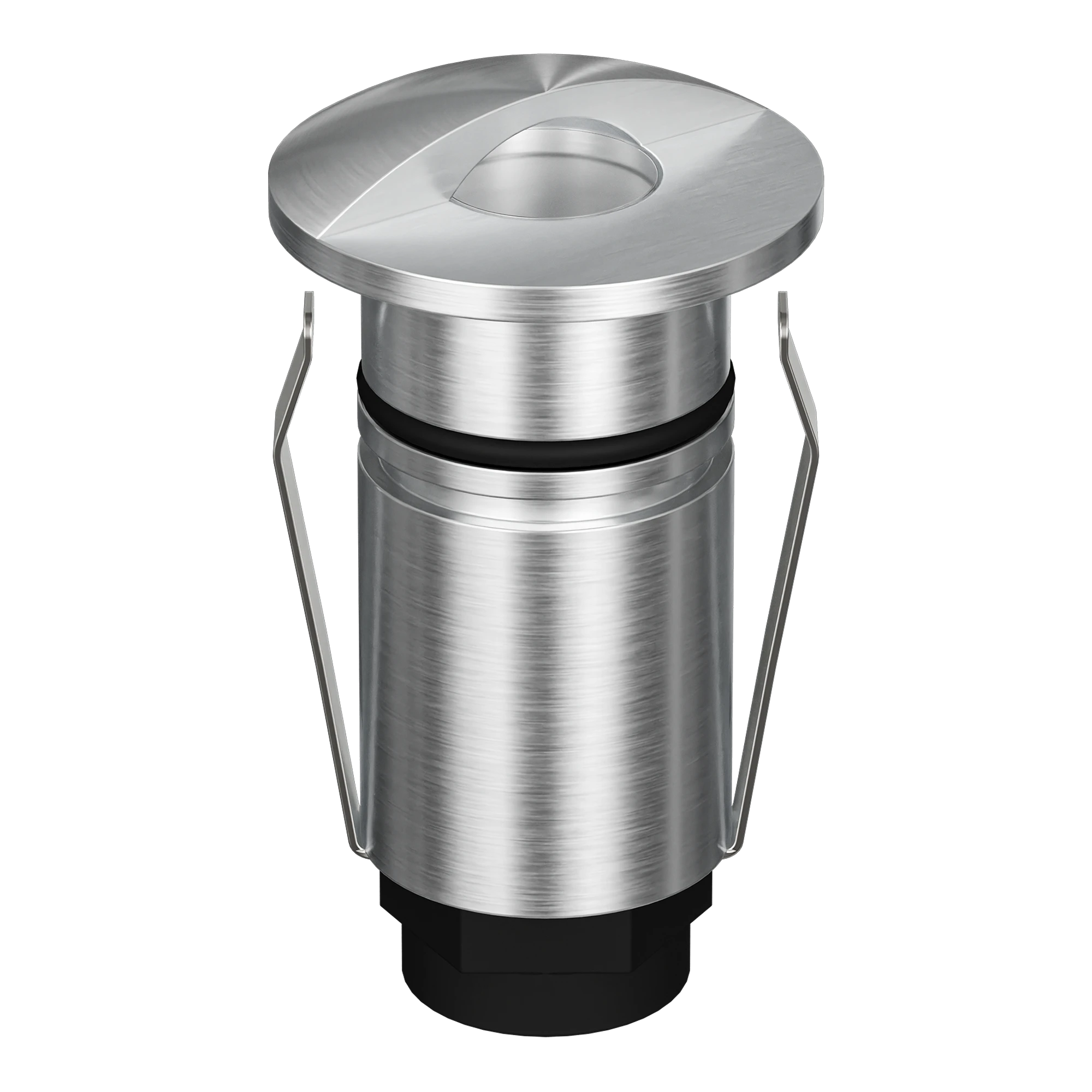

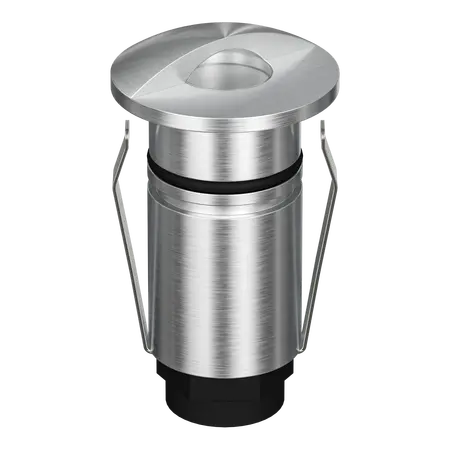

Emit Deck Light 25mm Tri-Colour 12/24V Eyelid 316 Stainless Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 25 Eyelid Deck Light, EMIT-25-TRIO-STS, 25mm LED Inground Light, Tri-Colour Eyelid Inground Light
Technical Specifications
- Model: EMIT-25-TRIO-STS
- Variant: TRIO
- Material: 316 stainless steel
- Input Voltage: 12/24V DC
- Power: 1W
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Luminous Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimmable: No
- Rated Lifespan: 50,000 hours
- Cut-out: 19mm without cannister; 24mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Tri-colour selectable output for warm white, neutral white and white illumination
- 316 stainless steel eyelid fascia for discreet directional lighting
- Compact 25mm diameter form factor
- IP67 protection for suitable outdoor and inground applications
- IK10 impact rating and 1500kg drive-over load rating
- 36° standard beam angle with optional narrow and wide-angle lenses
- High colour rendering with CRI ≥90
- Requires a compatible 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation and connection should be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, and ensure cable joints and drainage are suitable for the outdoor installation environment.
Applications
- Residential deck and pathway lighting
- Landscape and garden feature lighting
- Stair and step illumination
- Architectural and façade accent lighting
- Drive-over inground lighting where the 1500kg load rating is suitable
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules for electrical installation and connection requirements
- AS/NZS 60598.1:2017 Luminaires, Part 1: General requirements and tests, as the applicable luminaire safety standard
Environmental Benefits
- Low 1W power consumption supports reduced operating energy use
- LED light source provides a long rated lifespan of 50,000 hours, reducing replacement frequency and waste
- 316 stainless steel construction is durable and recyclable at end of service life
- Selectable colour temperature can help avoid over-lighting by matching output to the application
Warranty Information
Domus specifies a 5-year replacement warranty for the EMIT-25-TRIO-EYELID range, subject to its warranty conditions, licensed installation and installation in accordance with the manufacturer's instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
