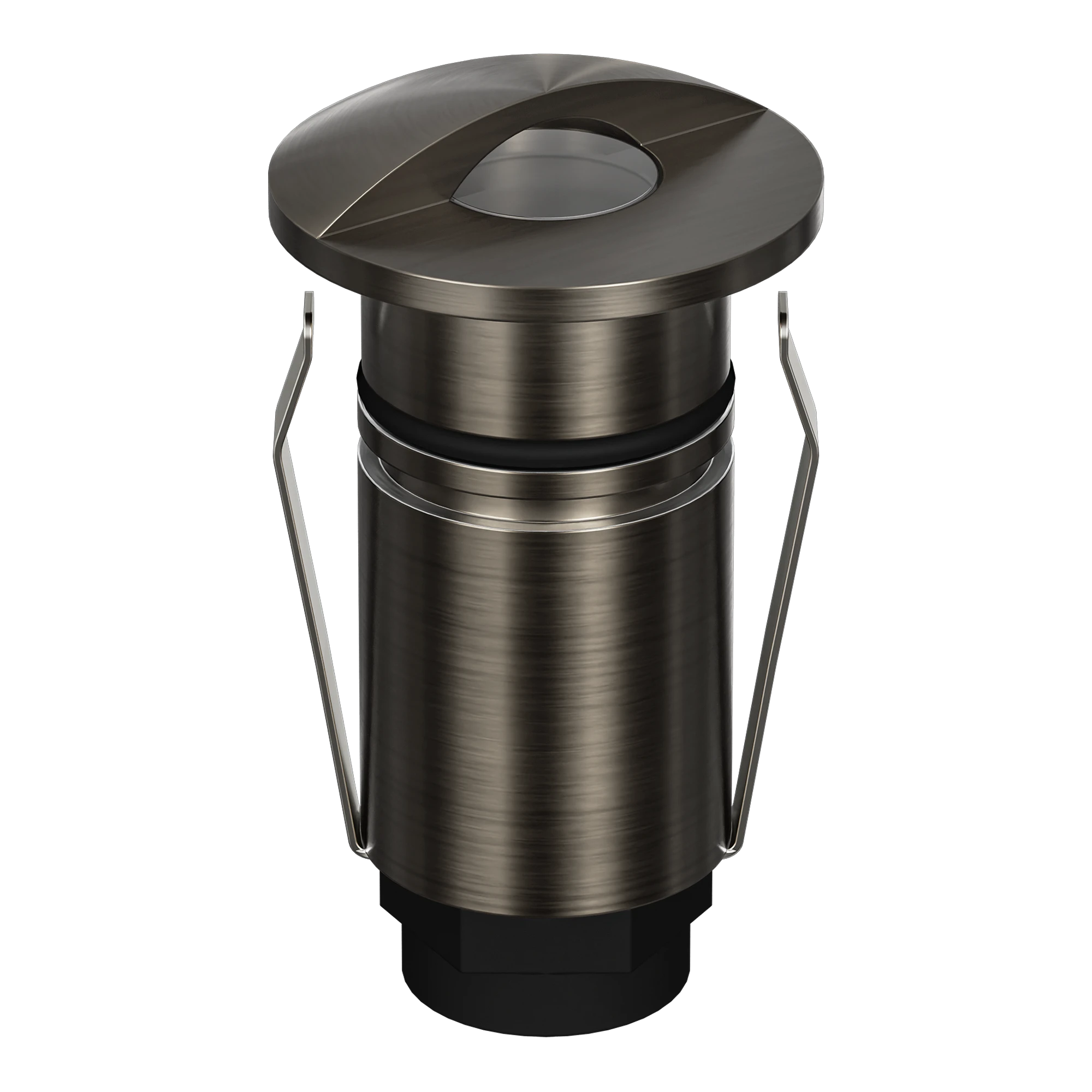

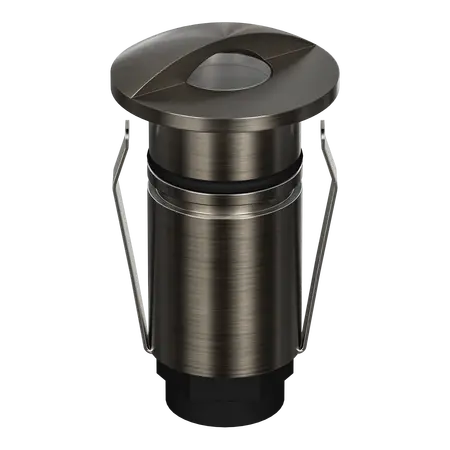

Emit Deck Light 25mm Tri-Colour 12/24V Eyelid Antique Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 Eyelid Inground Light, Domus Emit 25 LED Deck Light, Antique Brass Mini Inground Light
Technical Specifications
- Variant: Tri-Colour selectable
- Finish: Antique brass
- Wattage: 1W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Dimming: No
- Rated Lifespan: 50,000 hours
- Cutout: 19mm without cannister or 24mm with cannister
- Load Rating: 1500kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm diameter inground and deck light
- Eyelid fascia for directional feature illumination
- Tri-colour selectable output for warm, neutral or cool white lighting
- Antique brass finish for landscape and architectural applications
- IP67 protection for suitable outdoor and inground installations
- IK10 impact rating and 1500kg drive-over load rating
- Optional beam lenses, honeycomb and opal diffuser accessories available
- Requires a compatible 12/24V DC LED driver
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions and AS/NZS 3000 requirements.
Applications
- Residential deck and stair lighting
- Landscape and garden feature lighting
- Pathway and walkway illumination
- Architectural facade and wall-grazing effects
- Outdoor entertaining areas
- Drive-over garden paths and suitable pedestrian areas
Standards & Compliance
- AS/NZS 3000:2018 - Electrical installations and low-voltage lighting installation requirements
- AS/NZS 60598.1:2017 - General requirements and tests for luminaires
Environmental Benefits
- Low 1W LED power consumption supports efficient feature lighting
- 50,000-hour rated lifespan can reduce replacement frequency and product waste
- Metal components and fascia materials may be recyclable at end of service life
- Low-voltage 12/24V DC operation can integrate with efficient LED driver and landscape lighting systems
Warranty Information
5-year replacement warranty as specified for the EMIT-25 Tri-Colour product range, subject to Domus Lighting warranty conditions, licensed electrician installation and adherence to installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; confirm current stock and lead time with the distributor.
