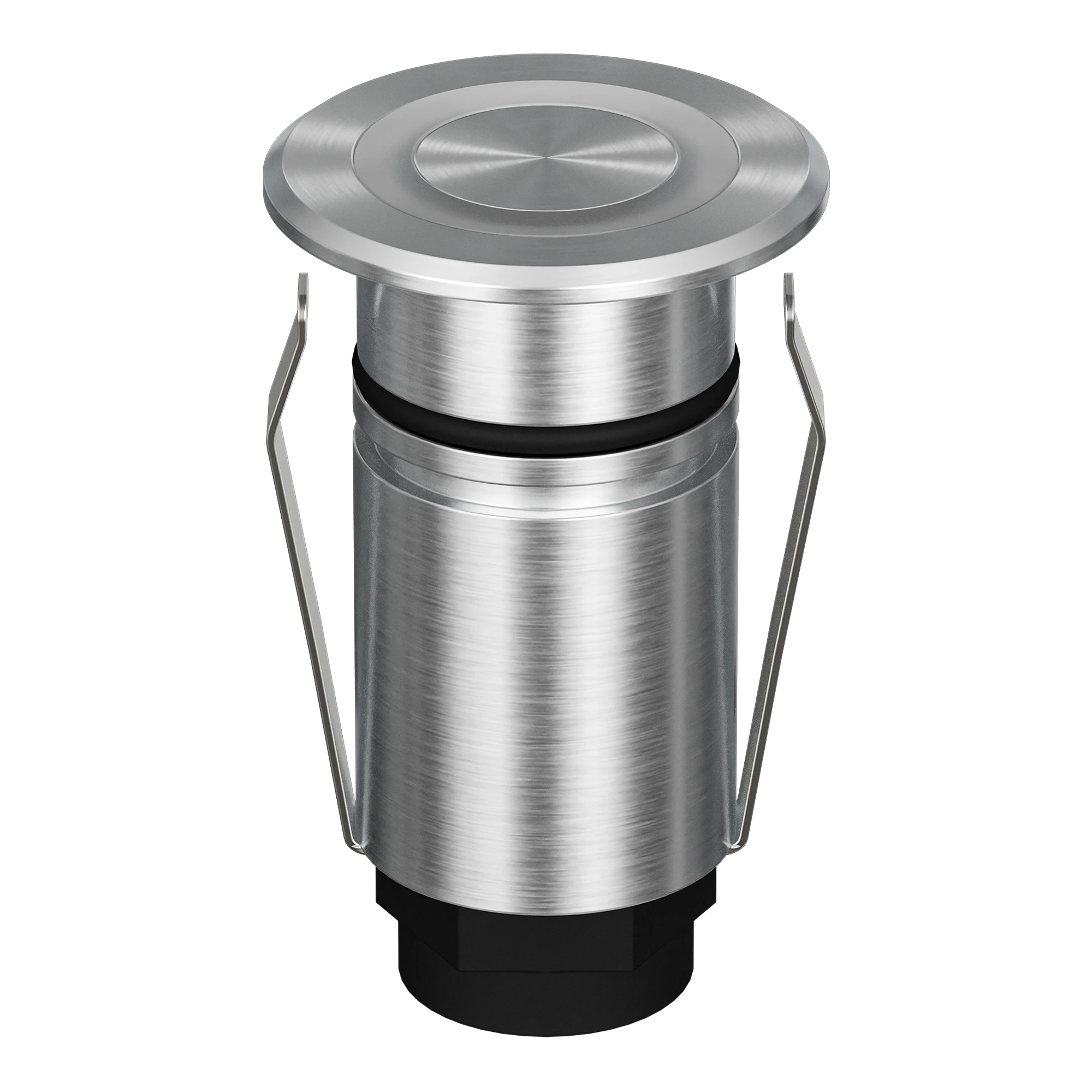

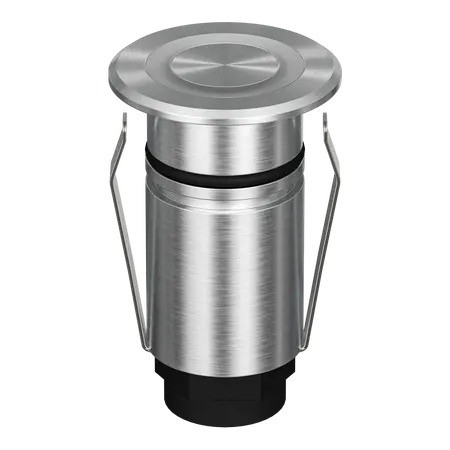

Emit Deck Light 25mm Tri-Colour 12/24V Ring 316 Stainless Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-25-TRIO-STS Ring Inground Light, 25mm LED Deck Light, Tri-Colour Recessed Deck Light, Stainless Steel Inground Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 1W
- Light Source: CREE LED
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 17 lm at 3000K, 4000K and 5500K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- LED Lifespan: 50,000 hours
- Material: 316 stainless steel fascia and body
- Cut-out Diameter: 19mm without canister or 24mm with canister
- Driver Requirement: 12V or 24V constant-voltage LED driver, wired in parallel
- Driver Included: No
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Tri-colour selectable output with 3000K, 4000K and 5500K options
- 316 stainless steel ring fascia for outdoor and coastal applications
- Compact 25mm inground and deck-light format
- 36° standard beam angle for feature and pathway illumination
- IP67-rated construction for outdoor use
- IK10 impact resistance rating
- Optional narrow and wide beam lenses, honeycomb and opal diffuser accessories
- Long LED service life of up to 50,000 hours
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a compatible 12V or 24V DC constant-voltage LED driver, with the driver and low-voltage wiring installed in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
- Residential and commercial deck lighting
- Inground feature lighting
- Pathway and step lighting
- Garden and landscape lighting
- Outdoor architectural and façade highlighting
- Coastal and marine-adjacent outdoor lighting where suitable installation and maintenance conditions are provided
Standards & Compliance
- AS/NZS 60598.1:2017 – applicable general safety requirements for luminaires; verify current edition and product conformity for the installation
- AS/NZS 3000 – applicable requirements for electrical installation, low-voltage wiring and connection of the LED driver
Environmental Benefits
- LED technology provides efficient 1W illumination with lower energy consumption than equivalent halogen feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and waste
- 316 stainless steel is durable and recyclable, supporting extended product service life
- Selectable colour temperature allows lighting output to be matched to the application without replacing the fitting
Warranty Information
5-year replacement warranty. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus Lighting guidelines. Warranty is subject to the manufacturer's current warranty statement and exclusions, including inappropriate IP-rated locations and corrosion caused by installation within 5km of saltwater.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
