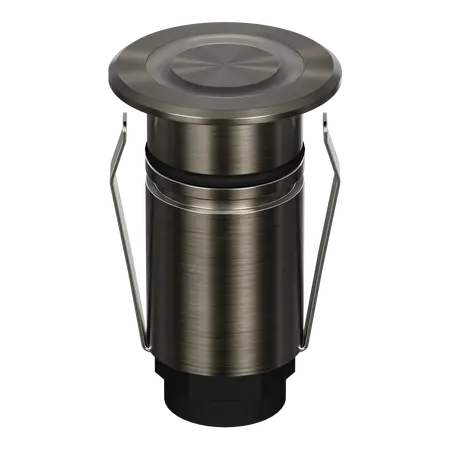

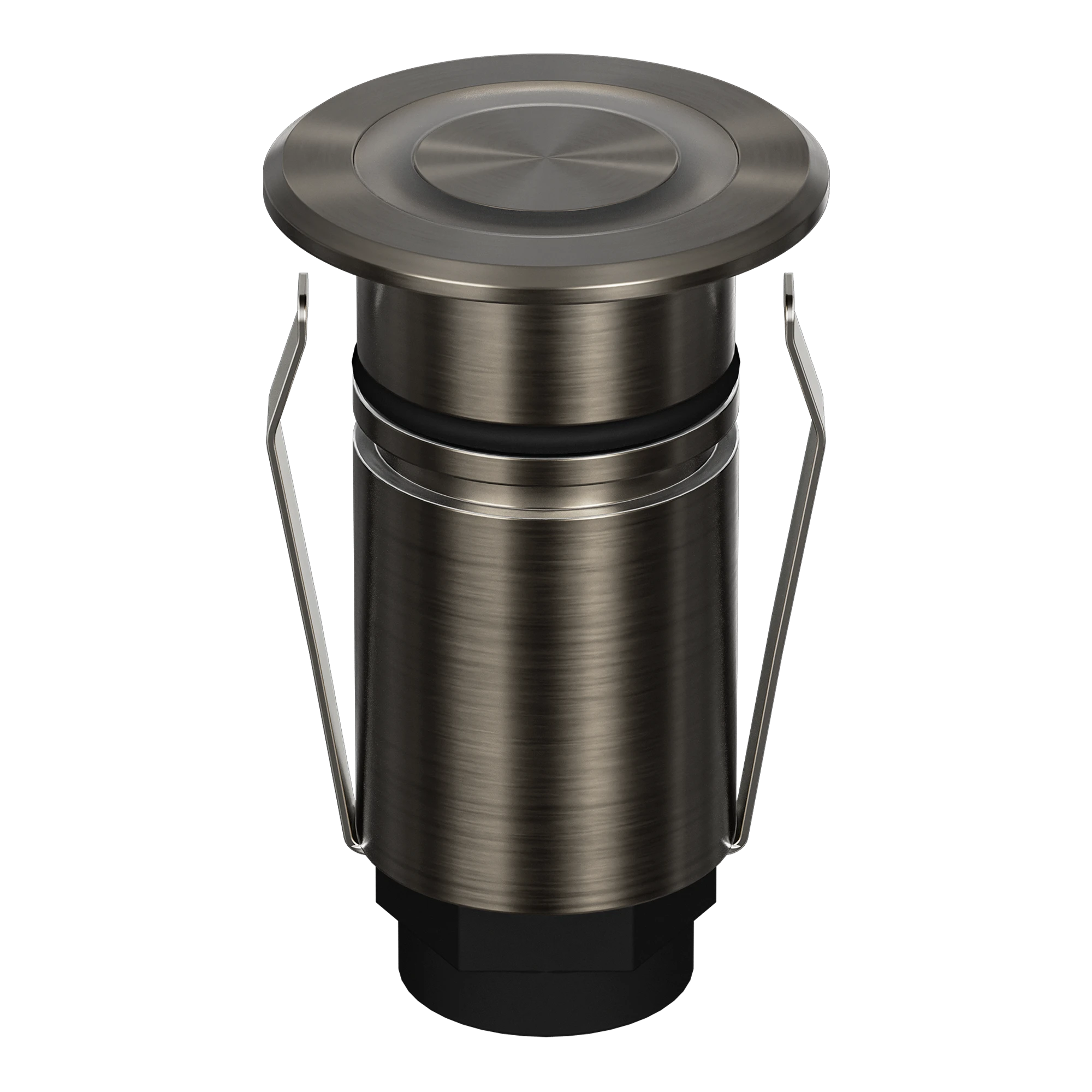

Emit Deck Light 25mm Tri-Colour 12/24V Ring Antique Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-TRIO-AB Ring, Tri-Colour Inground Light, Mini LED Deck Light, Recessed Garden Light
Technical Specifications
- Variant: TRIO tri-colour
- Finish: Antique brass
- Fascia Style: Ring
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 17 lm at each selectable colour temperature
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: Not dimmable
- Lifespan: 50,000 hours
- Driver Requirement: Requires a 12V or 24V DC constant-voltage LED driver, wired in parallel
- Item Number: 10038
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm diameter recessed inground and deck light
- Selectable warm white, neutral white and white colour temperatures
- Antique brass ring fascia for feature and architectural lighting
- IP67 protection for suitable outdoor installations
- IK10 impact rating and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Optional beam lenses, honeycomb and diffuser accessories available
- Low-power 1W LED output with 50,000-hour rated lifespan
- 5-year replacement warranty stated on the product datasheet
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel and install the fitting according to the manufacturer's instructions and applicable electrical installation requirements.
Applications
- Residential deck and step lighting
- Outdoor paths, gardens and landscape features
- Architectural and façade feature lighting
- Drive-over or pedestrian inground lighting where the specified load rating is suitable
- Hospitality, commercial and public-area landscape lighting
Standards & Compliance
- AS/NZS 60598.1:2025 — general safety requirements and tests for luminaires
- AS/NZS 60598.2.1:2014 — particular requirements for fixed general-purpose luminaires, where applicable
- AS/NZS 3000:2018 — electrical installation requirements for associated wiring and driver installation
Environmental Benefits
- Low 1W power consumption supports reduced operating energy use compared with higher-wattage feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Uses a replaceable external constant-voltage driver arrangement, supporting serviceability
- LED technology produces efficient low-level feature illumination with minimal heat output
Warranty Information
5-year replacement warranty stated by Domus Lighting for the Emit product range and datasheet. Warranty eligibility requires licensed-electrician installation, compliance with installation instructions and proof of purchase; applicable residential and commercial terms should be confirmed with Domus.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock levels.
