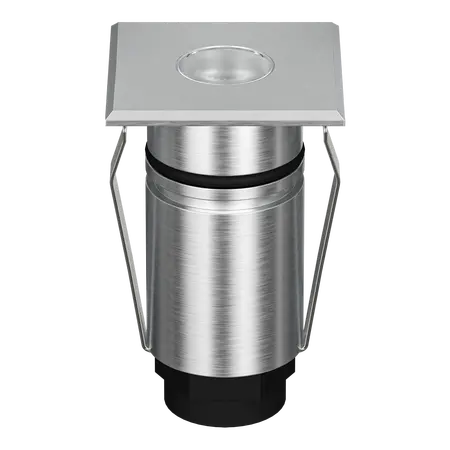

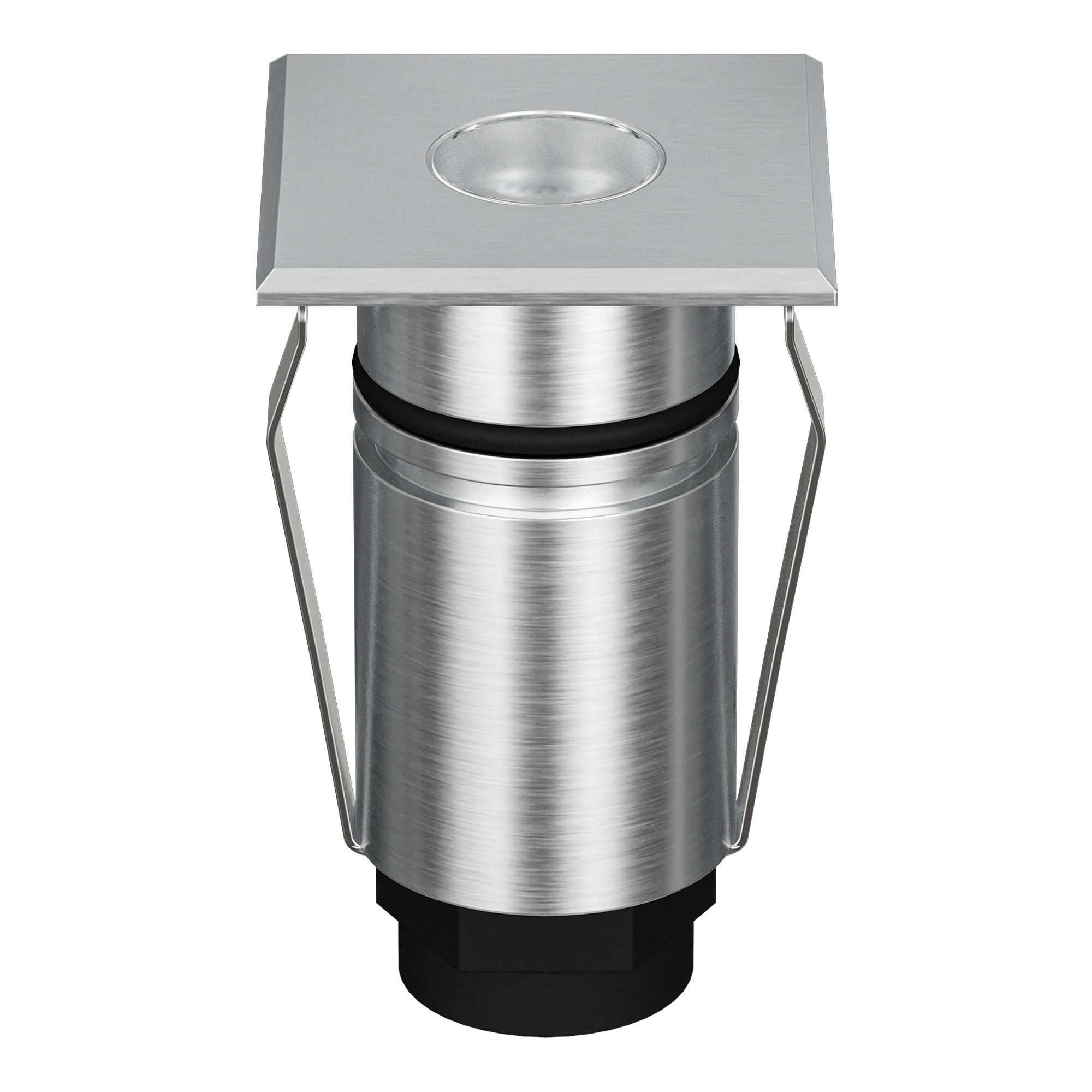

Emit Deck Light 25mm Tri-Colour Square Open 316 Stainless Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-TRIO-STS, Emit 25 Square Open Inground Light, 25mm LED Deck Light, Micro Inground Light
Technical Specifications
- Light Source: 1W CREE LED
- Variant: Tri-colour selectable
- Colour Temperature: 3000K, 4000K and 5500K
- Luminous Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Input Voltage: 12/24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- LED Lifespan: 50,000 hours
- Material: 316 stainless steel fascia and body
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Cutout: 19mm without cannister or 24mm with cannister
- Dimensions (H x L x W): 39mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Square open fascia for discreet deck, step and inground lighting
- 316 stainless steel construction for outdoor durability
- Compact 25mm format with 1W LED output
- IP67-rated protection against dust and temporary water immersion
- IK10 impact rating and 1500kg drive-over load rating
- Optional beam lenses, honeycomb, linear lens and opal diffuser available
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician using a compatible 12V or 24V DC constant-voltage LED driver. Follow the manufacturer's installation instructions and AS/NZS 3000 requirements for the low-voltage installation.
Applications
- Residential deck and patio lighting
- Outdoor steps, pathways and stairways
- Landscape and garden feature lighting
- Architectural façade and feature illumination
- Drive-over inground lighting in suitable outdoor areas
Standards & Compliance
- AS/NZS 60598.1:2025 – general safety requirements and tests for luminaires
- AS/NZS 3000:2018 – electrical installation requirements for low-voltage lighting systems
Environmental Benefits
- Low 1W LED power consumption supports energy-efficient feature lighting
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- Durable 316 stainless steel construction supports extended service life
- Stainless steel components are recyclable at end of product life
Warranty Information
5-year replacement warranty. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
