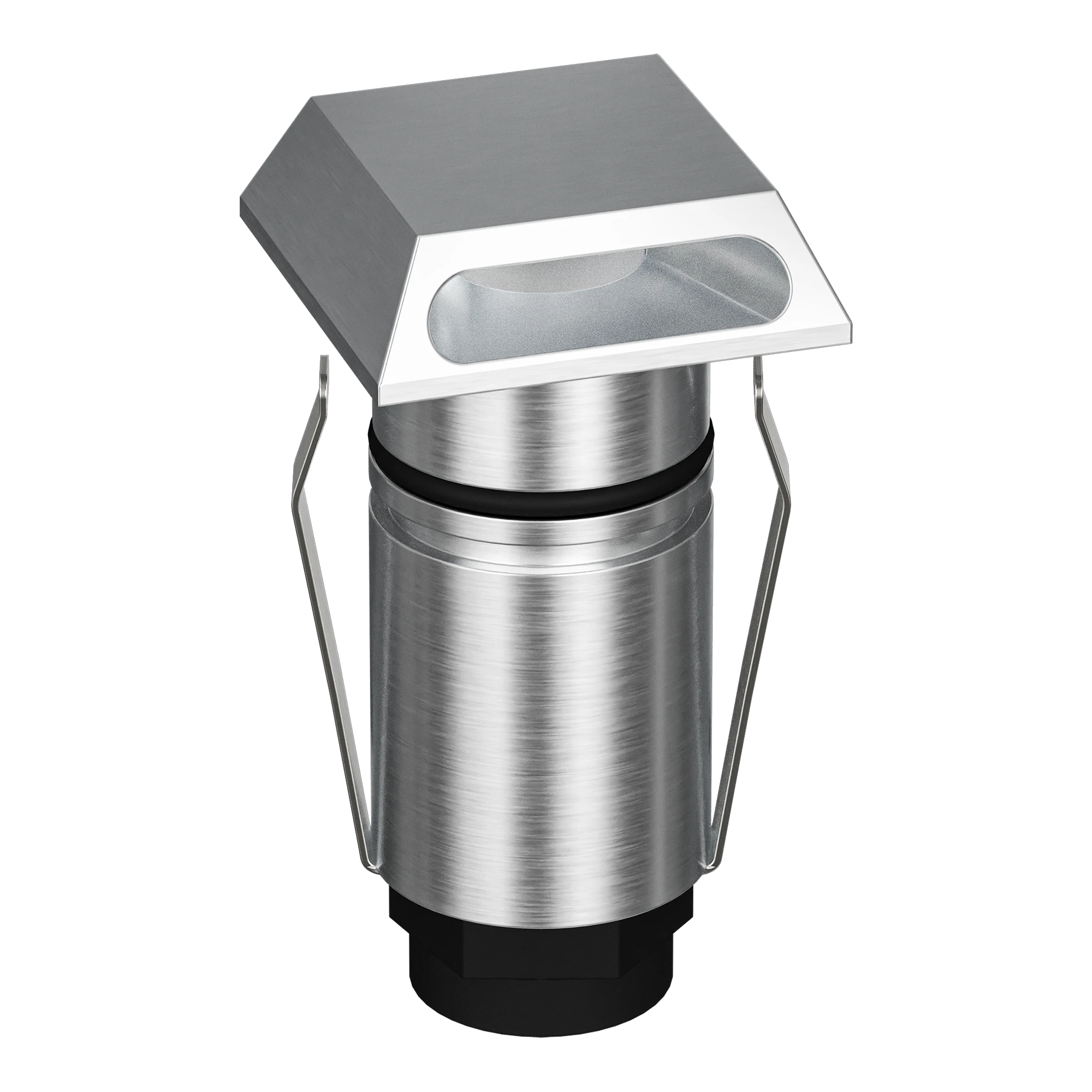

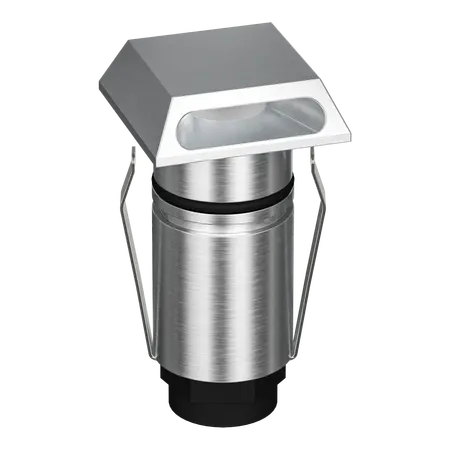

Emit Deck Light 25mm Tri-Colour Square Slot 316 Stainless Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25 Tri-Colour Inground Light, 25mm LED Deck Light, Mini Inground Light, Stainless Steel LED Decklight
Technical Specifications
- Light Type: LED inground and deck light
- Variant: Tri-colour selectable
- Material: 316 stainless steel
- Fascia Style: Square slot
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Lumen Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Colour Rendering Index: ≥90
- LED Type: CREE
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 19mm without cannister or 24mm with cannister
- Driver Requirement: Requires a separate 12V or 24V DC constant-voltage LED driver; wire in parallel
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.3 kg
Key Features
- Compact 25mm mini inground light for discreet deck and architectural illumination
- Square slot fascia in 316 stainless steel
- Tri-colour selection between warm white, neutral white and white
- Suitable for 12V and 24V DC constant-voltage LED drivers
- IP67-rated construction for protected outdoor and inground applications
- IK10 impact rating
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and diffuser accessories available
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and ensure outdoor cable joints and waterproofing are correctly installed.
Applications
- Residential deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural and façade accent lighting
- Outdoor inground lighting
- Low-voltage hospitality and commercial lighting installations
Standards & Compliance
- AS/NZS 60598.1:2017 - General requirements and tests for luminaires
Environmental Benefits
- Low 1W power consumption reduces energy use compared with higher-wattage feature lighting
- LED technology provides a long rated lifespan of up to 50,000 hours, reducing replacement frequency and waste
- Stainless steel construction supports product longevity in suitable outdoor environments
- Low-voltage 12V/24V DC operation can be integrated with efficient extra-low-voltage lighting systems
Warranty Information
Domus Lighting warranty policy provides a 3-year replacement warranty for residential exterior deck and inground lights and a 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
