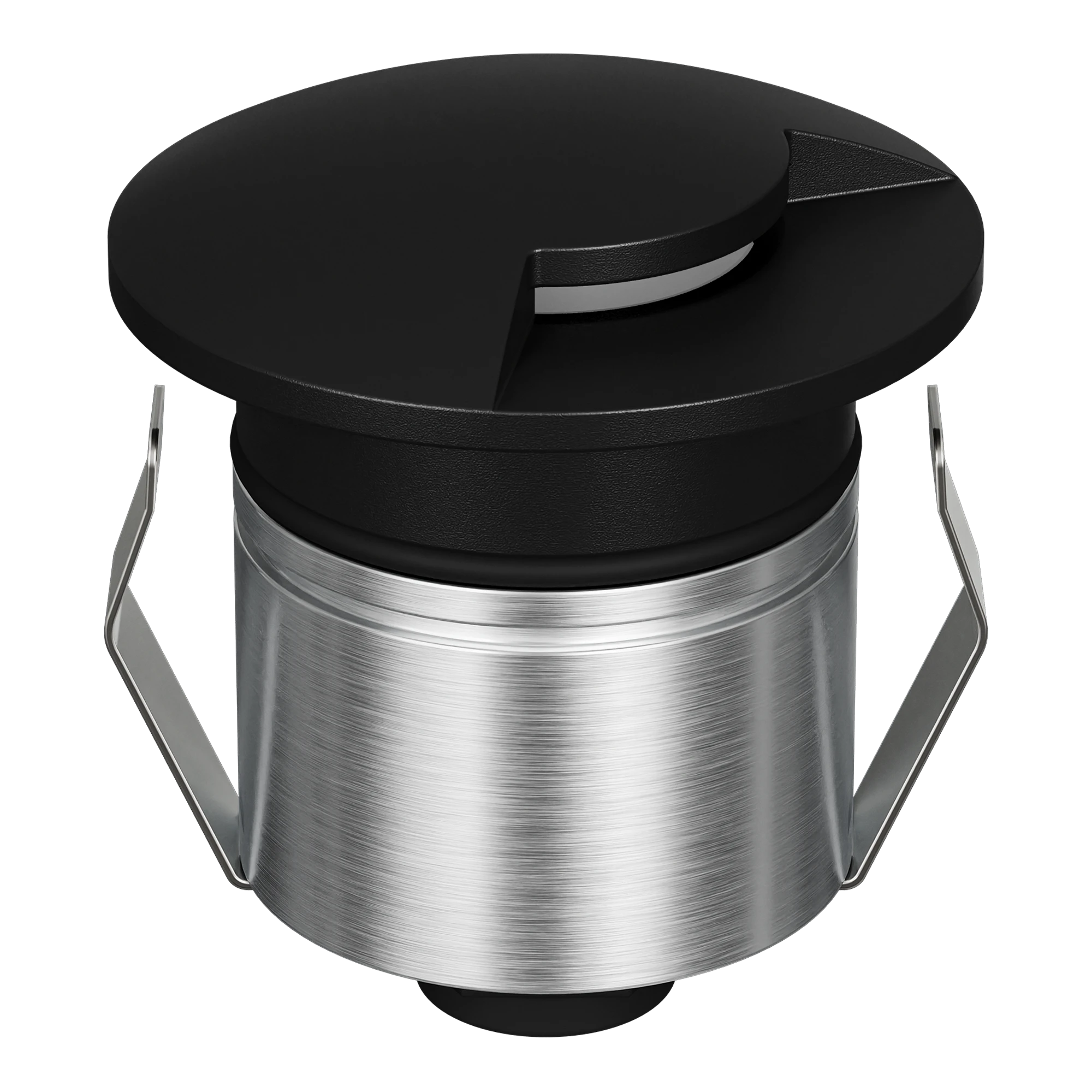

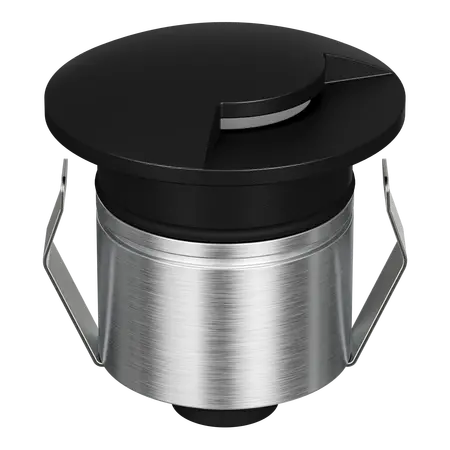

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V 1-Way Black Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, 1-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 55 1-Way LED Inground Light, Tri-Colour LED Deck Light, Recessed LED Step Light, Domus EMIT-55-TRIO-BLK
Technical Specifications
- Power: 2.5W
- Input Voltage: 12/24V DC
- Light Source: CREE LED
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; 19° and 60° optional lenses available
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Cutout Diameter: 43mm without cannister; 48mm with cannister
- Load Rating: 1500kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Fascia: 1-way
- Finish: Black
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.2 kg
Key Features
- Selectable tri-colour output with 3000K, 4000K and 5500K settings
- Compact 55mm recessed deck and inground light format
- 36° standard beam angle for focused feature lighting
- IP67 construction for suitable outdoor and inground applications
- IK10 impact rating and 1500kg drive-over load rating
- High colour rendering with CRI ≥90
- Requires a separate 12/24V DC constant-voltage LED driver
- Optional beam lenses, honeycomb, linear lens and opal diffuser accessories available
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a suitable 12/24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions. The driver and low-voltage wiring must be selected and installed for the intended outdoor or inground environment.
Applications
- Deck and patio lighting
- Outdoor feature and accent lighting
- Inground landscape lighting
- Pathway and garden lighting
- Stair and step lighting
- Architectural and driveway lighting
Standards & Compliance
- AS/NZS 60598.1: Luminaires - general requirements and tests, applicable to the luminaire installation and assessment
- AS/NZS 60598.2.23:2021: Extra-low-voltage lighting systems for ELV light sources, relevant to compatible ELV lighting system applications
- AS/NZS 3000:2018: Electrical installations, relevant to the installation of the driver and associated wiring
Environmental Benefits
- Low 2.5W LED power consumption helps reduce operating energy use compared with higher-wattage conventional lighting
- Long stated LED lifespan of 50,000 hours can reduce replacement frequency and material waste
- Selectable colour temperature allows the light output to be matched to the application without replacing the fitting
- Aluminium and metal components can be recovered through appropriate metal recycling streams at end of life
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55 series, subject to the manufacturer's warranty terms. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with the manufacturer's instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
