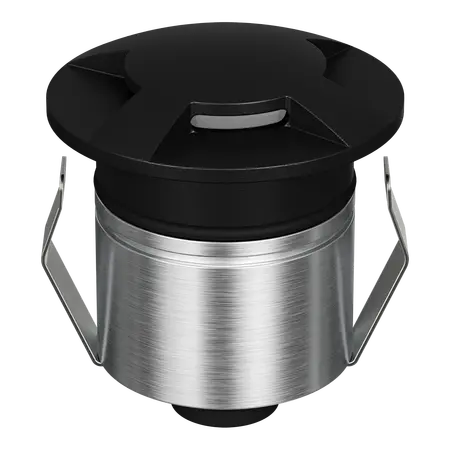

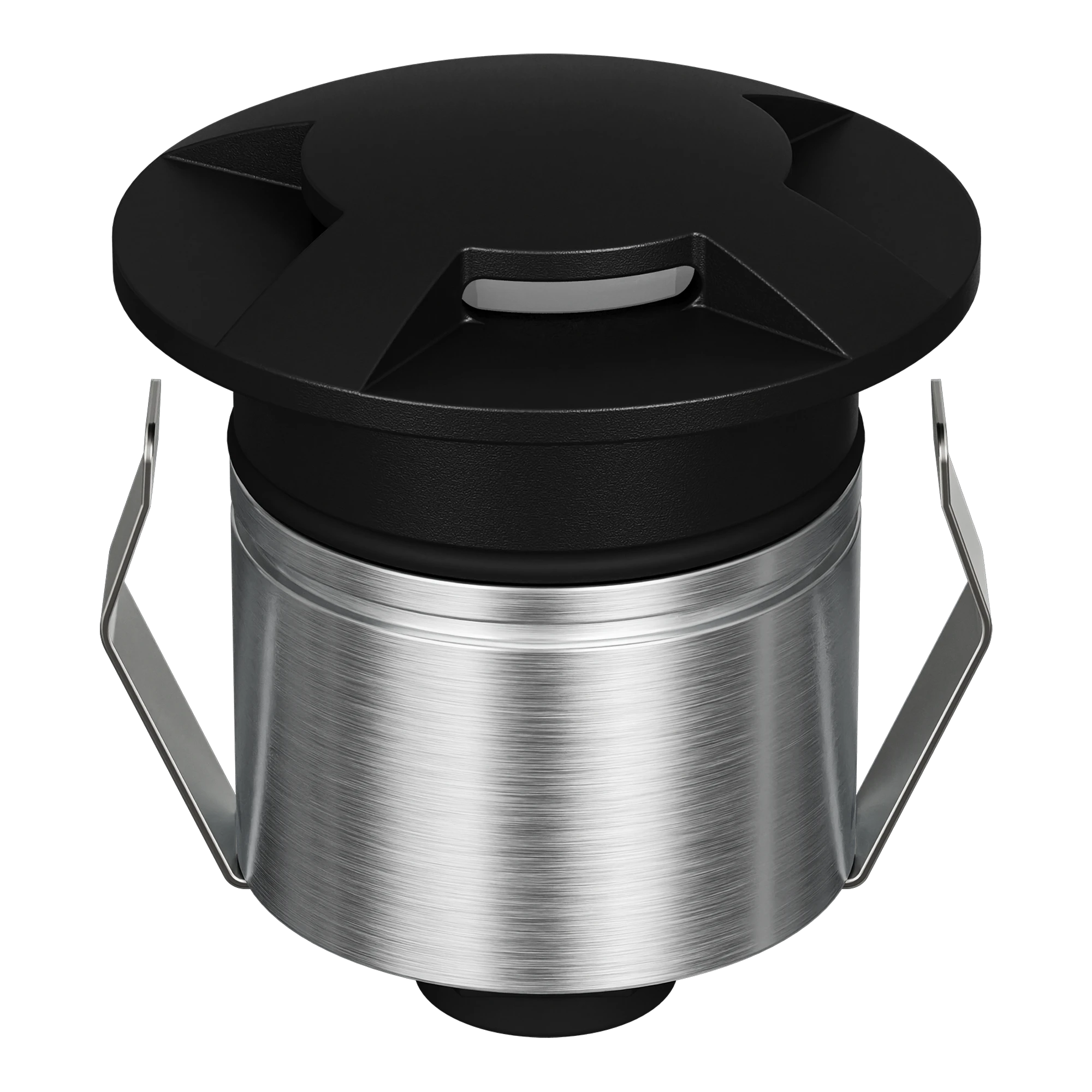

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V 3-Way Black Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 55 Tri-Colour Inground Light, 55mm LED Deck Light, 3-Way Recessed Step Light, Mini Inground Light
Technical Specifications
- Light Type: Tri-colour LED inground and deck light
- Wattage: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- CRI: ≥90
- IP Rating: IP67
- IK Rating: IK10
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Cutout Diameter: 43mm without cannister; 48mm with cannister
- Drive-Over Load Rating: Up to 1,500kg
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Finish: Black
- Fascia: 3-way
- Class: Class III
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Compact 55mm fascia for discreet deck, step and inground installations
- Three-way fascia distributes light in multiple directions
- 36° beam angle supplied as standard
- IP67 protection for outdoor and inground applications
- IK10 impact resistance and drive-over rating up to 1,500kg
- Optional narrow, medium, 19° and 60° beam lenses available
- Compatible with optional honeycomb and opal diffusers
- Low-voltage DC operation
- Requires a separate compatible LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, follow the manufacturer's installation instructions and ensure the fitting is installed in accordance with AS/NZS 3000 and its IP rating.
Applications
- Residential and commercial deck lighting
- Outdoor stairs and step lighting
- Pathway and garden lighting
- Landscape feature lighting
- Architectural accent lighting
- Inground and drive-over lighting applications
Standards & Compliance
- AS/NZS 3000: applicable wiring and installation requirements for low-voltage electrical installations
- AS/NZS 60598.1: applicable general safety requirements for luminaires
Environmental Benefits
- Low 2.5W LED power consumption can reduce operating energy compared with higher-wattage conventional lighting
- Long stated LED lifespan of 50,000 hours can reduce replacement frequency and product waste
- Low-voltage 12/24V DC operation supports efficient extra-low-voltage lighting systems
Warranty Information
5-year replacement warranty as specified by Domus Lighting, subject to the manufacturer's warranty terms, approved installation requirements and licensed electrician installation.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
