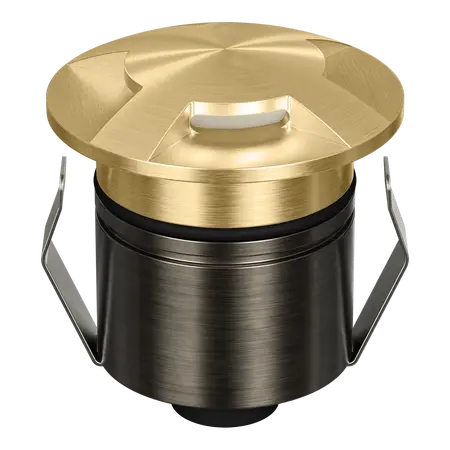

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V 3-Way Brass Domus

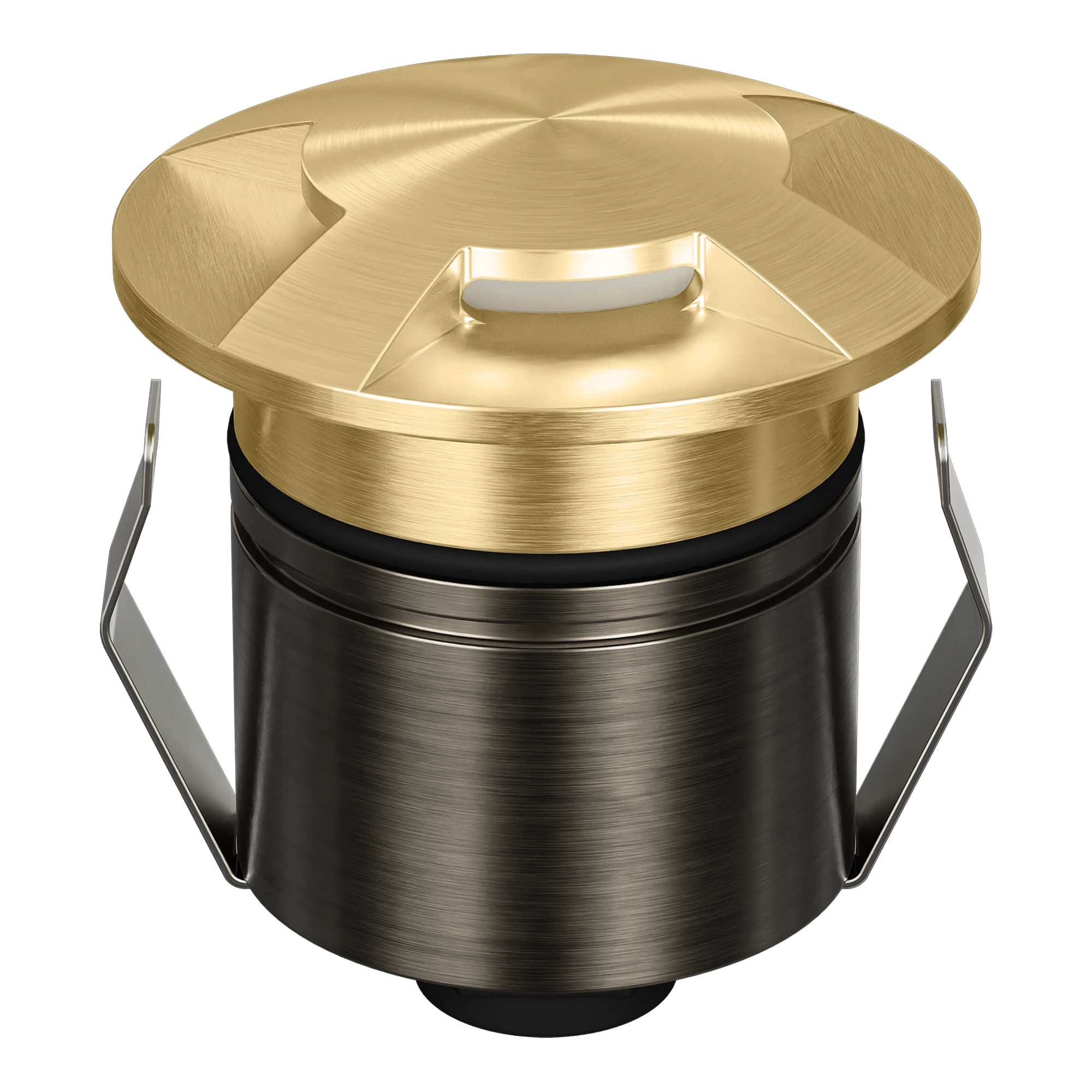

Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-BRS, Emit 55 3-Way Inground Light, Brass Recessed Deck Light, Tri-Colour Inground Light
Technical Specifications
- Variant: TRIO tri-colour
- Finish: Brushed brass with brass body
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Beam Angle: 36° standard; 19° and 60° options available
- CRI: ≥90
- LED Type: CREE
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Rating: Up to 1500kg
- Lifespan: 50,000 hours
- Cutout Diameter: 43mm without canister or 48mm with canister
- Driver Requirement: 12V or 24V DC LED constant-voltage driver, wired in parallel
- Application: Recessed deck and inground lighting
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Three selectable colour temperatures: 3000K, 4000K and 5500K
- Three-way brass fascia for directional feature lighting
- Compact 55mm overall diameter
- IP67-rated construction for outdoor and inground applications
- IK10 impact protection and drive-over suitability
- 36° standard beam angle with optional 19° and 60° lenses
- Compatible with optional honeycomb, linear lens and opal diffuser accessories
- Low 2.5W LED power consumption
- No dimming required
Professional Installation Requirements
- Installation must be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect the fitting before energising the driver, and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential deck and garden lighting
- Pathway and stair lighting
- Landscape feature lighting
- Architectural accent lighting
- Outdoor inground lighting
- Drive-over areas requiring low-profile luminaires
Standards & Compliance
- Applicable luminaire safety requirements: AS/NZS 60598.1
- Electrical installation should comply with AS/NZS 3000:2018
Environmental Benefits
- Low 2.5W LED load can reduce energy consumption compared with higher-wattage feature lighting
- LED source has a published 50,000-hour lifespan, reducing replacement frequency and waste
- Brass construction is durable and recyclable at end of service life
- Selectable colour temperature supports task-appropriate lighting without replacing the fitting
Warranty Information
5-year replacement warranty. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus Lighting guidelines. Removal and reinstallation costs are not generally covered under the standard replacement warranty.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
