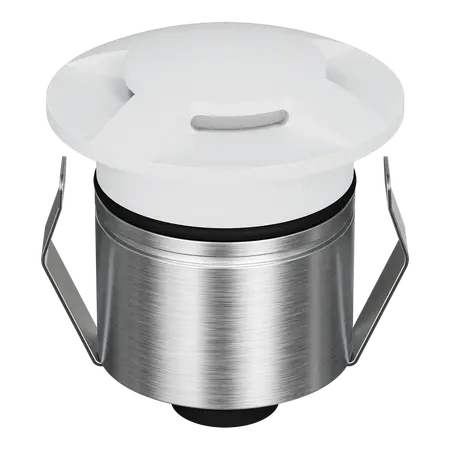

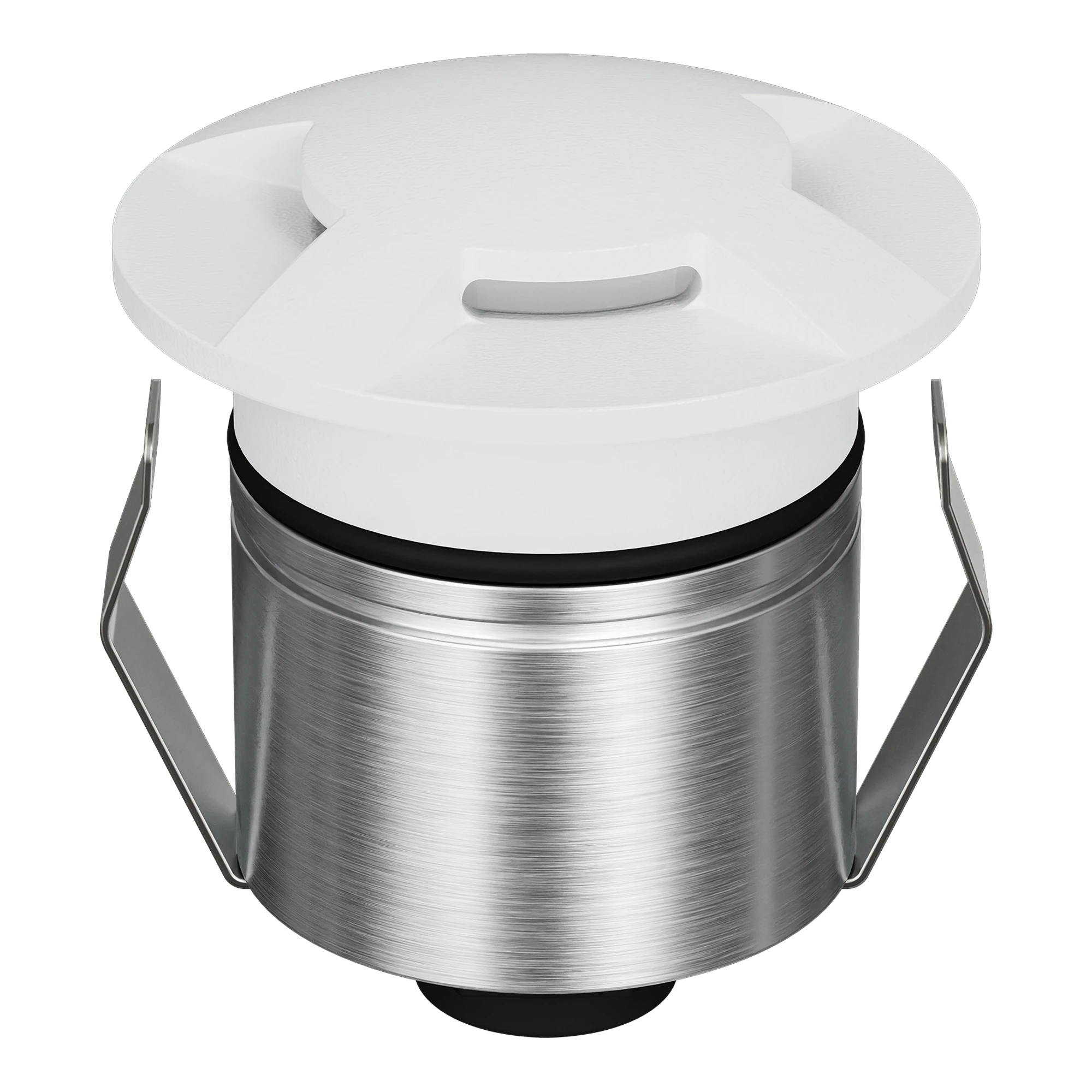

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V 3-Way White Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-WHT, Domus Emit 55mm Inground Light, Tri-Colour Recessed Deck Light, 3-Way Inground Light
Technical Specifications
- Model: EMIT-55-TRIO-WHT
- Variant: 3-Way fascia
- Light Source: Integrated CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Lumen Output: Approximately 4 lm for the 3-Way fascia
- Colour Rendering Index: CRI ≥90
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- LED Life: 50,000 hours
- Classification: Class III
- Driver Requirement: 12V or 24V DC LED constant-voltage driver, wired in parallel
- Cut-Out Diameter: 43 mm without cannister; 48 mm with cannister
- Finish: White
- Load Rating: Up to 1500 kg drive-over, subject to correct installation
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Three-way fascia distributes light through three directional apertures
- Compact 55 mm architectural deck and inground light
- 36° beam angle supplied as standard
- IP67 protection for outdoor and ground-level applications
- IK10 impact resistance
- High-colour-rendering LED with CRI of at least 90
- Compatible with optional beam-angle lenses, honeycomb and diffuser accessories
- Requires a separate 12V or 24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver, with the driver and luminaire wiring installed in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Outdoor stair and pathway lighting
- Landscape and garden feature lighting
- Inground architectural accent lighting
- Drive-over or ground-level feature lighting where correctly installed
Standards & Compliance
- AS/NZS 60598.2.2:2016, including applicable amendments, for recessed luminaires
- AS/NZS 3000:2018 for electrical installation and wiring requirements
Environmental Benefits
- Low 2.5W LED power consumption supports reduced energy use compared with higher-wattage conventional lighting
- Selectable colour temperature helps avoid replacing fittings when lighting requirements change
- 50,000-hour LED life can reduce replacement frequency and associated waste
- IP67 and IK10 construction supports extended service life in outdoor applications
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55 range, subject to the manufacturer's warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
