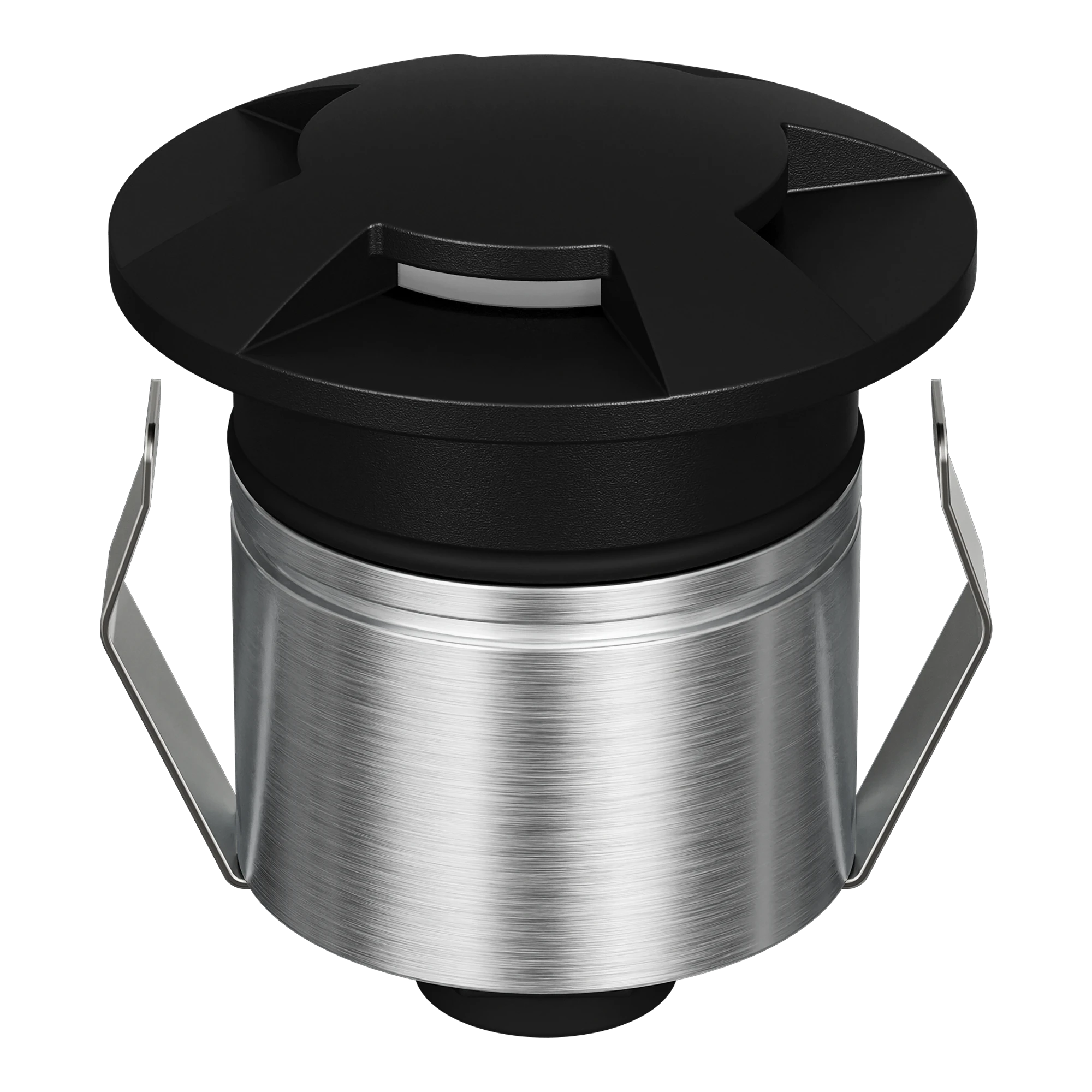

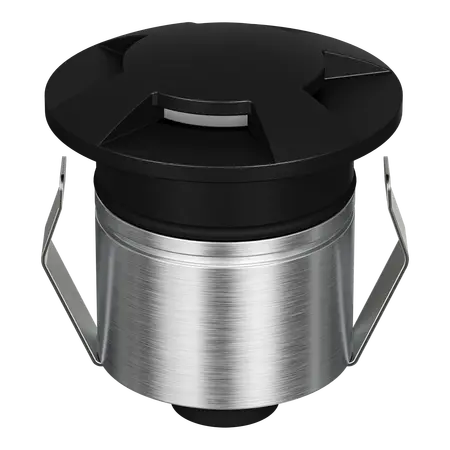

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V 4-Way Black Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55 4-Way Deck Light, 55mm LED Inground Light, Tri-Colour LED Decklight, Multiway Inground Light
Technical Specifications
- Product Type: Recessed inground and deck light
- Variant: Tri-Colour
- Fascia Style: 4-way
- Finish Colour: Black
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- Rated Life: 50,000 hours
- Driver Requirement: Requires a compatible 12/24V DC LED driver; wire fittings in parallel
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.2 kg
Key Features
- Compact 55mm recessed design for deck, pathway, stair and landscape lighting
- Four-way fascia distributes light in four directions
- Selectable warm white, neutral white and cool white colour temperatures
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance rating
- Compatible with optional beam angle lenses, honeycomb and diffuser accessories
- Low 2.5W power consumption
- Requires a separate constant-voltage LED driver
Professional Installation Requirements
- Installation and connection to the LED driver should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical requirements. Use only a compatible 12/24V DC constant-voltage driver.
Applications
- Residential deck and outdoor entertaining areas
- Landscape and garden feature lighting
- Pathway and stair illumination
- Driveway and architectural accent lighting
- Recessed inground lighting in suitable paved or landscaped surfaces
Standards & Compliance
- AS/NZS 60598.1:2017 - Luminaires, Part 1: General requirements and tests
- AS/NZS 60598.2.2:2016 - Particular requirements for recessed luminaires
Environmental Benefits
- Low 2.5W LED power consumption can reduce operating energy compared with higher-wattage conventional lighting
- LED source life of approximately 50,000 hours can reduce replacement frequency and material waste
- IP67 and IK10 construction can support longer service life in suitable outdoor installations
- Efficient LED operation produces useful light output with low installed wattage
Warranty Information
5-year replacement warranty as specified for the EMIT-55 product range. Warranty eligibility requires installation by a licensed electrician and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
