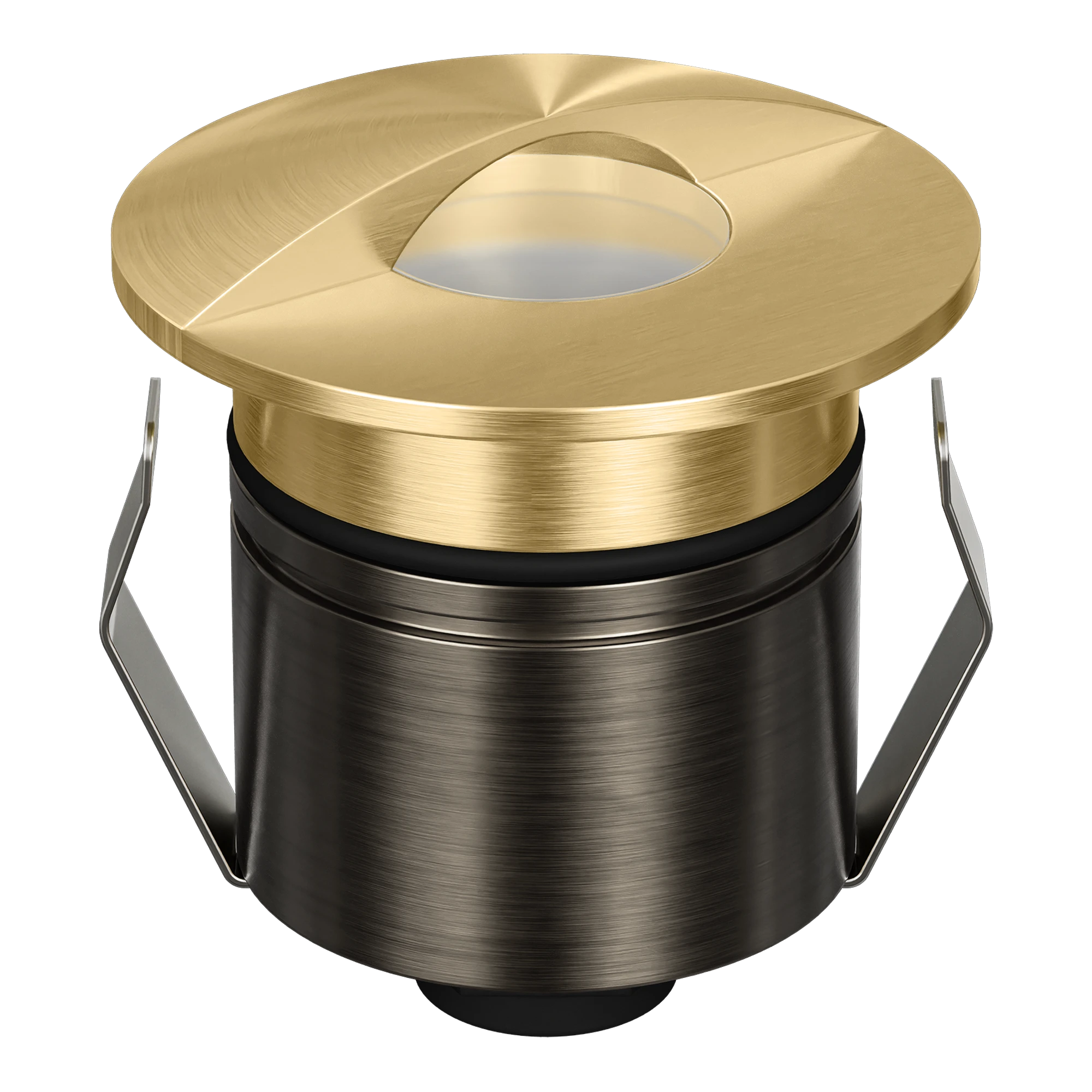

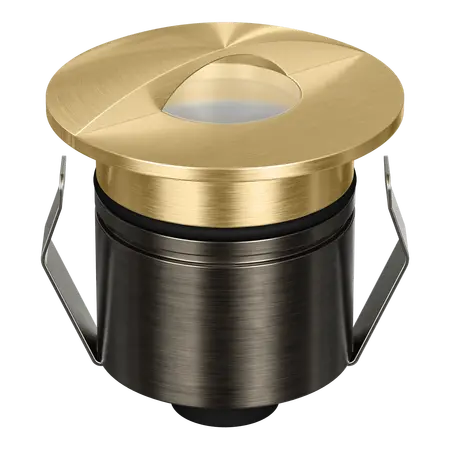

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V Eyelid Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-EYE, Emit 55 Eyelid Inground Light, Brass LED Deck Light, Tri-Colour Inground Light
Technical Specifications
- Variant: TRIO tri-colour selectable
- Material/Finish: Brass
- Wattage: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Output: 80 lm at 3000K, 85 lm at 4000K, 88 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- CRI: ≥90
- LED Type: CREE
- Ingress Protection: IP67
- Impact Rating: IK10
- Drive-Over Load Rating: 1500 kg
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout Diameter: 43 mm without cannister; 48 mm with cannister
- Wiring: Connect in parallel to a 12/24V DC constant-voltage LED driver
- Electrical Classification: Class III
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Eyelid fascia for directional light distribution
- Selectable warm white, neutral white and cool white colour temperatures
- Compact 55 mm overall diameter for discreet deck and inground installation
- IP67-rated construction for outdoor and ground-level applications
- IK10 impact rating and 1500 kg drive-over load rating
- Brass metalware finish suited to landscape and architectural lighting
- Optional beam-angle lenses, honeycomb and diffuser accessories available
- Requires a compatible 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect the fitting to a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000 requirements where applicable.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over inground lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2025 is the applicable Australian/New Zealand general luminaire safety standard; product-specific conformity documentation was not stated on the sourced Domus product page.
- Installation wiring should comply with AS/NZS 3000:2018 and applicable amendments.
Environmental Benefits
- Low 2.5W power consumption supports reduced operating energy use compared with higher-wattage decorative lighting.
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste.
- Brass components are recyclable at end of service life.
- 12/24V DC Class III operation supports separation from mains voltage at the luminaire when used with a suitable driver.
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55 series, subject to the manufacturer's warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions; commercial warranty terms may differ.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
