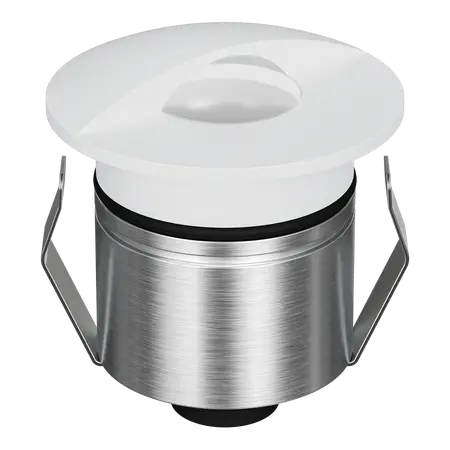

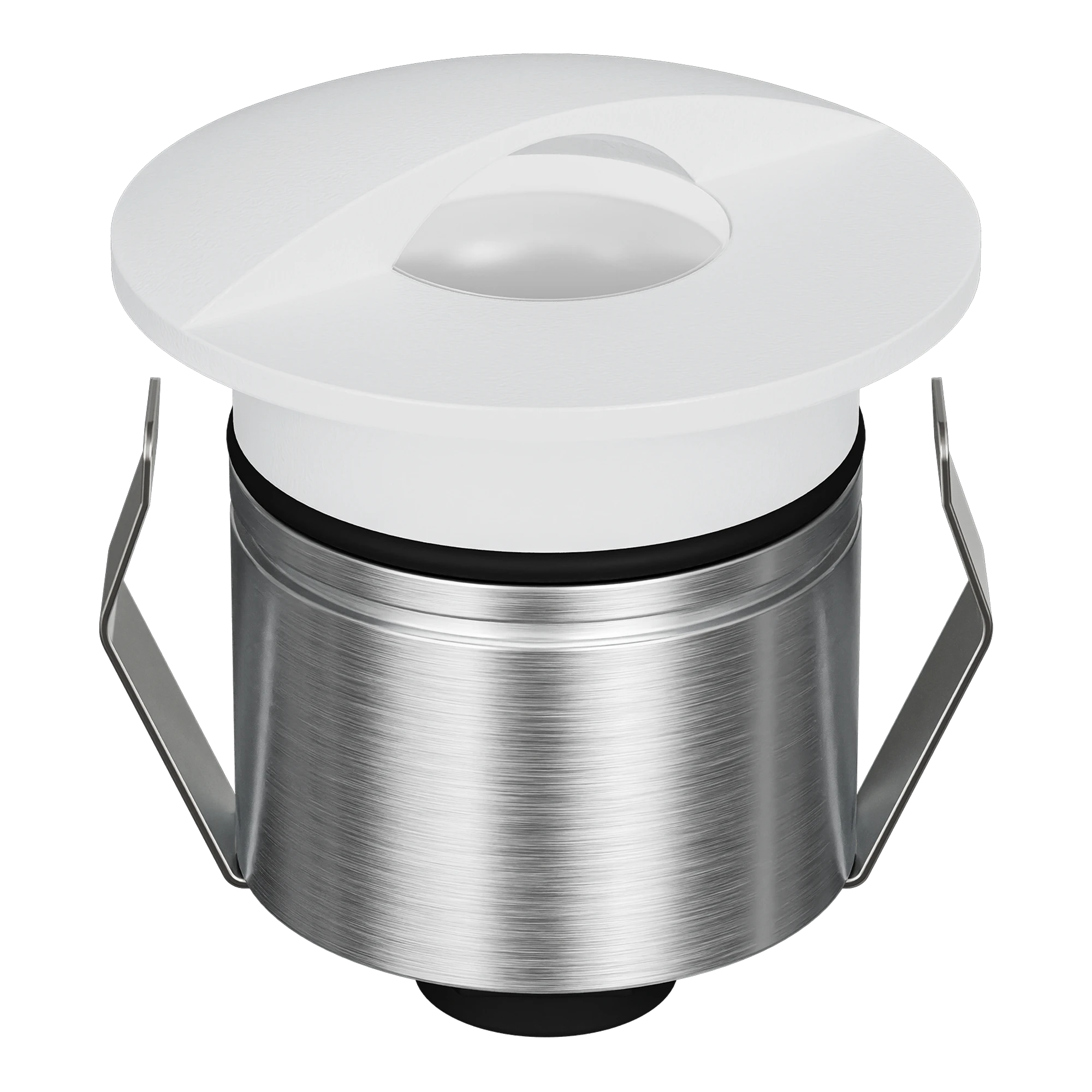

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V Eyelid White Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-55-TRIO-WHT, Domus Emit 55 Eyelid Deck Light, 55mm LED Inground Light, Tri-Colour LED Deck Light
Technical Specifications
- Light Source: Integrated CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Flux: 80 lm at 3000K, 85 lm at 4000K, 88 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: Not dimmable
- LED Life: 50,000 hours
- Cutout: 43 mm without cannister or 48 mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Finish: White eyelid fascia
- Dimensions (H x L x W): 82mm x 82mm x 55mm
- Weight: 0.3 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Compact 55mm eyelid fascia for subtle directional illumination
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500kg drive-over load rating
- 36° beam supplied as standard, with optional beam-angle lenses
- High colour rendering with CRI ≥90
- Long-rated 50,000-hour LED lifespan
- Requires a separate 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation and connection should be completed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, connect fittings in parallel, and follow the manufacturer's installation instructions and applicable wiring requirements.
Applications
- Residential deck and step lighting
- Outdoor pathways and garden features
- Landscape and architectural accent lighting
- Inground feature illumination
- Drive-over areas requiring low-profile lighting
- Stair and pathway edge lighting
Standards & Compliance
- AS/NZS 60598.1:2025 - Luminaires, general requirements and tests
- AS/NZS 3000 - Wiring Rules for the associated electrical installation
Environmental Benefits
- Low 2.5W LED power consumption supports reduced operating energy use
- 50,000-hour rated LED life can reduce replacement frequency and material waste
- LED technology provides efficient illumination compared with traditional halogen deck lights
- Replaceable driver arrangement can support servicing and extend system life
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55 series. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation instructions; warranty terms may vary by application and are subject to Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
