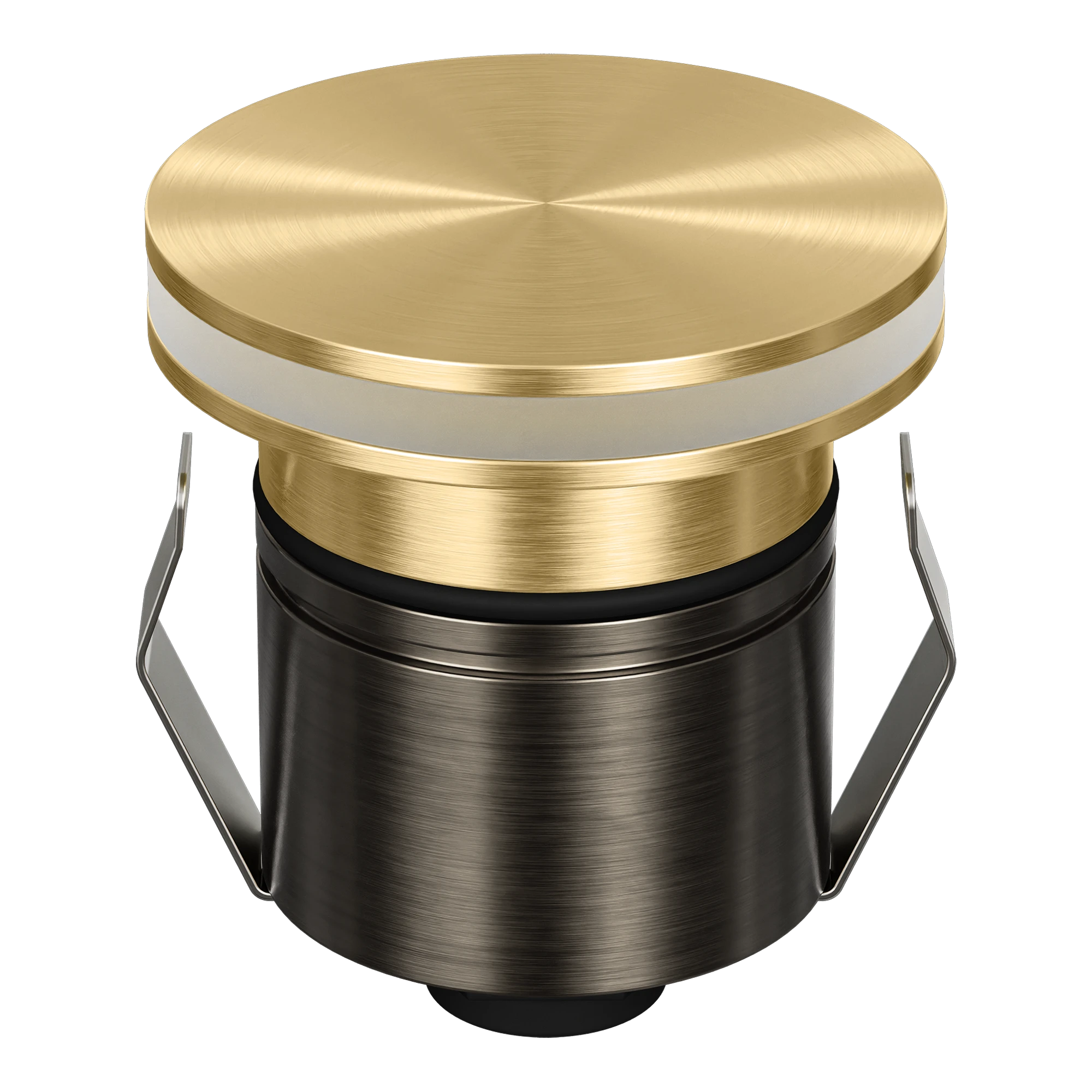

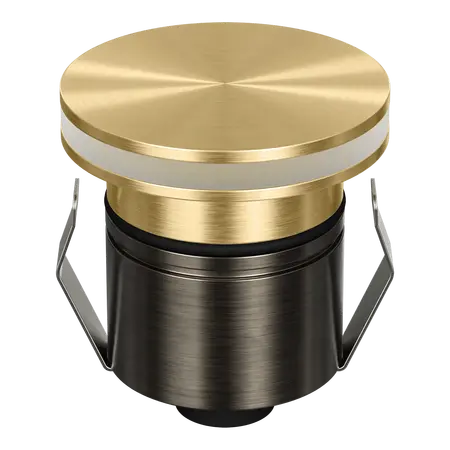

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V Halo Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, halo fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-HALO-BRS, Emit 55 Halo Inground Light, Tri-Colour LED Deck Light, Brass Recessed Deck Light
Technical Specifications
- Wattage: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Light Output: 22 lm at 3000K, 4000K and 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- Lifespan: 50,000 hours
- Cut-out Diameter: 43mm without cannister; 48mm with cannister
- Material: Brass
- Finish: Brass
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Driver Compatibility: Compatible with AC/DC driver; Domus DC driver recommended
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.45 kg
Key Features
- Halo fascia for soft perimeter illumination
- Tri-colour selection between warm white, neutral white and white
- Compact 55mm overall diameter for deck, step and inground lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance rating
- 36° beam angle supplied as standard
- Optional lens, honeycomb and diffuser accessories available
- Low-voltage 12/24V DC operation
- Integral LED light source with no lamp replacement required
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel and follow the manufacturer's installation instructions and applicable wiring requirements.
Applications
- Residential and commercial deck lighting
- Outdoor step and stair lighting
- Inground feature lighting
- Landscape and garden lighting
- Pathway and architectural accent lighting
- Feature illumination around patios, terraces and pool surrounds
Standards & Compliance
- AS/NZS 60598.1: applicable general requirements for luminaires
- AS/NZS 60598.2.2: applicable particular requirements for recessed luminaires
- AS/NZS 3000: applicable electrical installation and wiring requirements
Environmental Benefits
- Low 2.5W power consumption can reduce operating energy compared with higher-wattage halogen alternatives
- LED light source provides an expected 50,000-hour lifespan, helping reduce replacement frequency and waste
- Brass components can be recovered and recycled at end of service life
- 12/24V DC operation supports efficient low-voltage lighting systems
Warranty Information
Domus lists a 5-year replacement warranty for the EMIT-55 series product. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus guidelines; terms and application conditions apply.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
