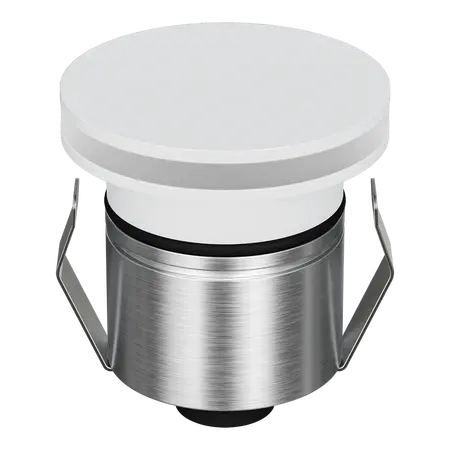

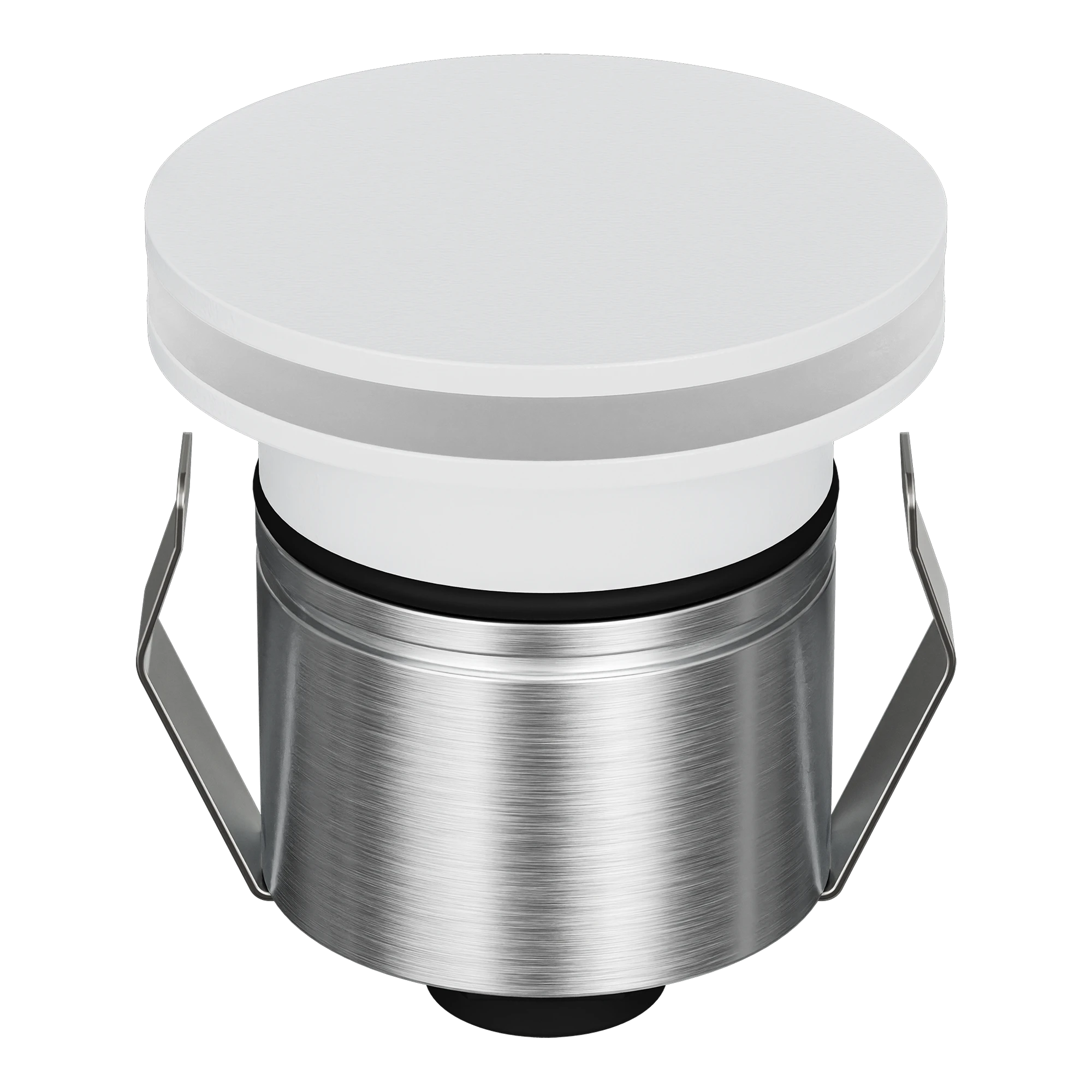

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V Halo White Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, halo fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 55mm Halo Inground Light, Domus EMIT-55-TRIO-HALO, Tri-Colour LED Deck Light
Technical Specifications
- Item Number: 11531
- Variant: EMIT-55-TRIO-HALO
- Light Type: Tri-colour integrated LED
- Finish: White
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 22 lumens at 3000K, 4000K and 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- Dimming: No
- Rated Lifespan: 50,000 hours
- Cutout: 43mm without canister; 48mm with canister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Classification: Class III
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Selectable 3000K warm white, 4000K neutral white and 5500K white colour temperatures
- Halo fascia produces a subtle perimeter light effect
- Compact 55mm overall diameter for deck, pathway, stair and inground feature lighting
- IP67-rated construction for protected outdoor and inground applications
- IK10 impact rating and 1500kg drive-over load rating
- Optional 19° and 60° beam lenses, honeycomb, linear lens and opal diffuser accessories
- Requires a compatible 12/24V DC LED driver, which is not included
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000. Do not connect directly to mains voltage.
Applications
- Residential deck and step lighting
- Landscape and pathway feature lighting
- Inground architectural accent lighting
- Drive-over outdoor lighting installations within the 1500kg load rating
- Commercial exterior lighting where low-voltage LED lighting is suitable
Standards & Compliance
- AS/NZS 60598.1:2025 - applicable general safety requirements for luminaires; product-specific conformity declaration was not located
- AS/NZS 3000:2018 - electrical installation and wiring requirements applicable to the driver and low-voltage installation
Environmental Benefits
- Low 2.5W power consumption supports reduced energy use in landscape and exterior lighting systems
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Integrated LED technology avoids regular lamp replacement
- Manufacturer datasheet displays a recycling symbol; recycle the fitting through an appropriate electrical or lighting recycling facility where available
Warranty Information
The manufacturer product datasheet states a 5-year replacement warranty. Domus Lighting's current warranty statement separately lists exterior deck and inground lights as 3-year replacement for residential use and 12-month replacement for commercial use, so the applicable warranty should be confirmed at purchase. Warranty eligibility requires licensed-electrician installation and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian distributors.
