Emit Deck Light 55mm 2.5W Tri-Colour 12/24V Ring Black Domus

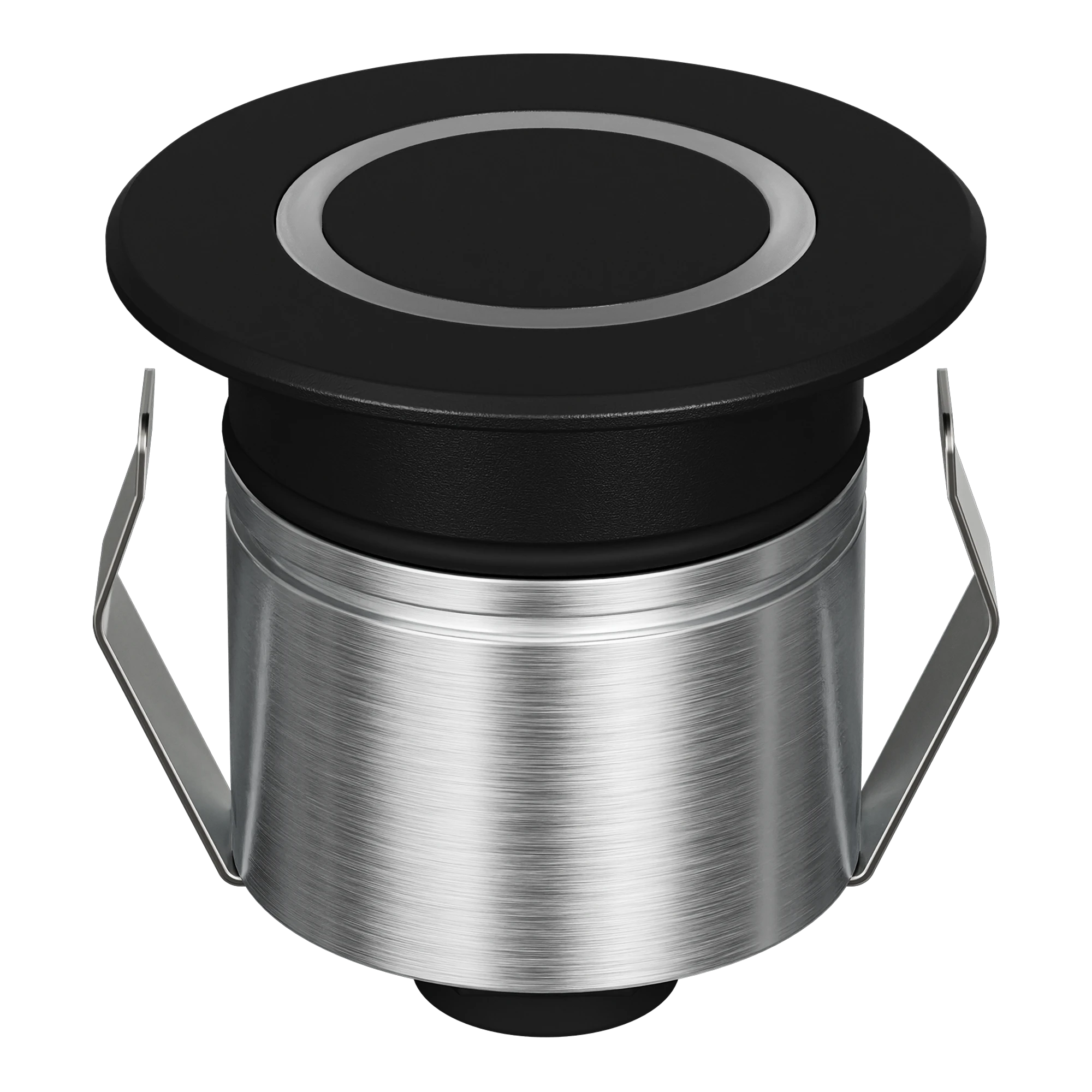

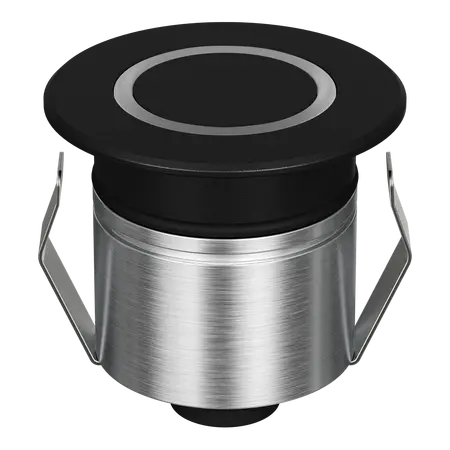

Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RING, Domus Emit 55 Ring Inground Light, Tri-Colour LED Deck Light
Technical Specifications
- Light Type: Tri-colour selectable LED inground and deck light
- Fascia Style: Ring
- Finish Colour: Black
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Luminous Output: 28 lumens at each selectable colour temperature
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Rated Life: 50,000 hours
- Load Rating: 1500 kg drive-over
- Driver Requirement: Requires a 12V or 24V DC constant-voltage LED driver; wire in parallel
- Classification: Class III
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.18 kg
Key Features
- Compact 55mm ring fascia for deck, inground and architectural accent lighting
- Selectable warm white, neutral white and white colour temperatures
- IP67-rated construction for suitable outdoor applications
- IK10 impact rating and 1500kg drive-over load rating
- Black fascia finish
- 36° standard beam angle with optional interchangeable lenses
- Designed for use with 12V or 24V DC constant-voltage LED drivers
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver and follow the manufacturer's installation instructions. Incorrect voltage or connection may damage the luminaire.
Applications
- Residential and commercial deck lighting
- Outdoor stair and pathway lighting
- Landscape and garden feature lighting
- Inground architectural accent lighting
- Drive-over outdoor lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires; product-specific compliance should be confirmed from the manufacturer's declaration.
- AS/NZS 60598.2.13: Particular requirements for ground-recessed luminaires; applicable to the product category, with product-specific compliance to be confirmed from the manufacturer.
Environmental Benefits
- 2.5W LED operation provides low energy consumption for accent and pathway lighting.
- Published 50,000-hour LED life can reduce replacement frequency and associated material waste.
- LED technology avoids mercury-containing fluorescent lamp technology.
- Long-life outdoor construction can reduce premature replacement and disposal.
Warranty Information
5-year replacement warranty stated by Domus Lighting, subject to the manufacturer's warranty conditions. Warranty eligibility requires installation by a licensed electrician and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian distributors.
