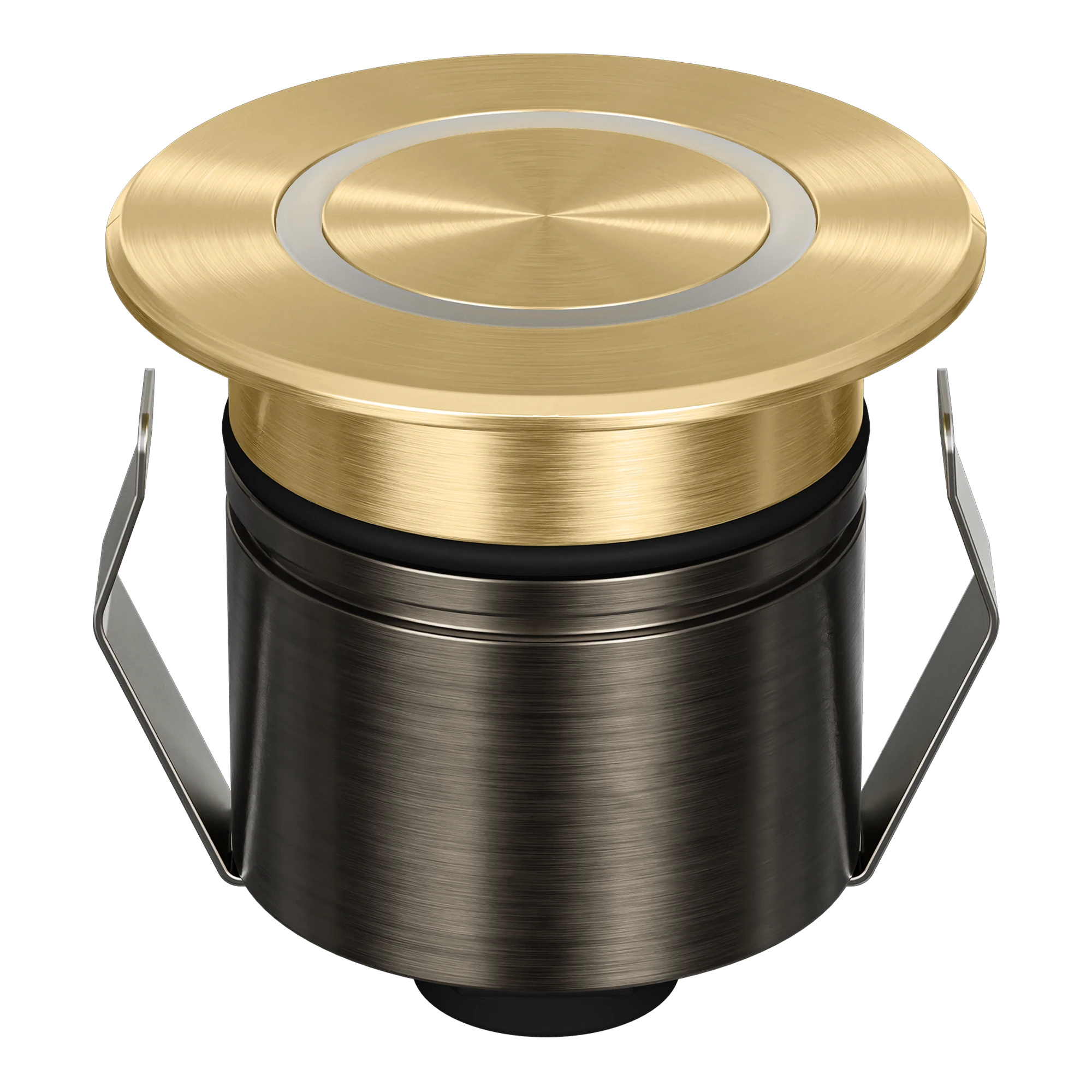

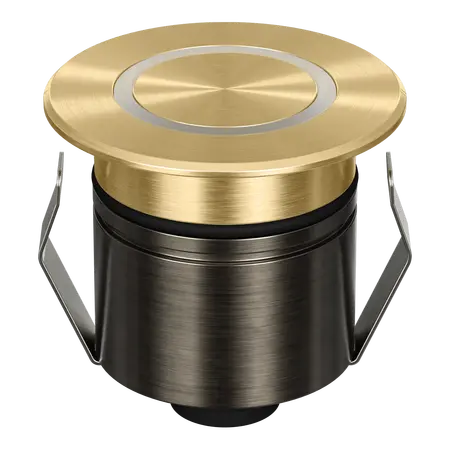

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V Ring Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-55 Ring Inground Light, Tri-Colour Recessed Deck Light, Brass LED Inground Light
Technical Specifications
- Power: 2.5W LED
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Light Output: Approximately 28 lumens for ring fascia
- LED Type: CREE
- Colour Rendering Index: ≥90
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Impact Protection: IK10
- Lifespan: 50,000 hours
- Load Rating: Up to 1500kg drive-over
- Fascia: Ring
- Finish: Brass
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Class: Class III extra-low-voltage luminaire
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.4 kg
Key Features
- Tri-colour selectable operation for warm, neutral and cool white light
- Brass ring fascia for recessed deck, step and inground lighting
- Compact 55mm overall diameter
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and 1500kg drive-over load rating
- 36° beam angle supplied as standard
- Compatible with 12V or 24V DC constant-voltage LED drivers
- Optional narrow, wide, honeycomb, linear and opal accessories available
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect the fitting before energising the driver, and install the fitting according to the manufacturer’s cut-out, sealing and wiring instructions.
Applications
- Residential and commercial deck lighting
- Outdoor stair and step lighting
- Landscape and pathway feature lighting
- Drive-over inground accent lighting
- Architectural and garden illumination
- Recessed lighting in patios, terraces and outdoor entertaining areas
Standards & Compliance
- Relevant luminaire safety framework: AS/NZS 60598.1 for general luminaire requirements and tests
- Ground-recessed luminaire requirements: IEC 60598-2-13, subject to applicable Australian adoption and product certification
- Extra-low-voltage electrical safety criteria: AS/NZS 3820
Environmental Benefits
- Low 2.5W power consumption supports efficient outdoor lighting installations
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Brass construction is durable and can be recycled at end of service life
- Selectable colour temperature can help avoid over-lighting by matching output to the application
Warranty Information
5-year replacement warranty stated on the EMIT-55 product datasheet, subject to Domus Lighting warranty conditions, approved installation and licensed-electrician installation requirements.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
