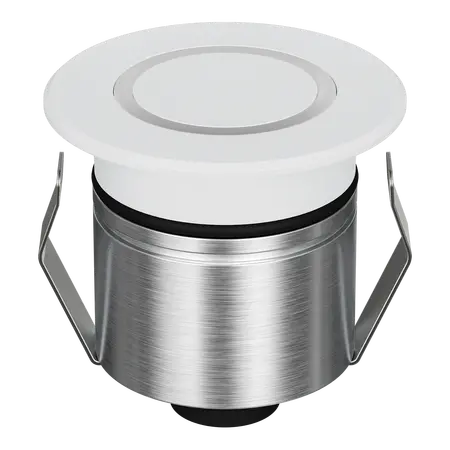

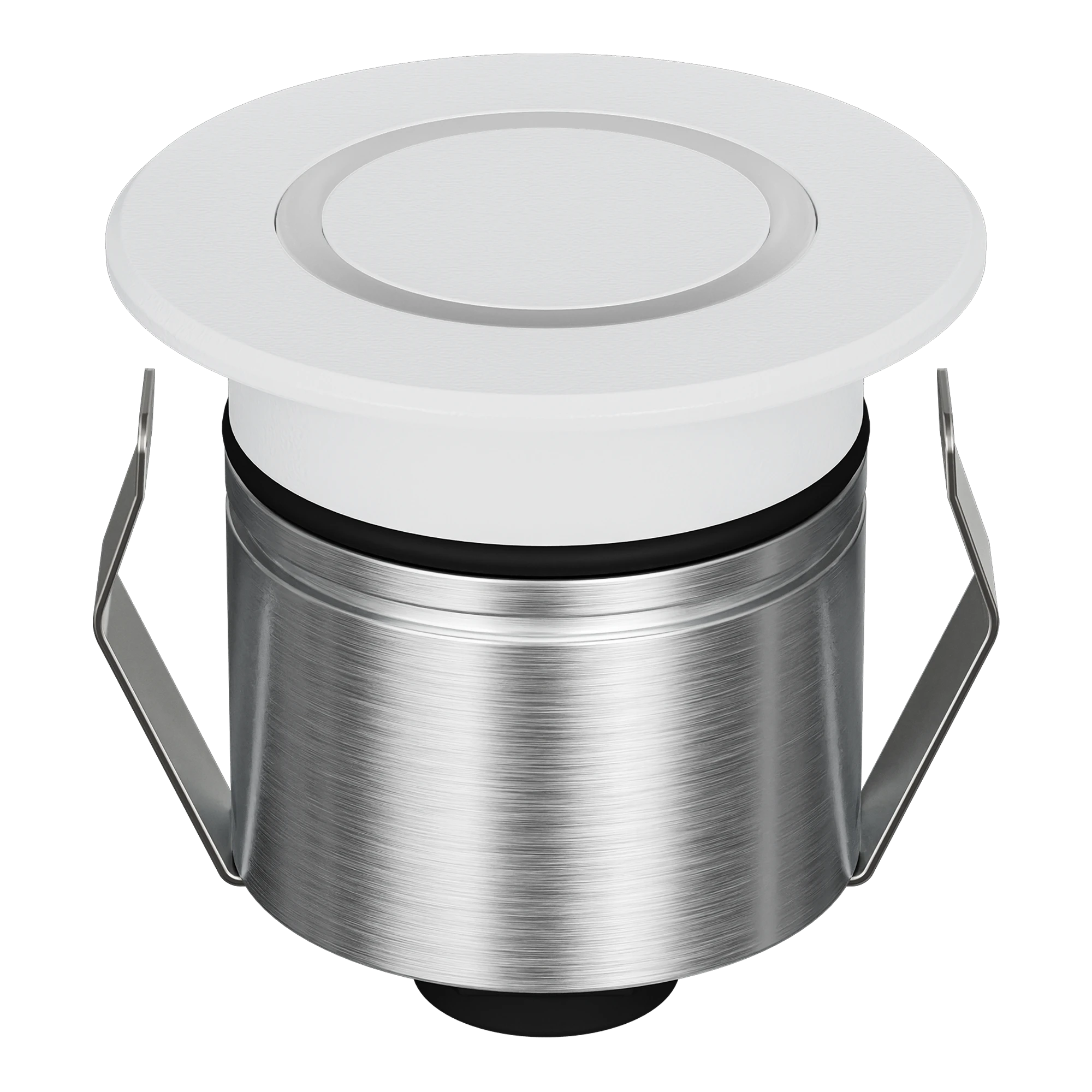

Emit Deck Light 55mm 2.5W Tri-Colour 12/24V Ring White Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 55 Ring Inground Light, 55mm LED Deck Light, Tri-Colour Recessed Ground Light, Outdoor LED Marker Light
Technical Specifications
- Wattage: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Beam Angle: 36° standard; 19° and 60° options available
- IP Rating: IP67
- IK Rating: IK10
- LED Type: CREE
- CRI: ≥90
- Dimming: No
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Cutout Diameter: Ø43mm without cannister; Ø48mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver
- Wiring: Connect multiple fittings in parallel
- Classification: Class III
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- White ring fascia for recessed deck and inground lighting
- Tri-colour LED technology with selectable 3000K, 4000K and 5500K output
- Compact 55mm fascia diameter for discreet architectural lighting
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor and ground-recessed applications
- IK10 impact rating for robust outdoor use
- Requires a separate 12/24V DC constant-voltage LED driver
- Optional beam lenses and diffuser accessories are available
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect fittings in parallel, and follow the manufacturer's installation instructions. The fitting must be protected from incorrect voltage connection and installed with suitable outdoor cable joints and drainage provisions.
Applications
- Residential deck and stair lighting
- Landscape and garden feature lighting
- Pathway and walkway marker lighting
- Inground architectural accent lighting
- Outdoor entertaining areas
- Commercial landscape and architectural projects
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements for luminaires; product-specific certification is not stated in the available source material.
- AS/NZS 60598.2.13: Applicable particular requirements for ground-recessed luminaires; product-specific certification is not stated in the available source material.
- AS/NZS 3000: Relevant wiring and installation requirements for the associated electrical installation.
Environmental Benefits
- LED technology provides lower energy consumption than comparable halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Low-voltage 12/24V DC operation supports integration with efficient extra-low-voltage lighting systems
- Durable IP67 and IK10 construction can extend service life in outdoor installations
Warranty Information
5-year replacement warranty as stated on the Domus Emit product page. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation requirements.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
