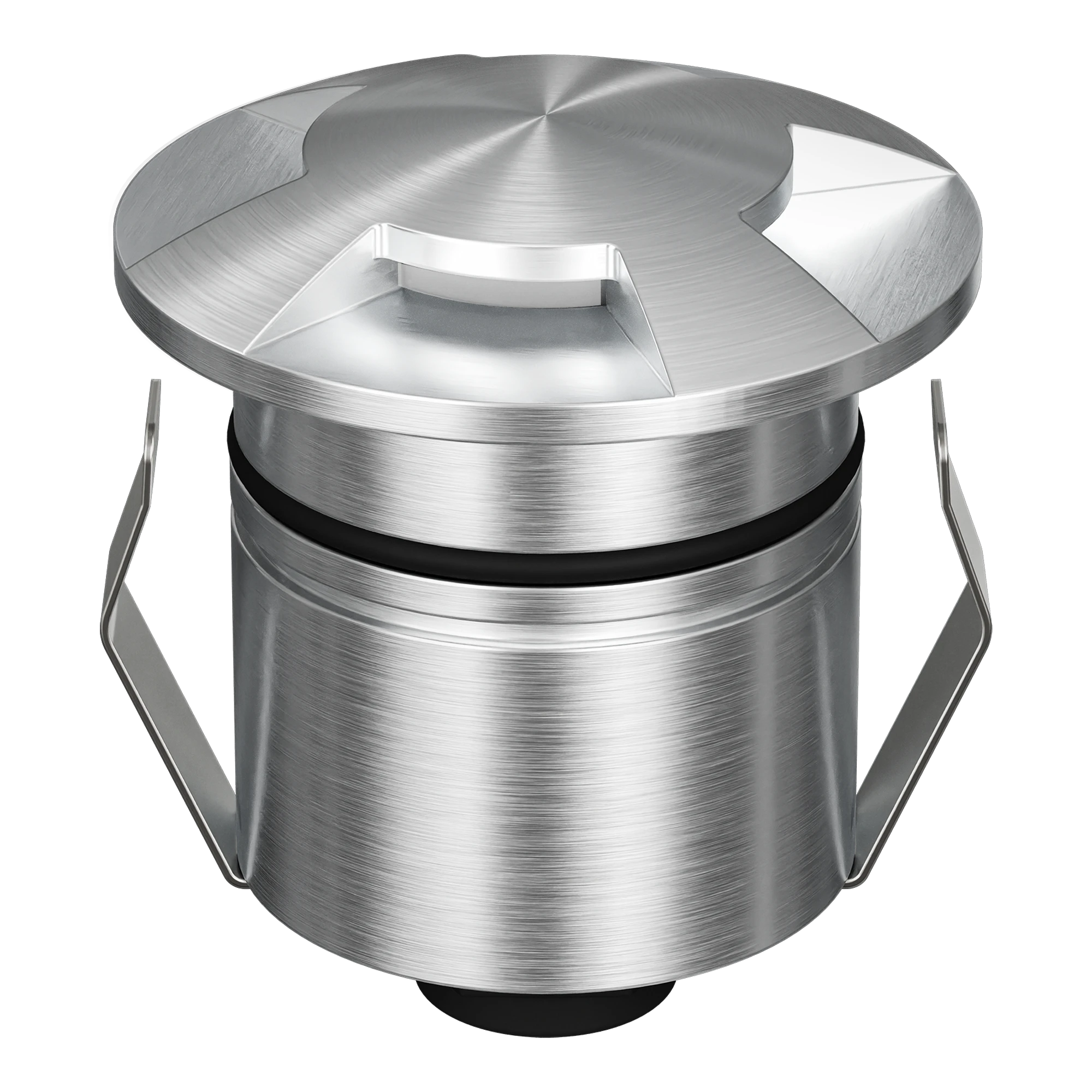

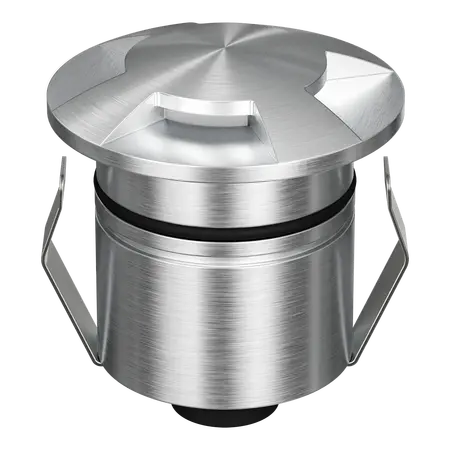

Emit Deck Light 55mm RGBW 12/24V 4-Way 316 Stainless Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 4-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-55-RGBW-STS, RGBW Inground Light, RGBW Deck Light, 4-Way Inground Light
Technical Specifications
- Model: EMIT-55-RGBW-4WAY
- Variant: RGBW, 4-way fascia, stainless steel
- Material: 316 stainless steel fascia and body
- Input Voltage: 12/24V DC constant voltage; installation documentation specifies a 24V DC driver
- Power: 2.5W
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Output: RGBW — red, green, blue and white
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cutout: 43mm without canister; 48mm with canister
- Operating Temperature: -20°C to 40°C
- Dimming: No
- Required Accessories: Constant-voltage LED driver and RGBW colour controller
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Compact 55mm RGBW inground and deck light
- Four-way fascia for directional feature lighting
- 316 stainless steel construction for outdoor applications
- RGBW colour-changing output when used with a compatible controller
- 36° standard beam angle with optional lens accessories
- IP67 ingress protection for suitable outdoor installations
- IK10 impact protection and 1,500kg drive-over load rating
- Compatible with optional opal diffuser, linear lens and honeycomb accessories
- 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver and RGBW controller, connect the luminaire before energising the power supply, and install the fitting in accordance with the manufacturer's instructions and applicable wiring requirements.
Applications
- Residential deck and entertaining-area lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over inground lighting where the installation is suitably designed and rated
- Commercial outdoor and hospitality lighting
Standards & Compliance
- AS/NZS 3000:2018 – applicable to the electrical installation of the low-voltage lighting system
- AS/NZS 60598.1 – general safety requirements for luminaires, applicable to this type of LED luminaire
- AS/NZS 60598.2.13 – relevant ground-recessed luminaire requirements; confirm product certification with Domus Lighting where formal certification is required
Environmental Benefits
- 2.5W LED operation can reduce energy consumption compared with higher-wattage conventional feature lights
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- 316 stainless steel is durable and recyclable, supporting extended service life
- Low-voltage DC operation supports extra-low-voltage outdoor lighting systems
Warranty Information
5-year replacement warranty. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician, installation in accordance with Domus guidelines and proof of purchase. Warranty terms remain subject to Domus Lighting's current warranty statement and Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
