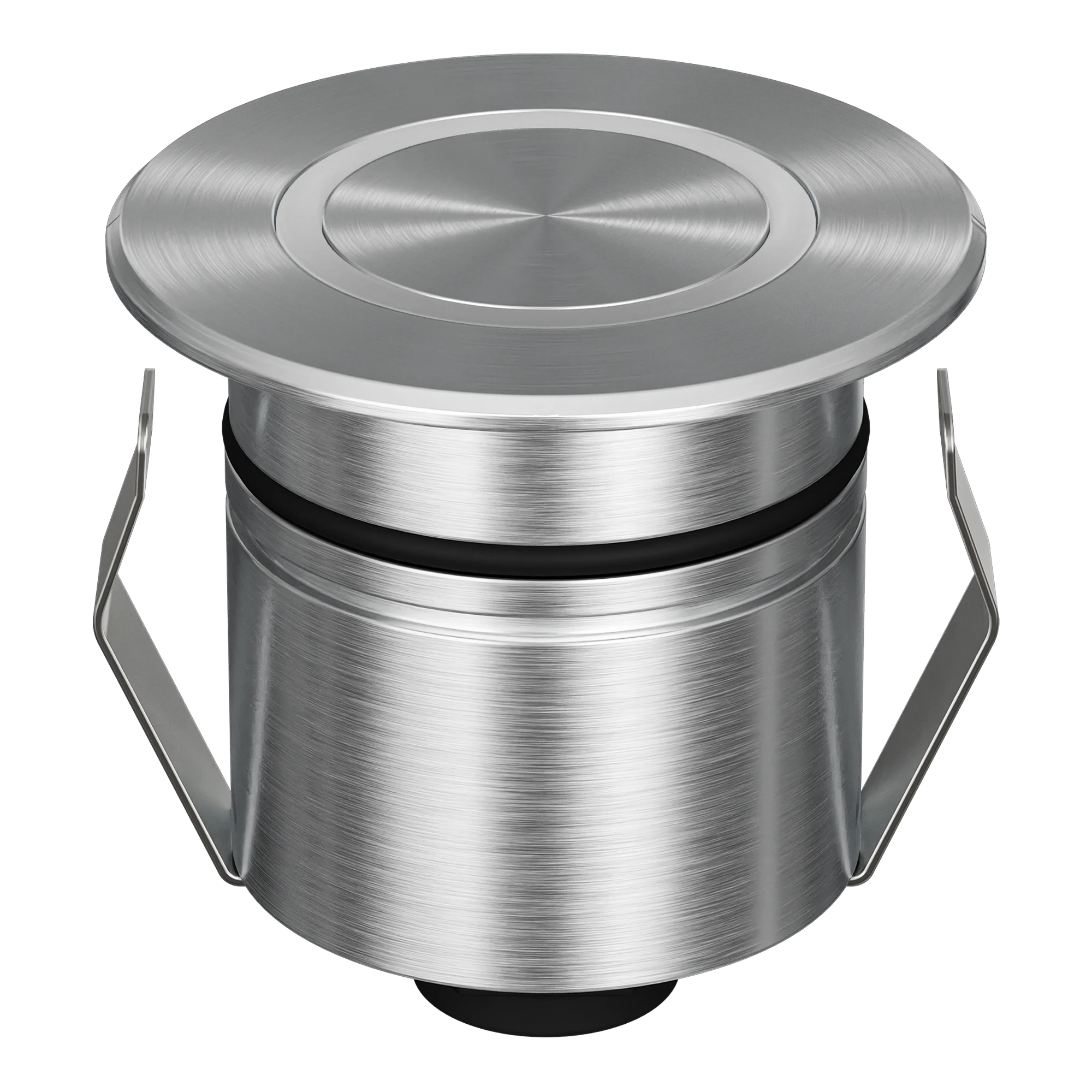

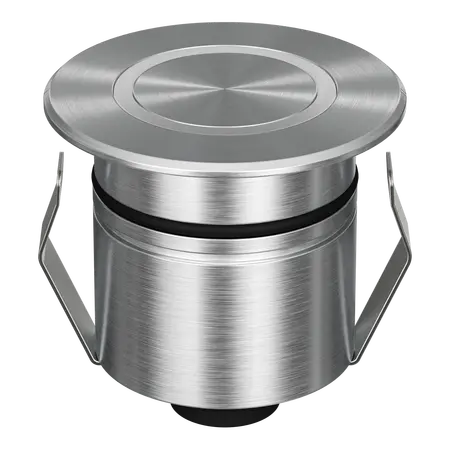

Emit Deck Light 55mm RGBW 12/24V Ring 316 Stainless Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, ring fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-55-RGBW-RING, RGBW LED Deck Light, RGBW Inground Light, Ring Fascia Deck Light
Technical Specifications
- Light Type: RGBW LED inground and deck light
- Material: 316 stainless steel fascia
- Wattage: 2.5W
- Input Voltage: 12/24V DC constant voltage; 24V DC driver specified by the datasheet
- Colour Output: RGBW red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Load Rating: 1500kg
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 43mm without cannister; 48mm with cannister
- Operating Temperature: -20°C to 40°C
- Control Requirement: RGBW colour controller required
- Driver Requirement: 24V constant-voltage LED driver, wired in parallel
- Electrical Classification: Class III
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Ring fascia design for discreet architectural feature lighting
- 316 stainless steel finish for exterior and inground applications
- RGBW colour-changing output with separate white channel
- 36° standard beam angle for focused accent lighting
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact rating and 1500kg drive-over rating
- Optional 19° and 60° beam lenses, opal diffuser, linear lens and honeycomb accessories
- Designed for landscape, pathway, stair, architectural and deck lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a suitable constant-voltage 12/24V DC LED driver and compatible RGBW controller in accordance with the installation instructions and AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Inground lighting in pedestrian areas
- Drive-over exterior lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2017 - Luminaires, general requirements and tests
- AS/NZS 3000 - Electrical installations, wiring and installation requirements
Environmental Benefits
- Low 2.5W LED power consumption can reduce energy use compared with higher-wattage conventional lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- 316 stainless steel fascia is durable and recyclable at end of service life
- LED RGBW output allows colour and white-light selection from one fitting, supporting targeted lighting rather than multiple fixtures
Warranty Information
The current product page and datasheet state a 5-year replacement warranty. Domus Lighting's current general warranty table lists exterior deck and inground lights as 3-year replacement for residential applications and 12-month replacement for commercial applications; confirm the applicable term at purchase. Warranty eligibility requires installation by a licensed electrician and compliance with installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
