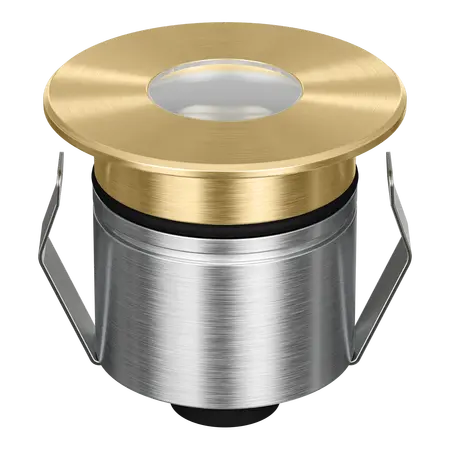

Emit Deck Light 55mm RGBW 12/24V Round Open Brass Domus

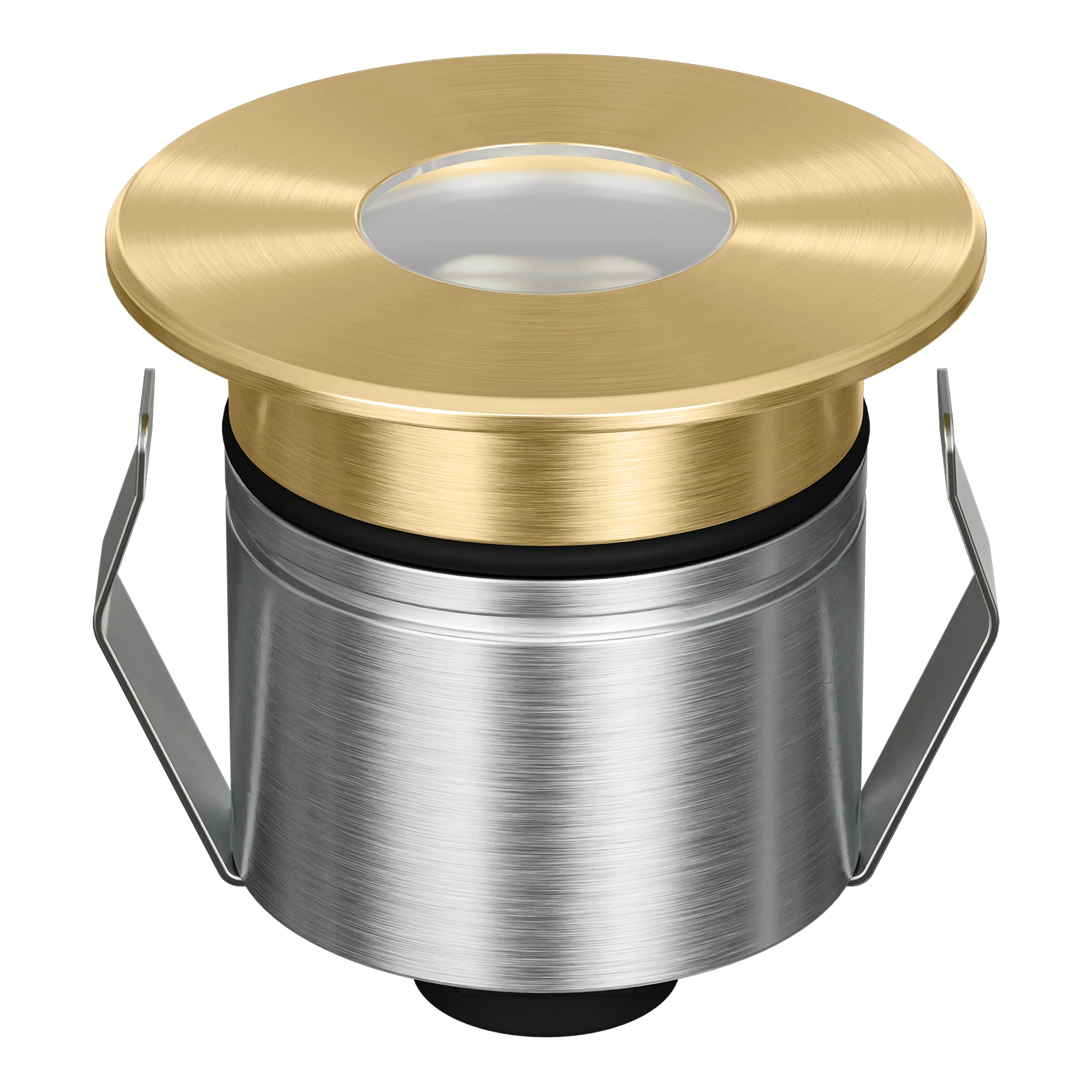

Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, round open fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-55-RGBW-BRS, EMIT-55 RGBW Inground Light, 55mm RGBW Inground Light, Brushed Brass Deck Light
Technical Specifications
- Product Type: Recessed LED inground and deck light
- Fascia Style: Round open
- Finish: Brushed brass
- Material: Brass fascia with stainless steel body
- LED Type: CREE
- Light Output: RGBW colour changing
- Power: 2.5W
- Input Voltage: 24V DC constant voltage
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Drive-Over Rating: Up to 1,500kg
- Cutout: 43mm without cannister or 48mm with cannister
- Control Requirement: RGBW colour controller required
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Compact 55mm round open fascia for subtle architectural and feature lighting
- RGBW colour-changing LED suitable for landscape, pathway, stair and deck applications
- Brushed brass finish with a durable stainless steel body
- IP67-rated construction for suitable outdoor and inground installations
- IK10 impact rating and drive-over rating up to 1,500kg
- Standard 36° beam angle with optional narrow and wide-angle lenses
- Optional honeycomb and opal diffuser accessories available
- Requires separate 24V DC LED driver and RGBW controller
- Manufacturer-backed 5-year replacement warranty
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Use a compatible 24V DC constant-voltage LED driver and RGBW controller; ensure all outdoor cable joints and connections maintain the required IP protection.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Outdoor inground lighting
- Drive-over areas where the manufacturer's load rating is suitable
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.2: Particular requirements for recessed luminaires
- AS/NZS 3000: Electrical installation requirements for connection and installation in Australia
Environmental Benefits
- Low 2.5W LED power consumption can reduce energy use compared with higher-wattage conventional deck lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Brass and stainless steel components are recyclable at end of service life
- Separate driver and controller arrangement can allow system components to be serviced or replaced independently
Warranty Information
5-year replacement warranty for the EMIT-55 series, subject to Domus Lighting warranty conditions. Warranty claims require installation by a licensed electrician and compliance with the manufacturer's installation guidelines. Domus lists exterior deck and inground lights under its residential 3-year replacement and commercial 12-month replacement warranty table; the product page and datasheet specifically state a 5-year replacement warranty.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors. Driver and RGBW controller are required separately.
