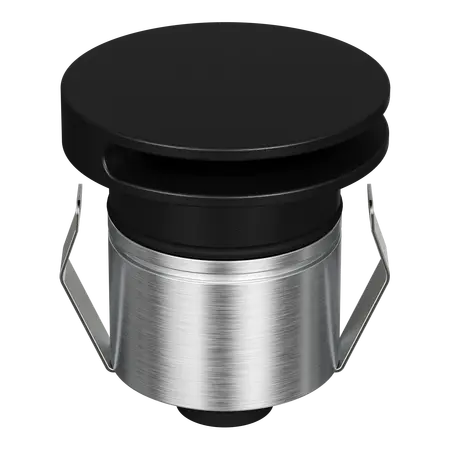

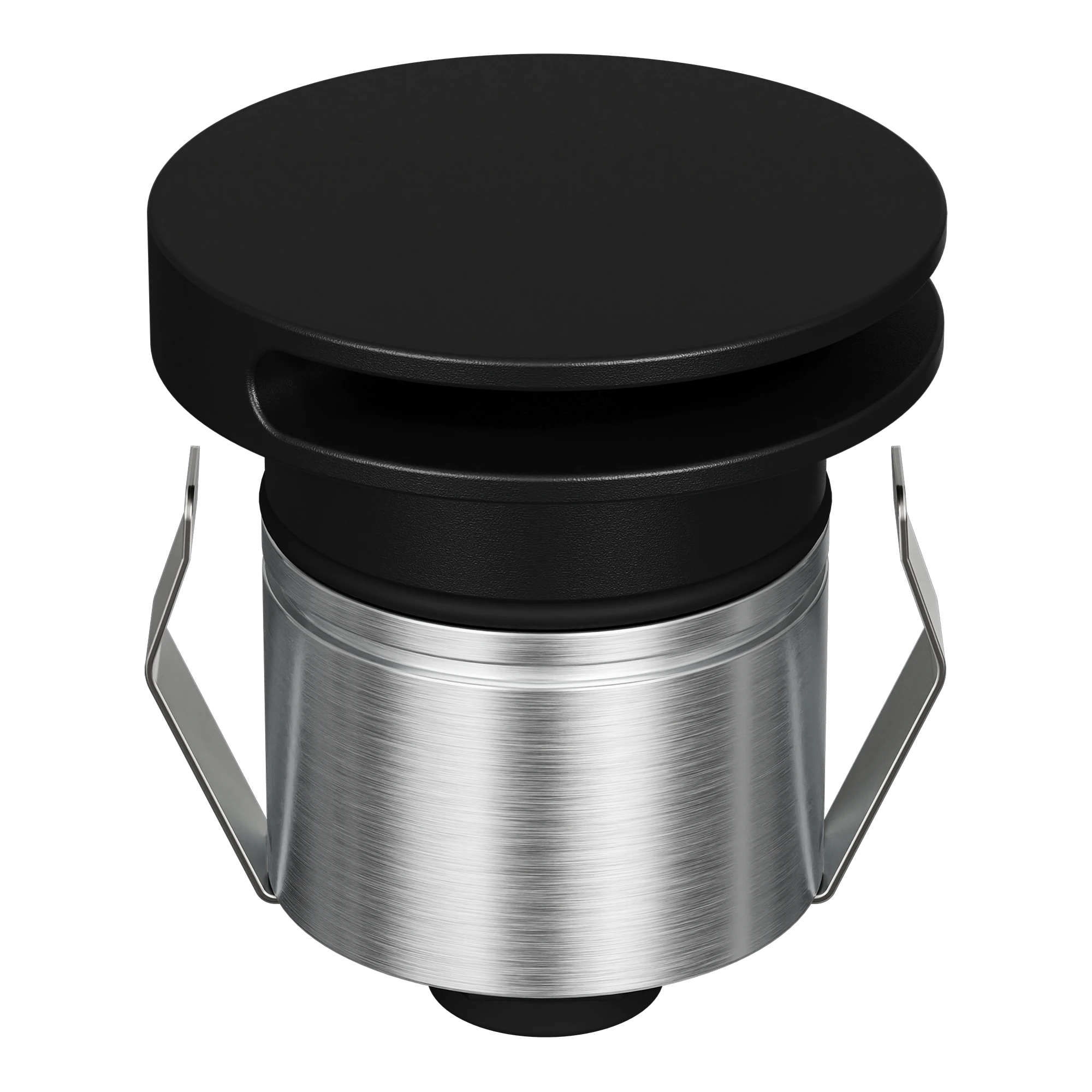

Emit Deck Light 55mm RGBW 12/24V Round Slot Black Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, round slot fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-RND-SLOT, Emit 55 RGBW Deck Light, RGBW Inground Light, LED Deck Light
Technical Specifications
- Variant: RGBW
- Finish: Black
- Style: Round slot
- Power: 2.5W
- Input Voltage: 12/24V DC
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- LED Type: CREE
- Lifespan: 50,000 hours
- Dimming: No
- Cutout Diameter: 43mm without cannister; 48mm with cannister
- Load Rating: 1,500kg drive-over
- Required Accessories: Constant-voltage LED driver and RGBW colour controller
- Electrical Classification: Class III
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- RGBW colour-changing LED output for feature and accent lighting
- Round slot black fascia for inground and deck applications
- Compact 55mm overall diameter
- IP67-rated construction for outdoor and inground use
- IK10 impact protection and 1,500kg drive-over load rating
- 36° beam angle supplied as standard, with optional beam-angle lenses
- Compatible with optional opal diffuser, honeycomb and lens accessories
- Requires a compatible 12/24V DC constant-voltage LED driver
- Requires an RGBW colour controller for colour selection
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver and RGBW controller, wire luminaires in parallel, and follow the manufacturer's installation instructions.
Applications
- Residential and commercial deck lighting
- Inground feature lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over outdoor lighting where the 1,500kg load rating is suitable
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.23: Particular requirements for extra-low-voltage lighting systems, where applicable to the complete ELV lighting system
Environmental Benefits
- Low 2.5W LED power consumption can reduce energy use compared with higher-wattage conventional lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Extra-low-voltage operation supports use with efficient 12/24V DC lighting systems
Warranty Information
5-year replacement warranty stated by Domus for the EMIT-55 product range, subject to installation by a licensed electrician, correct installation, proof of purchase and the manufacturer's warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian lighting retailers and electrical wholesalers.
