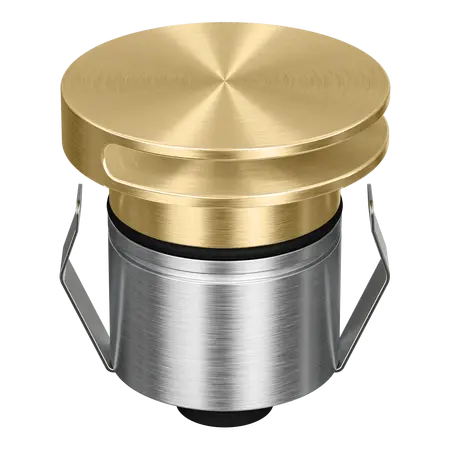

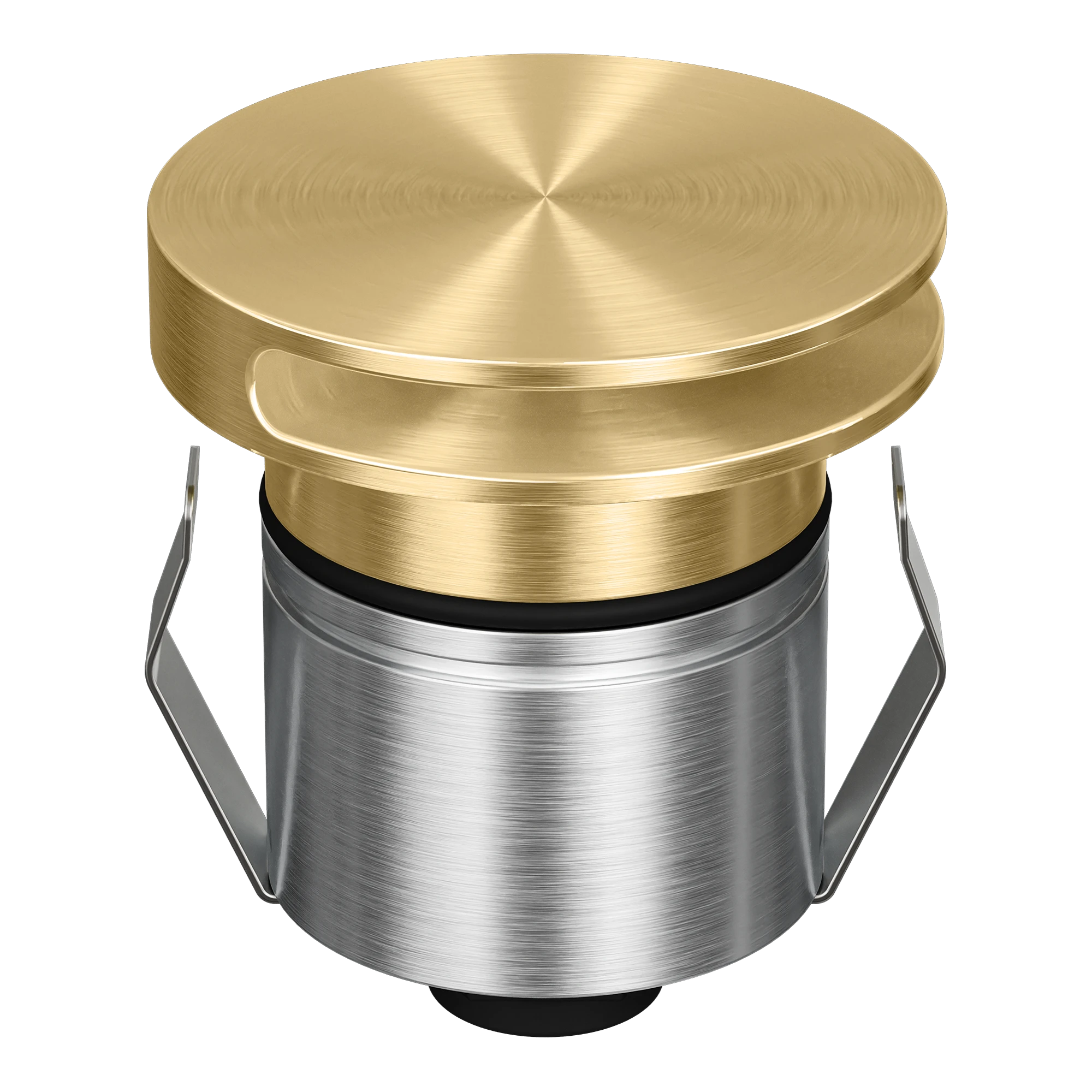

Emit Deck Light 55mm RGBW 12/24V Round Slot Brass Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, round slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-55 RGBW Inground Light, RGBW Inground Deck Light, Round Slot Inground Light, 24V RGBW Deck Light
Technical Specifications
- Light Type: RGBW LED inground and deck light
- Finish: Brass
- Material: Brass fascia and body components
- Power: 2.5W
- Input Voltage: 24V DC constant voltage
- LED Type: CREE
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Load Rating: 1500kg drive-over
- Lifespan: 50,000 hours
- Dimming: No
- Control: Requires RGB colour controller
- Driver Requirement: 24V constant-voltage LED driver; wire fittings in parallel
- Cutout: 43mm without cannister or 48mm with cannister
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.45 kg
Key Features
- RGBW colour-changing LED output for decorative and architectural lighting
- Round slot fascia with brass finish
- Compact 55mm overall diameter
- 36° standard beam angle for focused accent lighting
- IP67 protection for outdoor and inground applications
- IK10 impact protection
- 1500kg drive-over load rating
- Optional 19° and 60° beam lenses, opal diffuser, linear lens and honeycomb accessory
- Requires separate 24V constant-voltage driver and RGB colour controller
- 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use a suitable 24V constant-voltage LED driver and compatible RGB controller; connect fittings in parallel and ensure all outdoor cable joints maintain the required IP protection.
Applications
- Residential and commercial deck lighting
- Inground feature and accent lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Architectural façade and outdoor feature lighting
- Drive-over areas rated within the 1500kg load limit
Standards & Compliance
- AS/NZS 60598.1:2017, general requirements and tests for luminaires
- AS/NZS 3000:2018, applicable electrical installation requirements for low-voltage lighting systems
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and installation waste
- Brass components are recyclable at end of service life
- 24V DC operation supports use with efficient low-voltage lighting systems
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty terms, licensed-electrician installation and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
