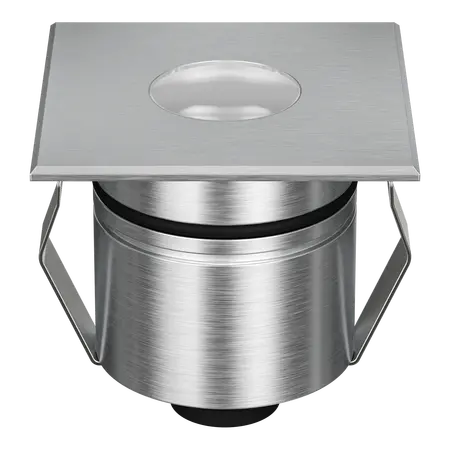

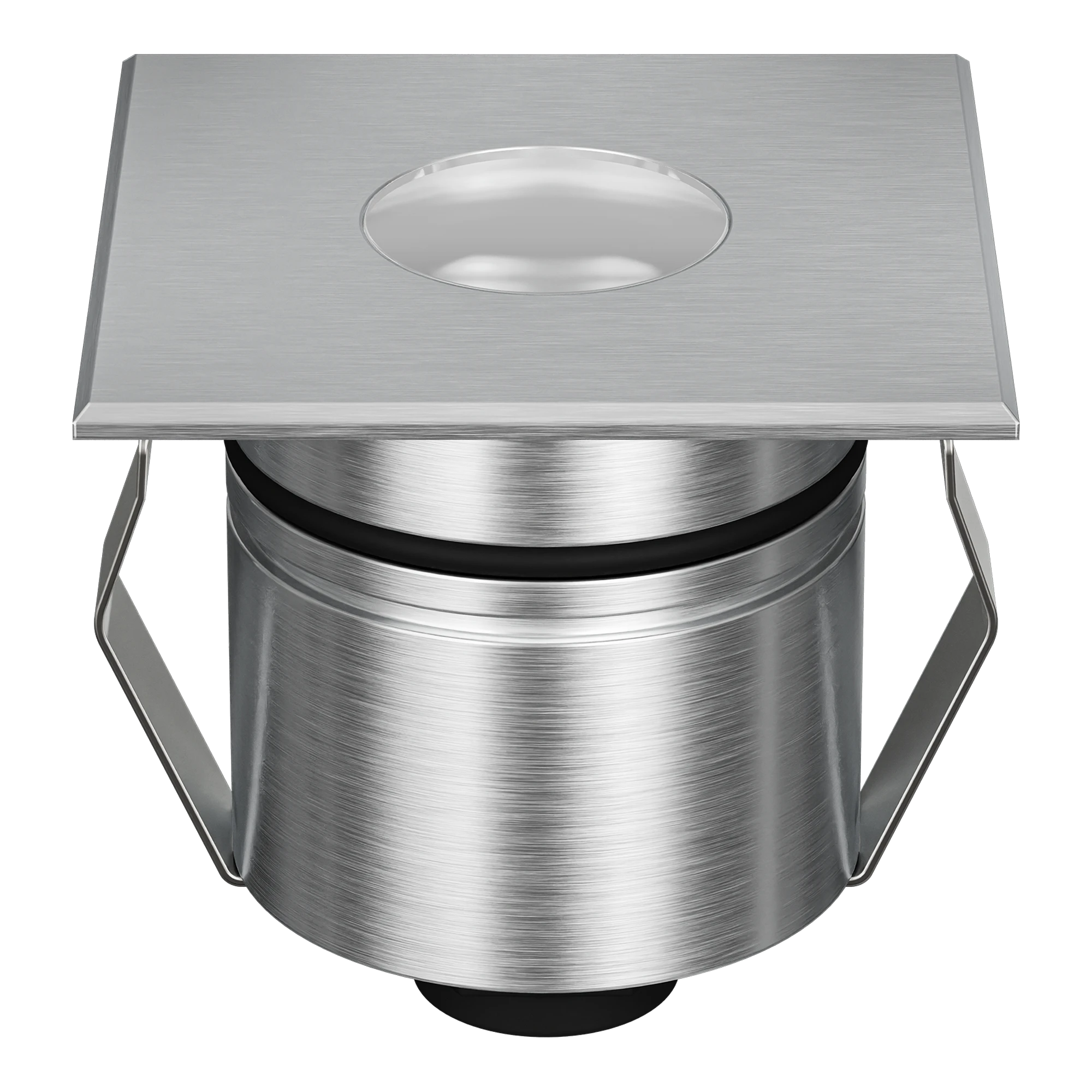

Emit Deck Light 55mm RGBW 12/24V Square Open 316 Stainless Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, square open fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55 RGBW Square Open Inground Light, RGBW LED Deck Light, Mini Recessed Inground Light
Technical Specifications
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Output: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- LED Lifespan: 50,000 hours
- Cutout Diameter: 43mm without cannister; 48mm with cannister
- Load Rating: Up to 1500kg drive-over
- Dimming: No
- Material: 316 stainless steel fascia
- Controller Requirement: RGBW colour controller required
- Driver Requirement: 12/24V DC LED driver required; wire in parallel
- Dimensions (H x L x W): 55mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- RGBW colour-changing LED output
- Square open fascia design for deck, pathway and inground lighting
- 316 stainless steel construction for exterior applications
- 36° beam angle supplied as standard
- IP67 protection against dust and temporary water immersion
- IK10 impact resistance
- Drive-over rated to 1500kg
- Optional narrow, medium, 19° and 60° beam lenses
- Optional honeycomb and frosted diffuser accessories
- Long 50,000-hour LED lifespan
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Connect the luminaire to a suitable 12/24V DC constant-voltage LED driver and compatible RGBW controller, following the manufacturer's installation instructions and applicable AS/NZS 3000 requirements.
Applications
- Residential deck and outdoor entertainment area lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over inground lighting
- Commercial exterior and hospitality lighting
Standards & Compliance
- AS/NZS 3000:2018 – electrical installation requirements for the extra-low-voltage lighting circuit
Environmental Benefits
- Low 2.5W LED power consumption can reduce energy use compared with higher-wattage conventional lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Durable 316 stainless steel construction supports extended service life and recyclability
- 12/24V DC extra-low-voltage operation supports efficient low-voltage lighting system design
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty terms, licensed electrician installation and compliance with the manufacturer's installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
