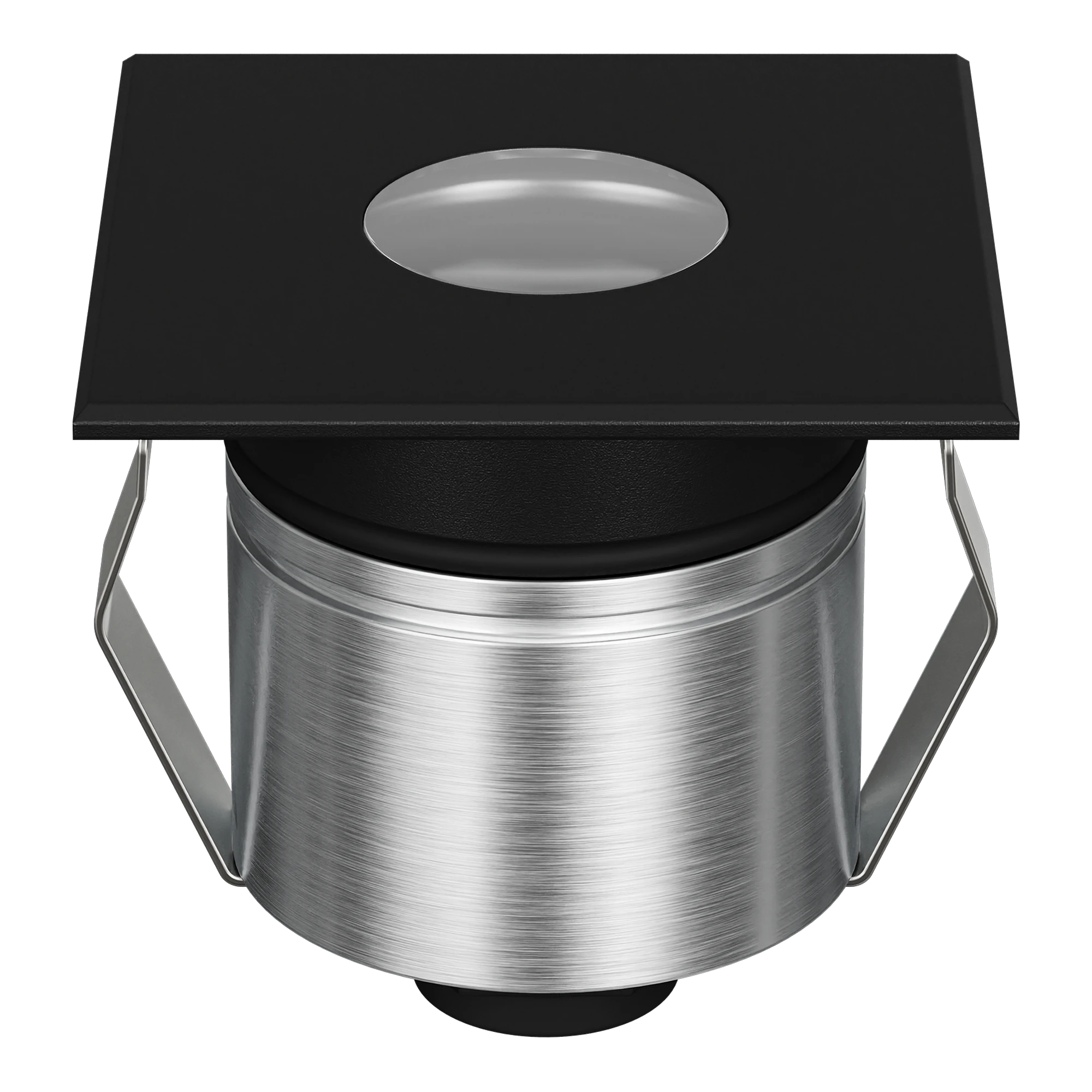

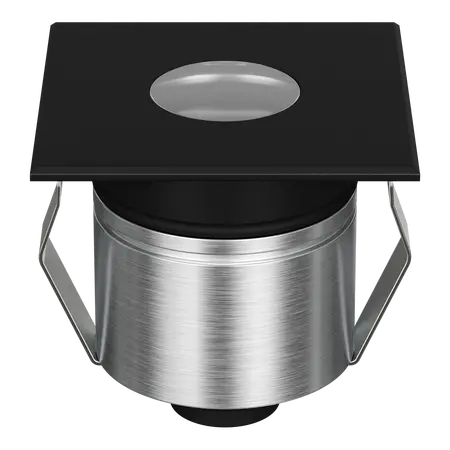

Emit Deck Light 55mm RGBW 12/24V Square Open Black Domus
Domus Emit 55mm LED deck light, RGBW, 36 deg beam, 12/24V DC, square open fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-RGBW-SO, Emit 55 RGBW Inground Light, 55mm RGBW Deck Light
Technical Specifications
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 24V DC constant voltage; compatible with 12/24V DC installation systems
- Light Colour: RGBW - red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Control: Requires an RGBW colour controller
- Driver Requirement: 24V constant-voltage LED driver, wired in parallel
- Cutout: 43mm without canister or 48mm with canister
- Operating Temperature: -20°C to 40°C
- Finish: Black
- Fascia Style: Square open
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- RGBW colour-changing LED output for feature and accent lighting
- Compact 55mm square open fascia for deck and inground applications
- IP67-rated construction for outdoor and ground-recessed use
- IK10 impact rating and 1,500kg drive-over load rating
- 36° standard beam angle with optional interchangeable lenses
- Compatible with optional honeycomb and frosted diffuser accessories
- Requires separate constant-voltage LED driver and RGBW controller
Professional Installation Requirements
- Installation must be carried out by a licensed electrician. Use a compatible 24V constant-voltage LED driver and RGBW colour controller, connect fittings in parallel, and follow the manufacturer's installation instructions. Do not connect directly to mains voltage.
Applications
- Residential and commercial deck lighting
- Inground landscape lighting
- Pathway and stair lighting
- Architectural feature lighting
- Drive-over outdoor lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1: General requirements for luminaires
- AS/NZS 3000: Electrical installations and low-voltage wiring requirements
Environmental Benefits
- LED technology provides lower energy consumption than comparable conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- Low-voltage 24V DC operation supports use with efficient extra-low-voltage lighting systems
Warranty Information
Backed by a 5-year replacement warranty according to the current EMIT-55 RGBW product datasheet; warranty eligibility is subject to Domus Lighting terms, approved installation and applicable Australian Consumer Law rights. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/08/EMIT-55-RGBW-SO-Data-Sheet.pdf))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
