Trade Discount 25%

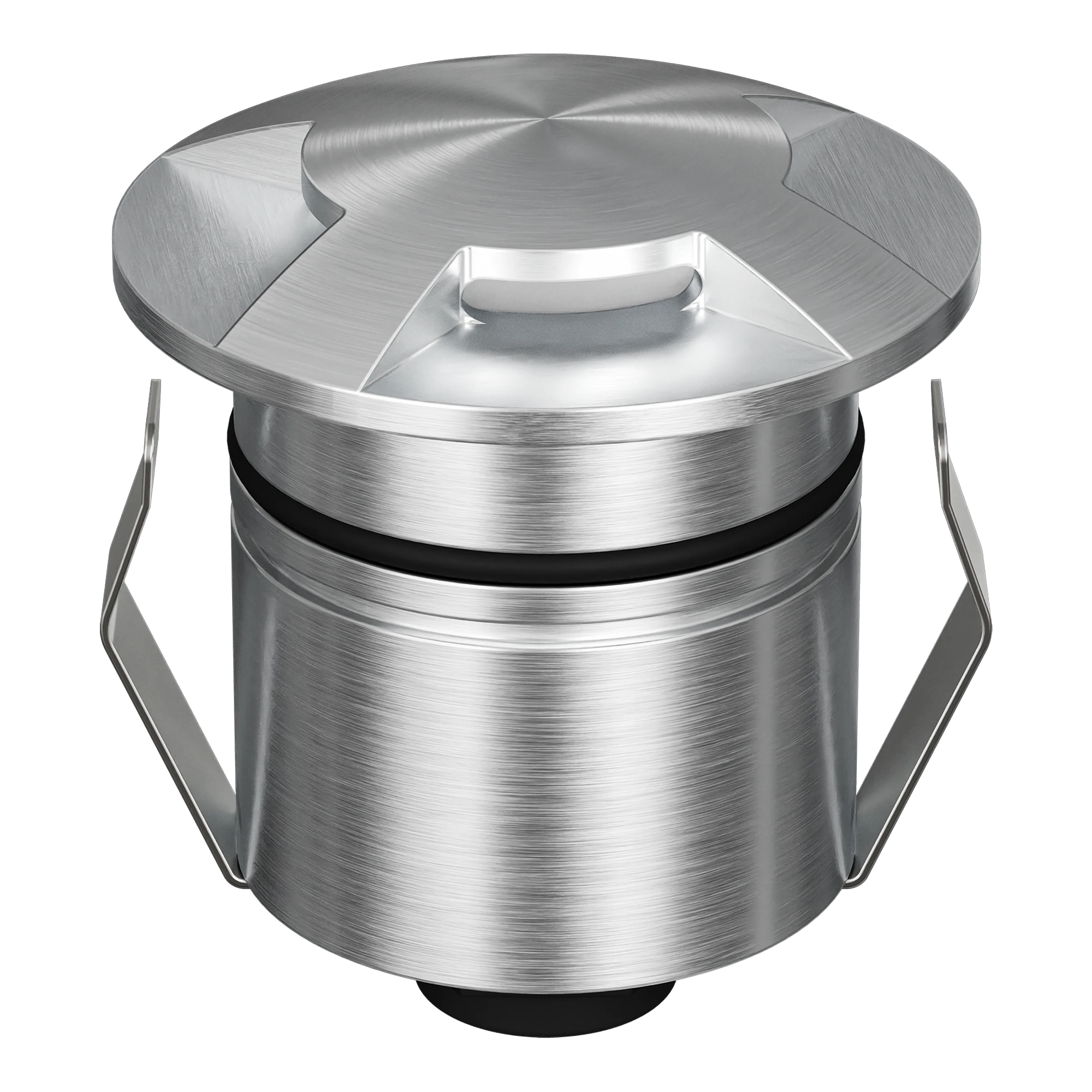

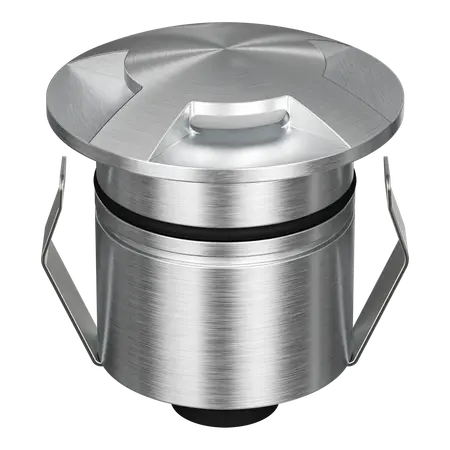

Emit Deck Light 55mm Tri-Colour 12/24V 3-Way 316 Stainless Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-55 3-Way Inground Light, Emit 55 Tri-Colour Deck Light, 55mm Recessed LED Ground Light
Technical Specifications
- Power: 2.5W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 19°, 36° or 60° selectable
- IP Rating: IP67
- Electrical Classification: Class III
- Dimming: Non-dimmable
- Material: 316 stainless steel fascia
- Cut-out: 43mm without cannister; 48mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver
- Operating Temperature: -20°C to 40°C
- Dimensions (H x L x W): 70mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Three-way fascia design for directional accent lighting
- Tri-colour LED output with selectable warm, neutral and cool white temperatures
- Selectable beam angles for flexible light distribution
- 316 stainless steel construction for outdoor and coastal applications
- IP67 protection for inground and deck installations
- Compact recessed form factor for landscape, pathway and architectural lighting
- Requires a compatible 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a compatible 12/24V DC constant-voltage LED driver and install in accordance with the manufacturer's instructions and AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Architectural accent lighting
- Outdoor inground lighting
- Coastal and exposed outdoor installations
Standards & Compliance
- AS/NZS 3000:2018 – electrical installation requirements for low-voltage lighting systems
- AS/NZS 60598.1 – general requirements for luminaires
- AS/NZS 60598.2.2:2016 – applicable requirements for recessed luminaires
Environmental Benefits
- Low 2.5W LED power consumption can reduce energy use compared with higher-wattage conventional lighting
- Selectable colour temperature supports suitable light output without replacing the fitting
- Durable 316 stainless steel construction can extend service life and reduce replacement waste
- Stainless steel is recyclable at end of product life
Warranty Information
Backed by Domus Lighting's 5-year replacement warranty, subject to the manufacturer's warranty conditions, licensed electrician installation and correct installation in accordance with the product instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting wholesalers and retailers.
