Emit Deck Light 55mm Tri-Colour 12/24V 4-Way Antique Brass Domus

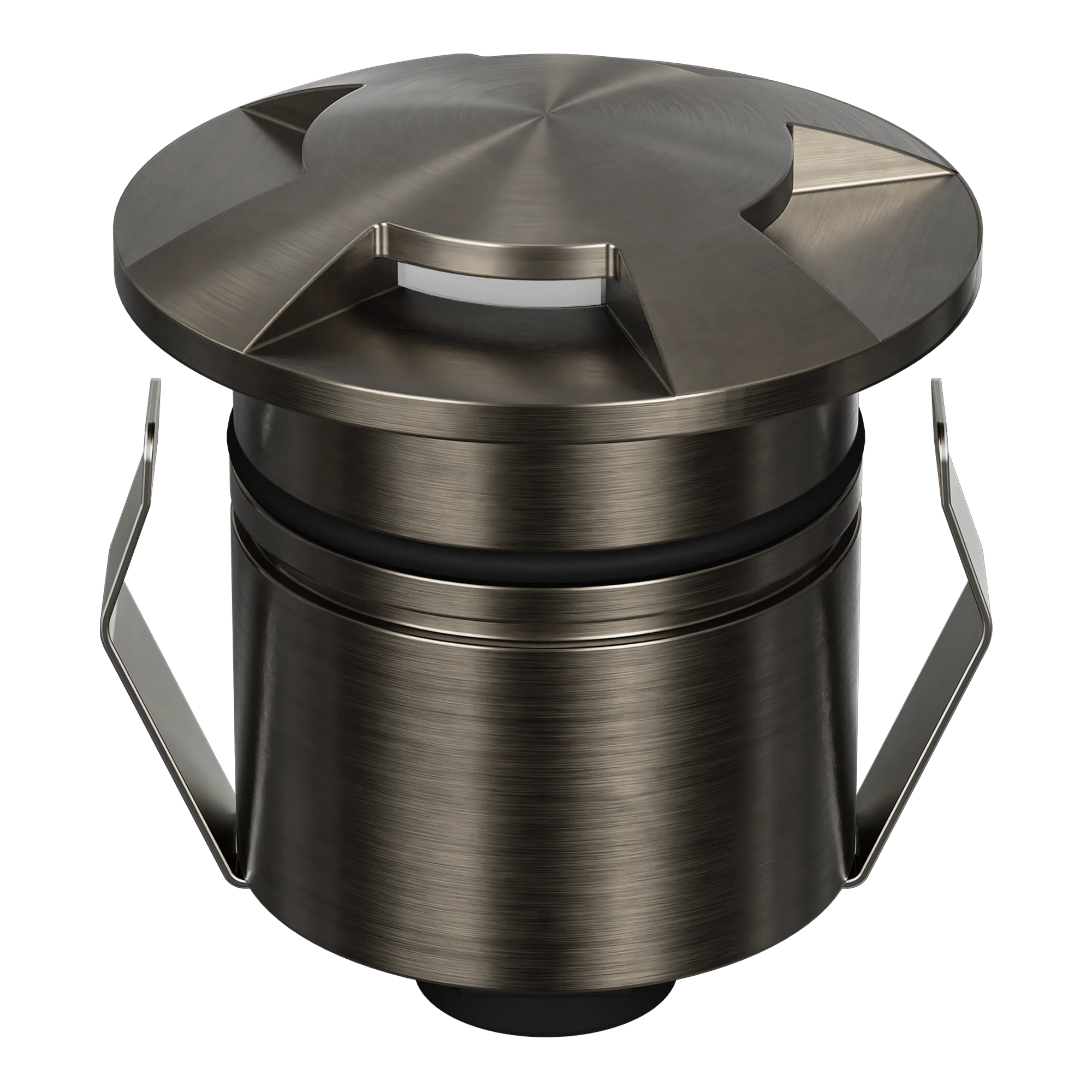

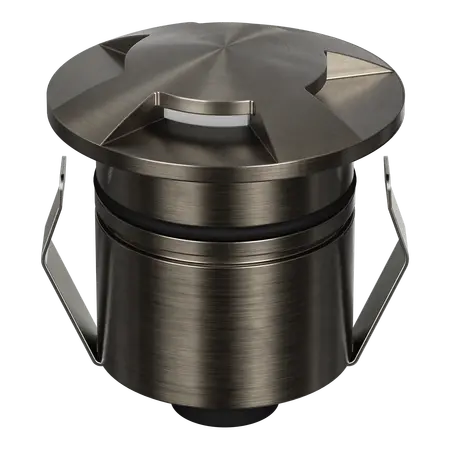

Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 55mm LED Inground Light, Domus Emit 4-Way Deck Light, Tri-Colour Recessed Deck Light
Technical Specifications
- Model: EMIT-55-TRIO-AB
- Variant: 4-Way fascia
- Wattage: 2.5W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- LED Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Cutout Diameter: 43mm without cannister or 48mm with cannister
- Driver Requirement: 12V or 24V constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Antique brass 4-way fascia for directional feature lighting
- Selectable warm white, neutral white and cool white colour temperatures
- Compact 55mm inground and deck light design
- IP67 protection for outdoor and landscape applications
- IK10 impact rating and 1,500kg drive-over load rating
- 36° beam angle supplied as standard
- Compatible with optional beam lenses, honeycomb, linear lens and opal diffuser accessories
- Requires a separate 12/24V DC LED driver
Professional Installation Requirements
- Installation and connection to the 12/24V DC driver should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian wiring requirements. Use a compatible constant-voltage driver and wire fittings in parallel.
Applications
- Residential deck and entertaining-area lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent lighting
- Drive-over inground lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires, applicable to LED luminaires
- AS/NZS 60598.2.1: Particular requirements for fixed general-purpose luminaires, where applicable to the installation
Environmental Benefits
- LED technology provides lower energy consumption than comparable conventional lighting sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and product waste
- Antique brass and other metal components can be recovered through appropriate metal recycling streams
- 12/24V DC operation supports use with efficient low-voltage lighting systems
Warranty Information
5-year replacement warranty as stated on the manufacturer's EMIT-55 product information, subject to Domus Lighting warranty conditions, approved installation and proof of purchase. Domus states that warranty-covered products must be installed by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
