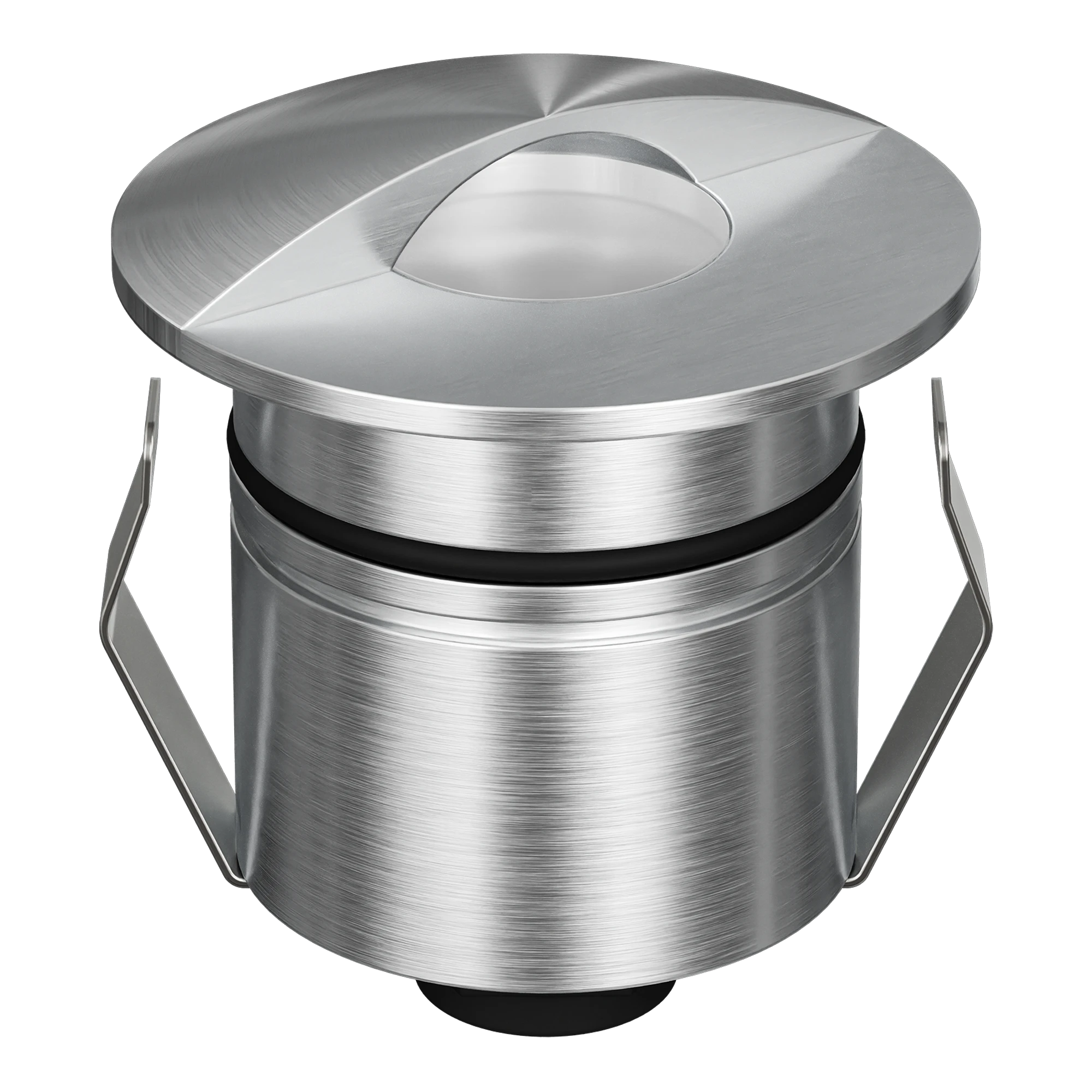

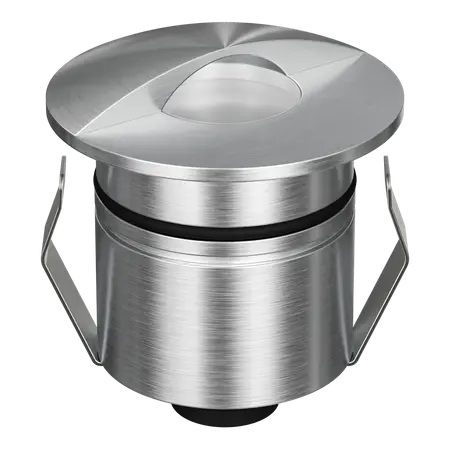

Emit Deck Light 55mm Tri-Colour 12/24V Eyelid 316 Stainless Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-EYELID, 12V Deck Light, 24V Deck Light, Inground LED Light, Eyelid Inground Light
Technical Specifications
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Output: 80 lm at 3000K, 85 lm at 4000K, 88 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: Not dimmable
- Lifespan: 50,000 hours
- Cutout: Ø43 mm without cannister; Ø48 mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Material: 316 stainless steel
- Classification: Class III
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Tri-colour selectable LED output
- Eyelid fascia directs light away from the viewing angle
- Compact 55 mm diameter inground and deck light design
- IP67-rated for outdoor and ground-level applications
- IK10 impact rating and 1500 kg drive-over load rating
- Compatible with 12V or 24V DC constant-voltage LED drivers
- Optional beam lenses, honeycomb and diffuser accessories available
- Non-dimmable integrated CREE LED
- 316 stainless steel fascia for outdoor installations
Professional Installation Requirements
- Installation must be performed by a licensed or suitably qualified electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver and follow the manufacturer's installation instructions.
Applications
- Residential and commercial deck lighting
- Inground landscape lighting
- Pathway and stair lighting
- Architectural feature and accent lighting
- Outdoor garden and hardscape lighting
- Drive-over areas requiring low-profile feature illumination
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires; applicable product-category standard, with specific product certification not stated by the manufacturer.
Environmental Benefits
- LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and product waste
- 316 stainless steel components are durable and recyclable at end of service life
- Low-voltage DC operation can support efficient extra-low-voltage lighting systems when paired with a suitable driver
Warranty Information
Domus product literature states a 5-year replacement warranty for the EMIT-55 Tri-Colour series. Domus's current warranty statement classifies exterior deck and inground lights as 3-year replacement for residential applications and 12-month replacement for commercial applications; confirm the applicable warranty at purchase. Installation by a licensed electrician and compliance with installation instructions are required.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock.
