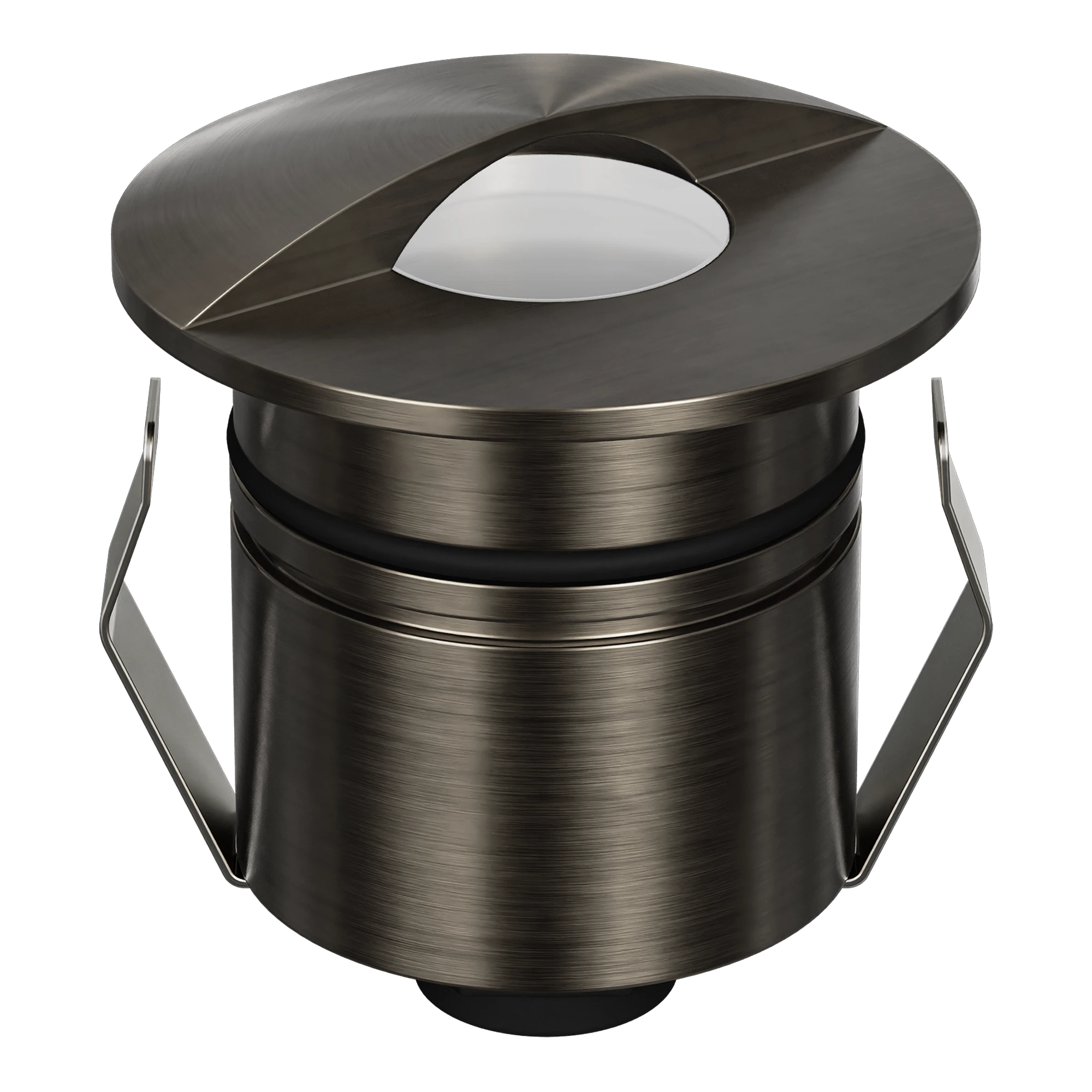

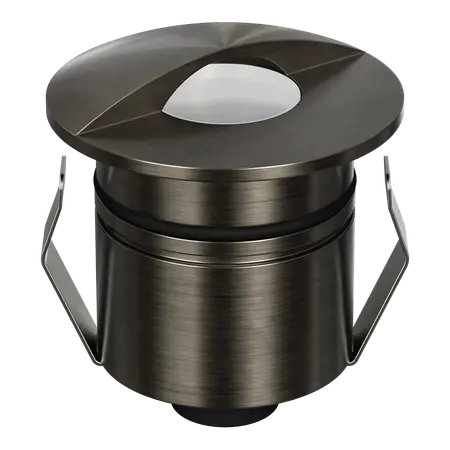

Emit Deck Light 55mm Tri-Colour 12/24V Eyelid Antique Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 55 Eyelid Inground Light, 55mm LED Deck Light, Tri-Colour Recessed Deck Light, Antique Brass Inground Light
Technical Specifications
- Light Source: Integrated 2.5W CREE LED
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Lumen Output: 80 lm at 3000K, 85 lm at 4000K, 88 lm at 5500K
- Colour Rendering Index: ≥90 CRI
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Load Rating: Up to 1500 kg drive-over
- Cutout: 43 mm without cannister or 48 mm with cannister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Variant: EMIT-55-TRIO-EYELID-AB, item number 10119
- Finish: Antique brass
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Eyelid fascia directs light for subtle feature and pathway illumination
- Compact 55 mm diameter recessed form
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance and drive-over load rating
- Optional beam lenses, honeycomb and diffuser accessories available
- Requires a compatible 12/24V DC LED driver
- Non-dimmable integrated LED fitting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a compatible 12/24V DC constant-voltage LED driver and install in accordance with the Domus installation instructions. Ensure the specified cutout and drainage provisions are used for inground installation.
Applications
- Residential and commercial deck lighting
- Pathway and stair lighting
- Landscape and garden feature lighting
- Architectural accent lighting
- Inground and drive-over lighting installations
Standards & Compliance
- Applicable to AS/NZS 60598.1 for luminaires - general requirements and tests
- Applicable to AS/NZS 60598.2.2 for recessed luminaires
Environmental Benefits
- Low 2.5W LED power consumption supports reduced operating energy use
- 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- Metal construction and brass components can be recovered for recycling at end of service life
- 12/24V DC operation allows integration with low-voltage lighting systems
Warranty Information
5-year replacement warranty as specified by Domus Lighting. Warranty eligibility requires installation by a licensed electrician, installation according to Domus instructions and proof of purchase. Australian Consumer Law rights apply.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
