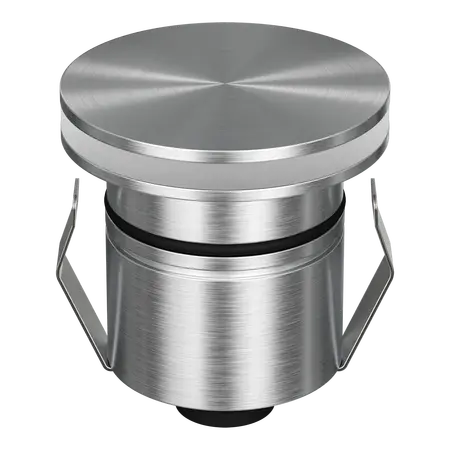

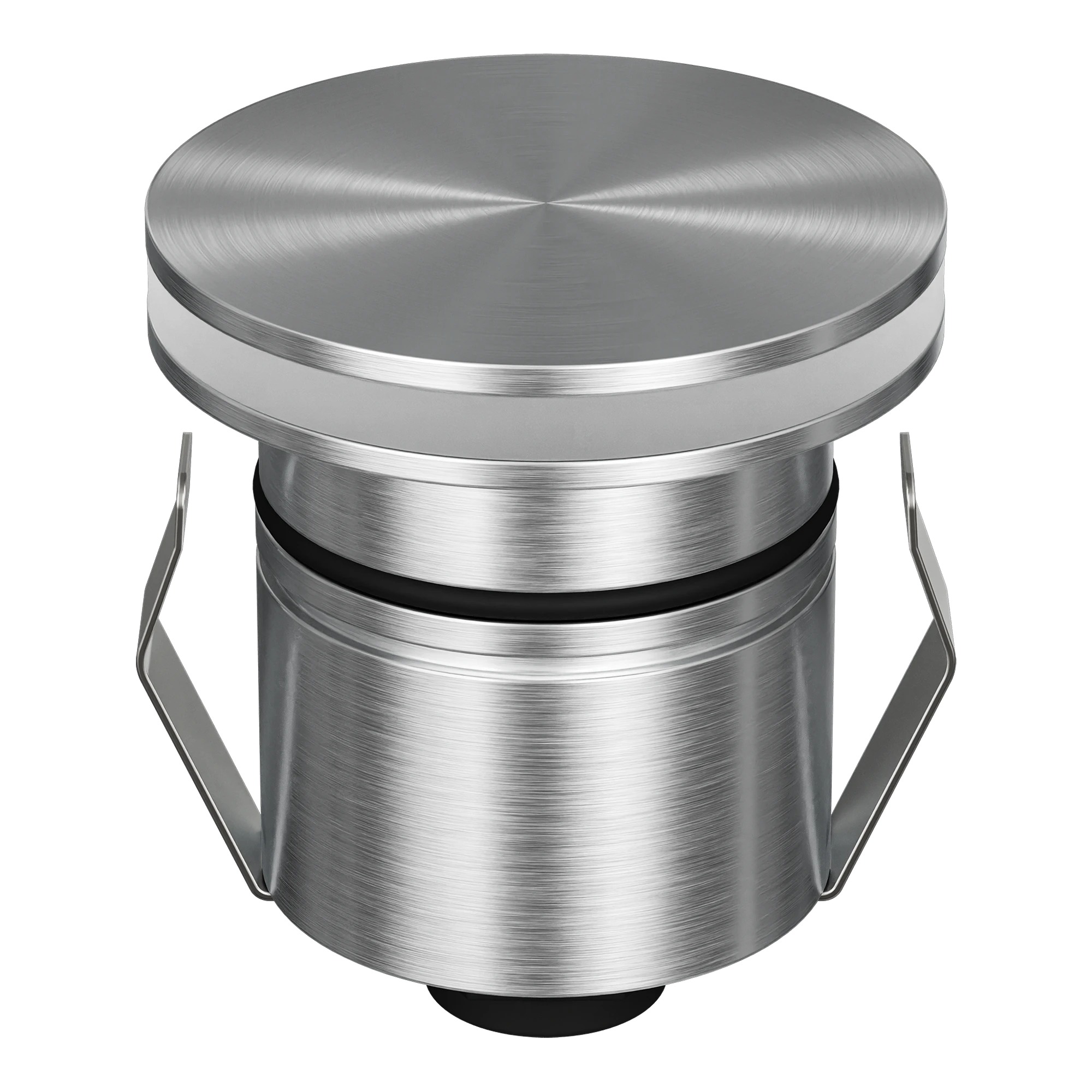

Emit Deck Light 55mm Tri-Colour 12/24V Halo 316 Stainless Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, halo fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-HALO, Emit 55 Halo Inground Light, 55mm LED Deck Light, Mini LED Inground Light
Technical Specifications
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Light Output: 22 lumens at each selectable colour temperature
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Operating Temperature: -20°C to 40°C
- LED Lifespan: 50,000 hours
- Load Rating: 1,500kg drive-over
- Driver Requirement: 12 or 24V DC constant-voltage LED driver, wired in parallel
- Cut-out: 43mm without cannister or 48mm with cannister
- Classification: Class III
- Fascia Material: 316 stainless steel
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Halo fascia for decorative perimeter illumination
- Tri-colour selectable output between warm white, neutral white and white
- Compact 55mm inground and deck light format
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1,500kg drive-over load rating
- 316 stainless steel fascia for outdoor durability
- 36° beam angle supplied as standard
- Optional beam lenses, honeycomb, linear lens and opal diffuser available
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a compatible 12/24V DC constant-voltage LED driver in accordance with the manufacturer's wiring instructions and applicable electrical installation requirements.
Applications
- Residential deck and entertaining area lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Inground architectural accent lighting
- Drive-over outdoor lighting installations
- Commercial landscape and exterior lighting
Standards & Compliance
- AS/NZS 60598.1:2017 - applicable general safety requirements for luminaires
- AS/NZS 3000:2018 - applicable requirements for electrical installations and wiring
Environmental Benefits
- Low 2.5W LED power consumption supports reduced operating energy use
- 50,000-hour LED lifespan can reduce replacement frequency and product waste
- 316 stainless steel components are durable and recyclable at end of service life
- Selectable colour temperature can help optimise lighting output for different applications
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty claims require installation by a licensed electrician and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
