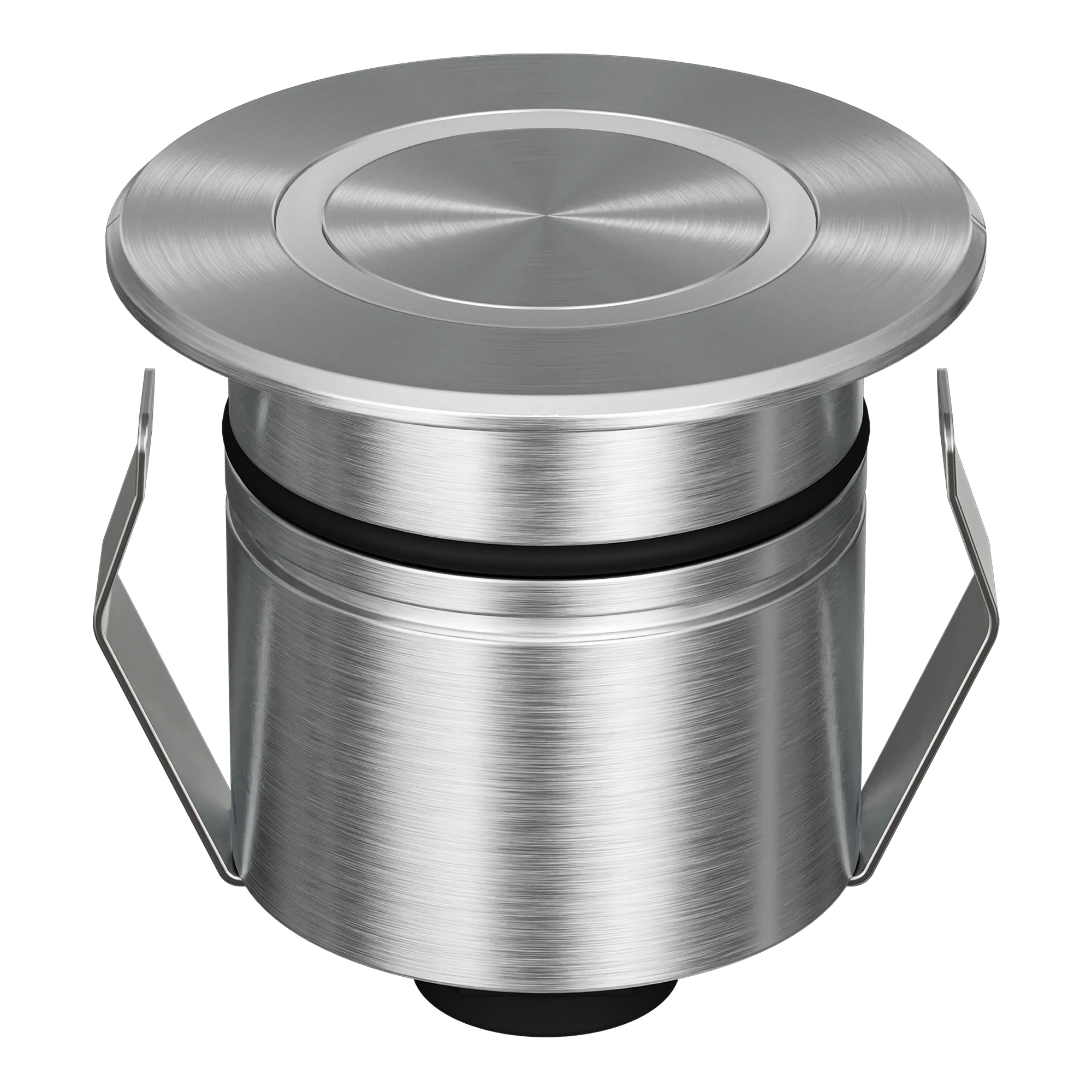

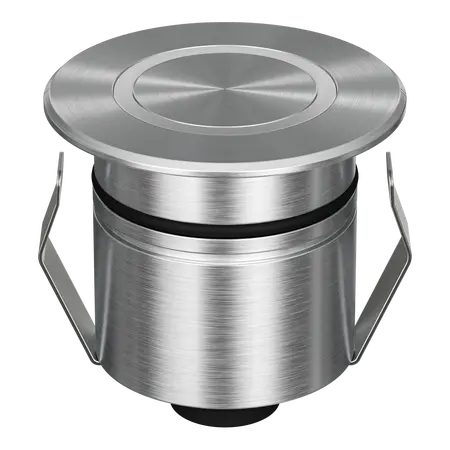

Emit Deck Light 55mm Tri-Colour 12/24V Ring 316 Stainless Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, ring fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-55-TRIO-RING, 55mm LED Deck Light, Tri-Colour Inground Light, Stainless Steel Inground Light
Technical Specifications
- Variant: TRIO tri-colour
- Material: 316 stainless steel fascia
- Input Voltage: 12/24V DC constant voltage
- Power: 2.5W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 28 lm
- Beam Angle: 36° standard; 19° and 60° optional lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Load Rating: 1500 kg drive-over
- Cutout: 43 mm without cannister; 48 mm with cannister
- Electrical Classification: Class III
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Tri-colour selectable output between warm white, neutral white and white
- 316 stainless steel ring fascia for outdoor and coastal lighting applications
- Compact 55 mm diameter inground and deck-light format
- IP67 protection against dust and temporary water immersion
- IK10 impact rating and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Optional 19° and 60° beam lenses, honeycomb, linear lens and opal diffuser available
- Requires a compatible 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be carried out by a licensed electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver, following the manufacturer's installation instructions and applicable wiring requirements. The driver is required and is not included with the light.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Drive-over inground accent lighting
- Architectural and outdoor feature illumination
- Poolside and coastal outdoor lighting where suitable installation conditions are provided
Standards & Compliance
- Applicable luminaire safety requirements: AS/NZS 60598.1:2025
- Electrical installation should comply with AS/NZS 3000:2018
Environmental Benefits
- Low 2.5W power consumption helps reduce operating energy use
- 50,000-hour LED lifespan can reduce replacement frequency and installation waste
- 316 stainless steel components are durable and recyclable at end of service life
- LED technology avoids mercury-containing lamp sources
Warranty Information
Domus product documentation states a 5-year replacement warranty for the EMIT-55 Tri-Colour Ring series. Warranty claims are subject to Domus conditions, including licensed electrician installation, approved installation methods and proof of purchase.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors, subject to distributor stock levels.
