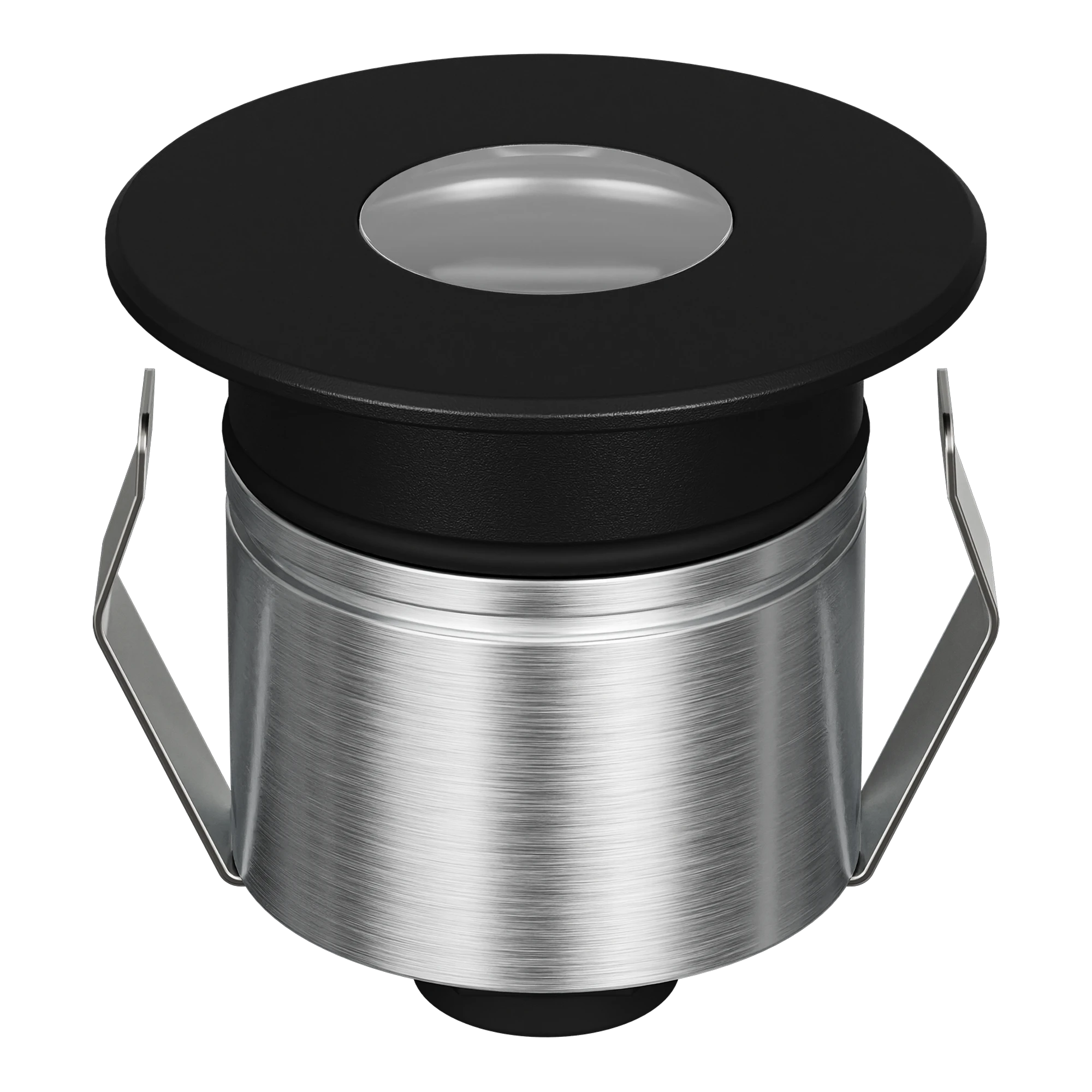

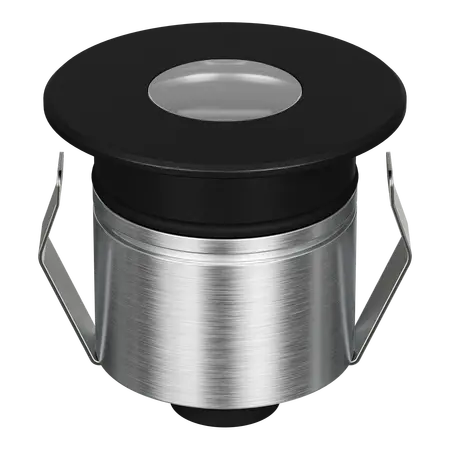

Emit Deck Light 55mm Tri-Colour 12/24V Round Open Black Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, round open fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-55-TRIO-RO, EMIT-55-TRIO-BLK, 55mm LED Inground Light, Recessed LED Deck Light
Technical Specifications
- Variant: Tri-colour selectable
- Input Voltage: 12/24V DC
- Power: 2.5W
- Colour Temperature: 3000K, 4000K or 5500K
- Lumens: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- LED Type: CREE
- Colour Rendering Index: ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Rating: 1500 kg
- Dimming: No
- Lifespan: 50,000 hours
- Cutout: 43 mm without cannister; 48 mm with cannister
- Driver Requirement: 12 or 24V DC constant-voltage LED driver, wired in parallel
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.2 kg
Key Features
- Tri-colour selection between warm white, neutral white and white
- Compact 55mm round open fascia for discreet deck and inground lighting
- Black finish suitable for outdoor landscape and architectural applications
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact rating and 1500kg drive-over rating
- CREE LED with high colour rendering of ≥90 CRI
- Optional 19° and 60° lenses, honeycomb, linear lens and opal diffuser available
- 50,000-hour rated LED lifespan
- Requires a compatible 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a compatible 12/24V DC constant-voltage LED driver and follow the supplied installation instructions and AS/NZS 3000 Wiring Rules.
Applications
- Residential and commercial deck lighting
- Inground landscape lighting
- Pathway and stair lighting
- Architectural feature and accent lighting
- Outdoor garden and hardscape lighting
- Drive-over lighting areas within the specified 1500kg load rating
Standards & Compliance
- AS/NZS 60598.2.2:2016, including amendments, is the applicable standard for recessed luminaires
- AS/NZS 3000:2018 Wiring Rules applies to the electrical installation
Environmental Benefits
- Low 2.5W power consumption helps reduce energy use compared with higher-wattage conventional lighting
- 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- Efficient LED technology provides useful light output from a compact low-voltage fitting
- Metal components and electronic materials should be recycled through appropriate electrical and metal recycling channels at end of life
Warranty Information
Domus product documentation states a 5-year replacement warranty for the EMIT-55 series. Domus's current general warranty table lists exterior deck and inground lights as covered for 3 years for residential applications and 12 months for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with installation guidelines; confirm the applicable term at purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
