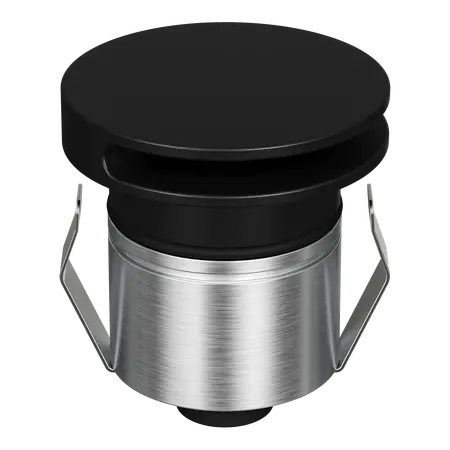

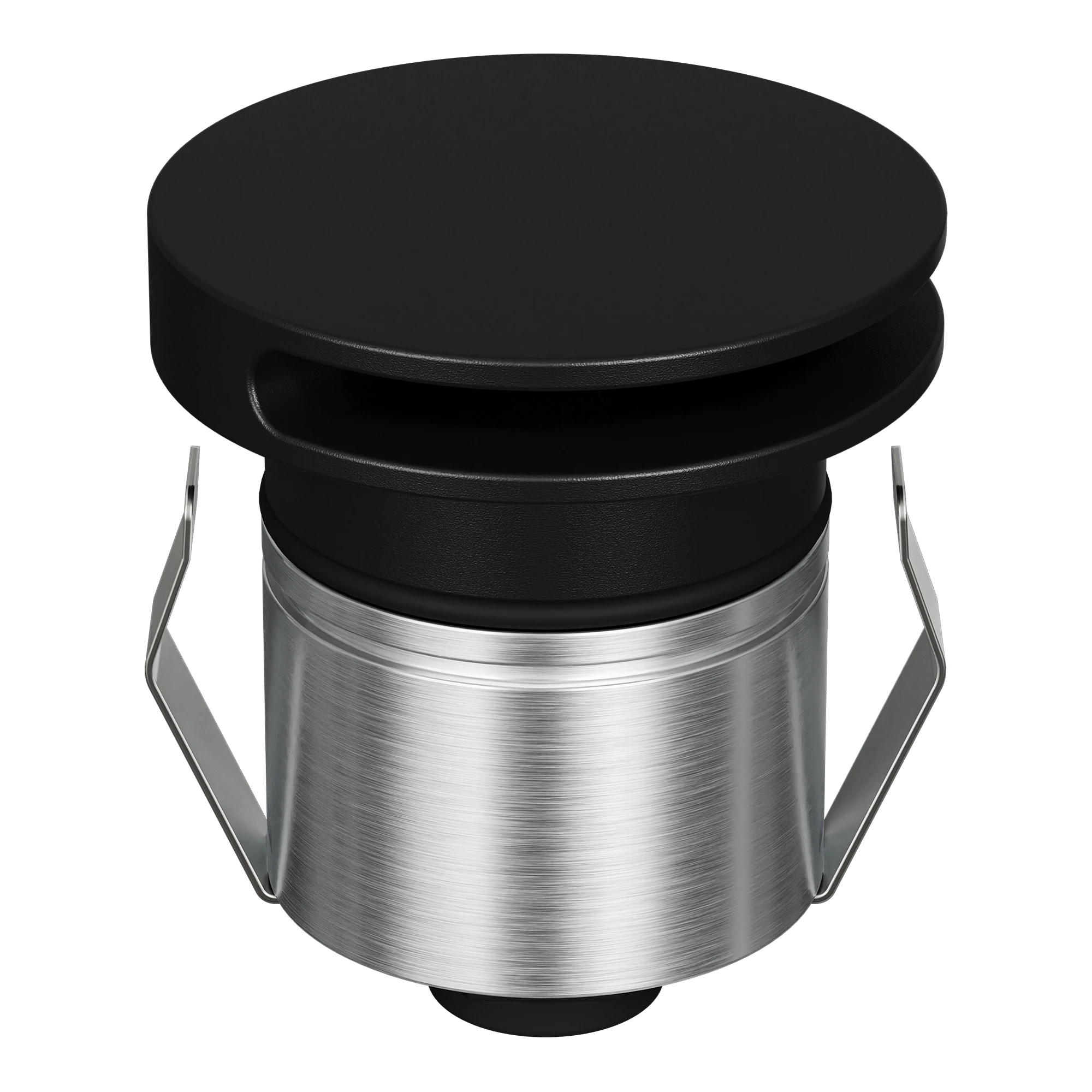

Emit Deck Light 55mm Tri-Colour 12/24V Round Slot Black Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-RND-SLOT, Domus EMIT-55 Tri-Colour Inground Light, 55 mm LED Deck Light, Mini Recessed Inground Light
Technical Specifications
- Product Type: Tri-colour LED inground and deck light
- Input Voltage: 12/24V DC constant voltage
- Power: 2.5W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Non-dimmable
- Rated Life: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cut-out: Ø43 mm without cannister; Ø48 mm with cannister
- Driver Requirement: Requires a compatible 12V or 24V DC constant-voltage LED driver; wire fittings in parallel
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.5 kg
Key Features
- Selectable warm white, neutral white and cool white colour temperatures
- Black round slot fascia for discreet deck, step and inground applications
- Compact 55 mm diameter format for feature and accent lighting
- IP67 construction for protected outdoor and inground installations
- IK10 impact rating and 1,500 kg drive-over load rating
- 36° standard beam angle with optional narrow and wide beam lenses
- Long-life 2.5W CREE LED source
- Requires a separate constant-voltage LED driver
- Designed for landscape, pathway, stair, deck and architectural lighting
Professional Installation Requirements
- Installation should be performed by a professional or licensed electrician. Use only a compatible 12V or 24V DC constant-voltage LED driver, connect the fitting with power isolated, and follow the manufacturer's installation instructions. The driver and any mains-voltage wiring must comply with applicable Australian electrical requirements. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/08/EMIT-55-TRIO-Installation-Manual.pdf))
Applications
- Residential deck and patio lighting
- Landscape and garden feature lighting
- Outdoor pathways and steps
- Architectural accent lighting
- Inground and drive-over feature lighting
- Commercial exterior and hospitality lighting
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules should be followed for the electrical installation, including the associated driver and low-voltage wiring
- AS/NZS 60598.1 is the applicable general safety standard for luminaires
- AS/NZS 60598.2.13 is the relevant particular-requirements standard for ground-recessed luminaires; product-specific certification was not located in the reviewed manufacturer documentation
Environmental Benefits
- Low 2.5W LED power consumption supports reduced operating energy use compared with higher-wattage conventional light sources
- 50,000-hour rated life can reduce replacement frequency and associated material waste
- LED technology provides efficient, long-life illumination for outdoor feature lighting
- 12V/24V DC extra-low-voltage operation can support safer, lower-energy landscape lighting systems when paired with a suitable driver
Warranty Information
Domus documentation for the EMIT-55 states a 5-Year Replacement Warranty. Warranty eligibility is subject to purchase through an authorised distributor, installation by a licensed electrician and compliance with the installation instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/08/EMIT-55-TRIO-RND-SLOT-Data-Sheet.pdf))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; confirm current stock and lead time with the supplying distributor.
