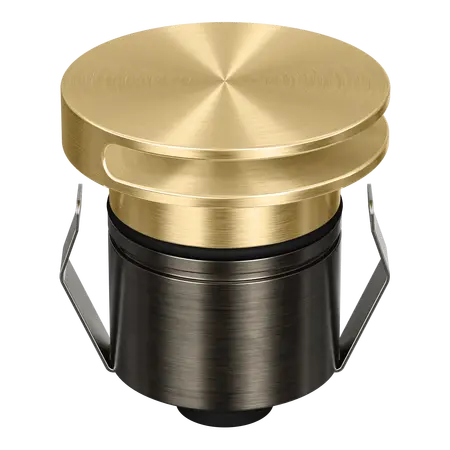

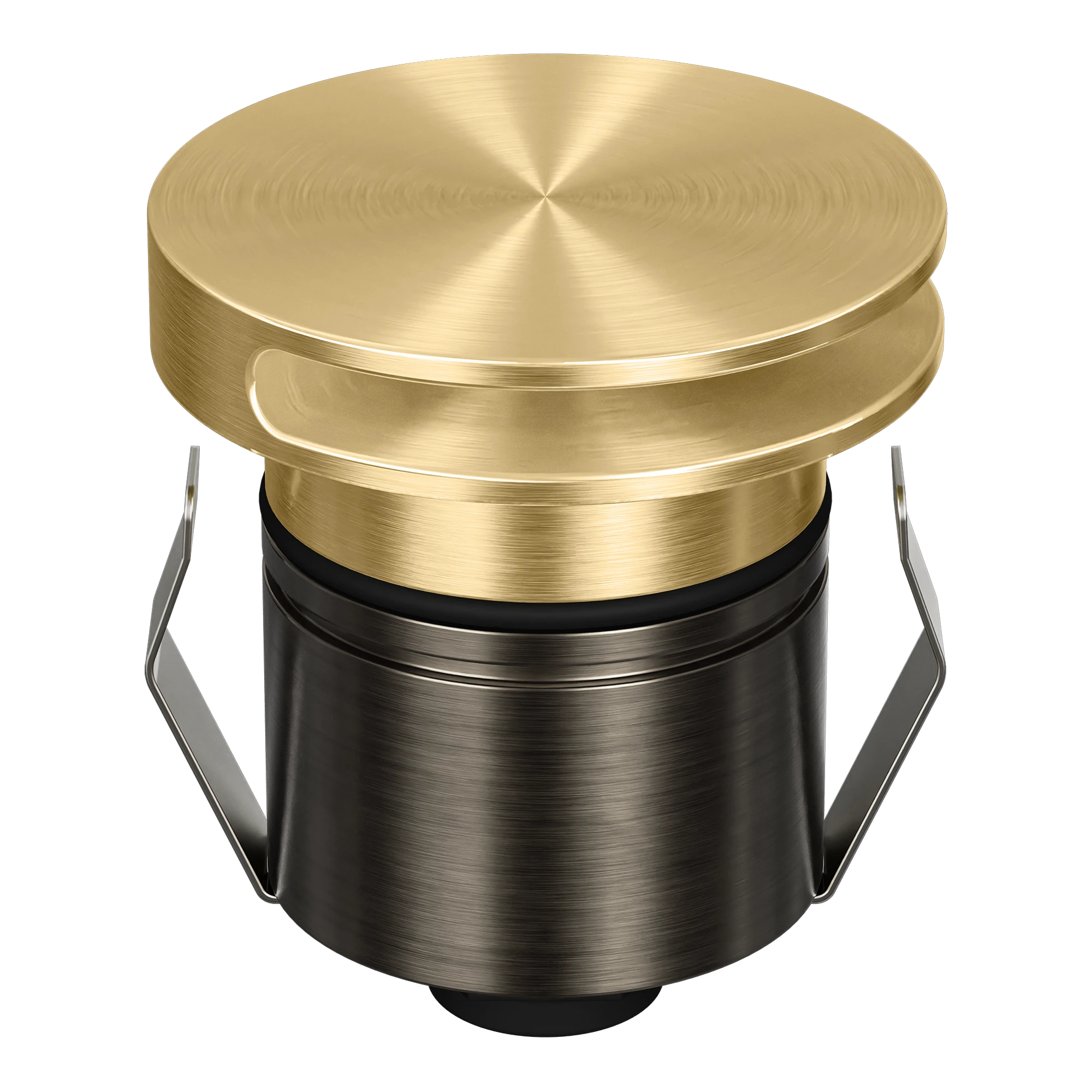

Emit Deck Light 55mm Tri-Colour 12/24V Round Slot Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-55 Round Slot Deck Light, Tri-Colour Inground Light, Recessed LED Deck Light
Technical Specifications
- Power: 2.5W
- Input Voltage: 12/24V DC
- Light Source: CREE LED
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Output: 28 lumens at each colour temperature
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- LED Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Installation Cutout: 43mm without canister or 48mm with canister
- Finish: Brass
- Classification: Class III extra-low-voltage luminaire
- Operating Temperature: -20°C to 40°C
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Tri-colour switching between warm white, neutral white and white light
- Round slot fascia for discreet directional deck and inground lighting
- Compact 55mm form factor for feature, pathway, stair and landscape lighting
- IP67-rated construction for suitable outdoor applications
- IK10 impact resistance and 1,500kg drive-over load rating
- High colour rendering with CRI ≥90
- Optional beam lenses, honeycomb, linear lens and opal diffuser available
- Requires a separate 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, connect fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000 where applicable.
Applications
- Residential and commercial deck lighting
- Inground feature and accent lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Architectural outdoor lighting
- Drive-over lighting where the installation surface and load conditions are suitable
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements and tests for luminaires
- AS/NZS 60598.2.2: Applicable particular requirements for recessed luminaires
- AS/NZS 3000: Wiring and installation requirements applicable to the electrical installation
Environmental Benefits
- LED technology provides low-power illumination at 2.5W
- 50,000-hour rated LED lifespan can reduce replacement frequency and waste
- Brass components are recyclable at end of service life
- 12/24V DC operation supports integration with efficient low-voltage lighting systems
Warranty Information
The Domus product page states a 5-year replacement warranty for the EMIT-55 range. Domus' current warranty statement categorises exterior deck and inground lights as covered for 3 years in residential applications and 12 months in commercial applications; confirm the applicable term for this item at purchase. Warranty eligibility requires installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
