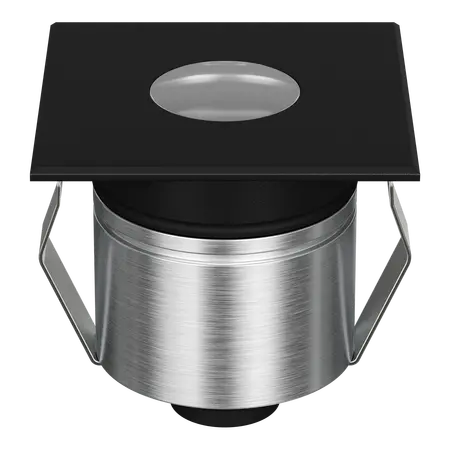

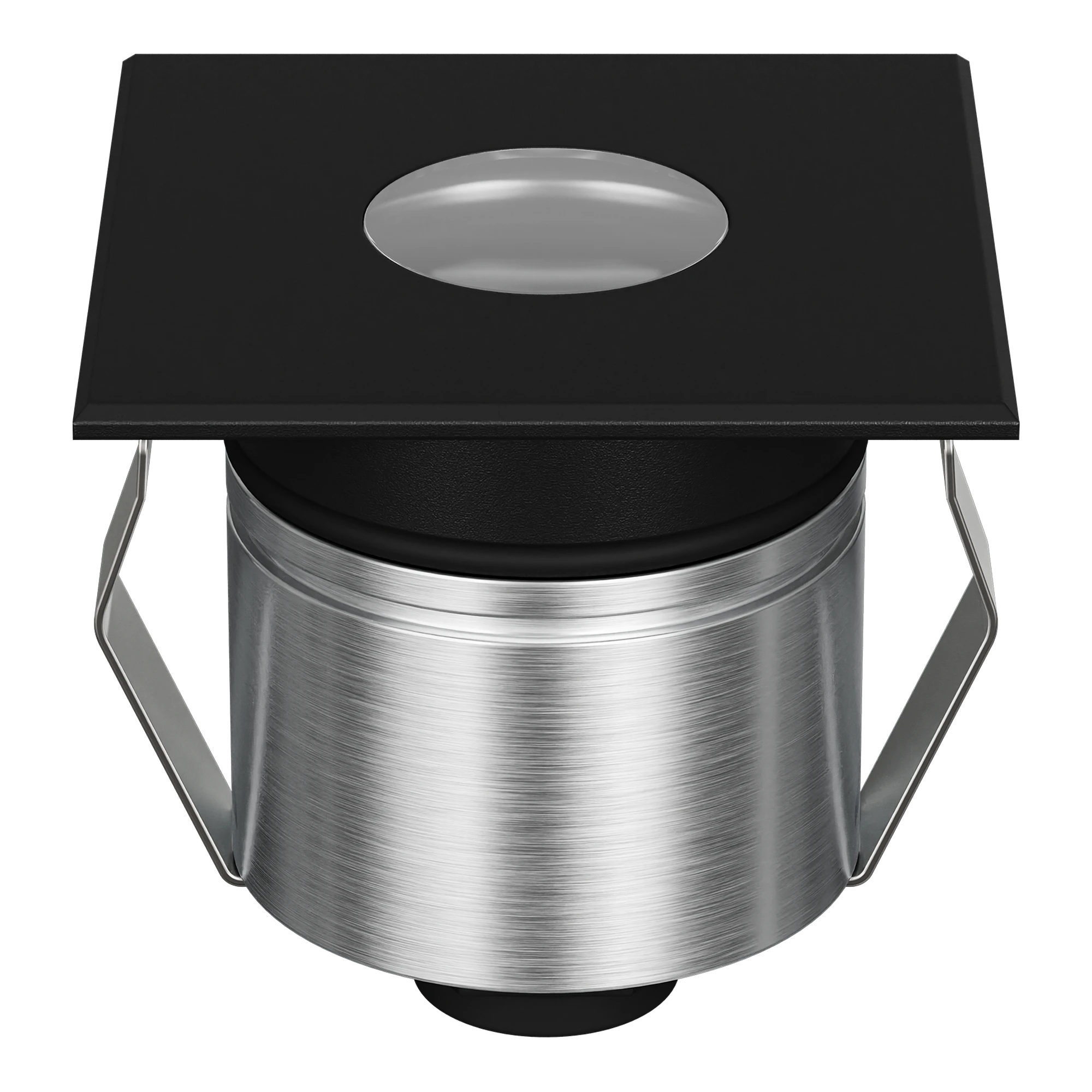

Emit Deck Light 55mm Tri-Colour 12/24V Square Open Black Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-55-TRIO-SO-BLK, Emit 55 Tri-Colour Inground Light, Square Open Deck Light, Recessed LED Inground Light
Technical Specifications
- Light Source: Integrated CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K / 4000K / 5500K selectable
- Luminous Flux: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 43mm without cannister; 48mm with cannister
- Load Rating: 1500kg drive-over
- Driver Requirement: 12V or 24V constant-voltage LED driver, wired in parallel
- Electrical Classification: Class III
- Operating Temperature: -20°C to 40°C
- Finish: Black
- Fascia Style: Square open
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Compact 55mm square fascia for recessed deck and inground installation
- IP67 protection for suitable exterior applications
- IK10 impact rating and 1500kg drive-over load rating
- Standard 36° beam angle for feature and accent lighting
- Optional 19° and 60° lenses, honeycomb, linear lens and opal diffuser accessories
- Requires a separate 12/24V DC constant-voltage LED driver
- Non-dimmable integrated LED fitting
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect fittings in parallel, and follow the manufacturer's installation instructions. The driver and electrical connections must be suitably protected for the installation environment.
Applications
- Residential deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural accent and façade lighting
- Recessed inground lighting
- Drive-over exterior lighting where the installation is correctly prepared
Standards & Compliance
- Relevant luminaire safety standard: AS/NZS 60598.1:2025
- Relevant extra-low-voltage lighting standard: AS/NZS 60598.2.23:2021
Environmental Benefits
- Low 2.5W LED power consumption can reduce energy use compared with higher-wattage conventional lighting
- 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- Selectable colour temperature supports task-appropriate lighting and can help avoid over-lighting
- Metal components and electronic materials should be recycled through appropriate electrical and metal recovery streams at end of life
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55-TRIO series, subject to proof of purchase, licensed electrician installation, correct installation in accordance with the manufacturer's instructions and other warranty conditions. Standard warranty is replacement only and excludes removal or reinstallation costs.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
