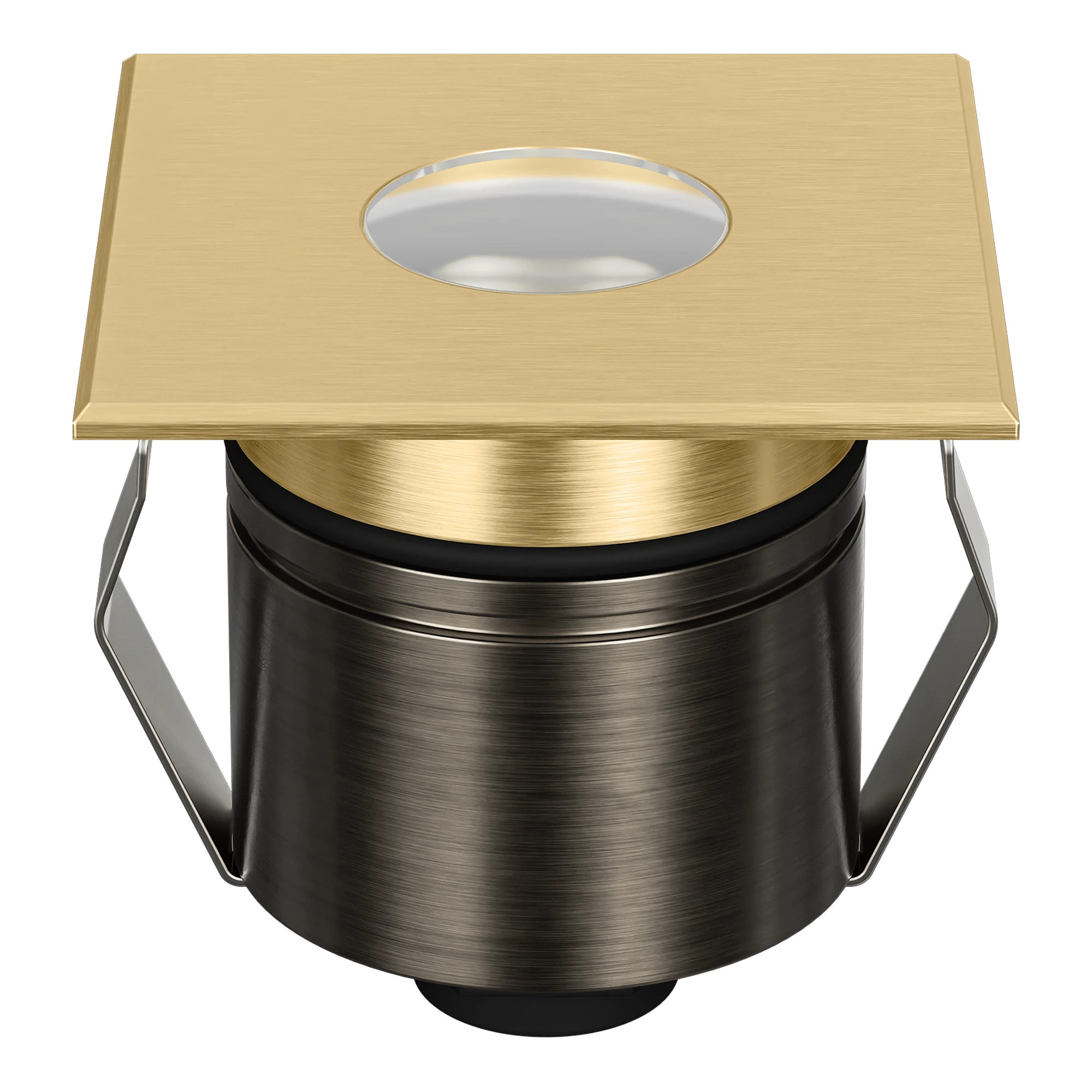

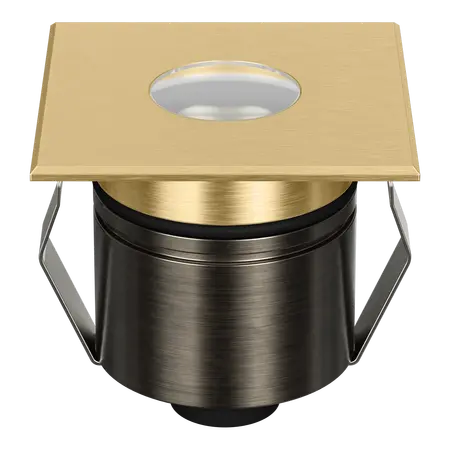

Emit Deck Light 55mm Tri-Colour 12/24V Square Open Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-55-SO, EMIT-55-TRIO-SO, 55mm LED Inground Light, Square Open Deck Light
Technical Specifications
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Flux: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- Beam Angle: 36° standard; 19° and 60° optional lenses available
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cut-out: 43mm without canister or 48mm with canister
- Load Rating: 1500kg drive-over
- Classification: Class III
- Driver Requirement: 12/24V DC LED constant-voltage driver, wired in parallel
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Square open fascia with brass metalware
- Tri-colour selection between warm white, neutral white and white
- Compact 55mm inground and deck-light format
- 36° standard beam for feature and accent lighting
- IP67 protection for outdoor and inground applications
- IK10 impact rating and 1500kg drive-over rating
- Requires a separately supplied 12/24V DC constant-voltage LED driver
- Suitable for landscape, pathway, stair and architectural lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a compatible 12/24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Inground architectural accent lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.1:2025 - applicable general safety requirements and tests for luminaires; product-specific certification was not stated in the available documentation
- AS/NZS 3000 - applicable requirements for electrical installation and connection of the low-voltage lighting system
Environmental Benefits
- Low 2.5W LED power consumption supports reduced operating energy use
- Long 50,000-hour rated LED lifespan can reduce replacement frequency and waste
- Brass metal components can be recovered and recycled at end of service life
- 12/24V DC extra-low-voltage operation can support efficient centralised outdoor lighting systems
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55 range, subject to purchase through an authorised distributor, licensed-electrician installation, correct installation and warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
