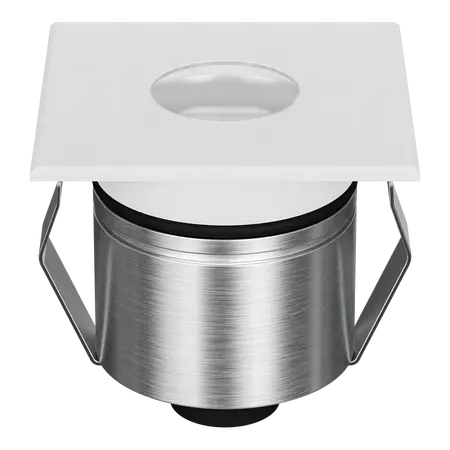

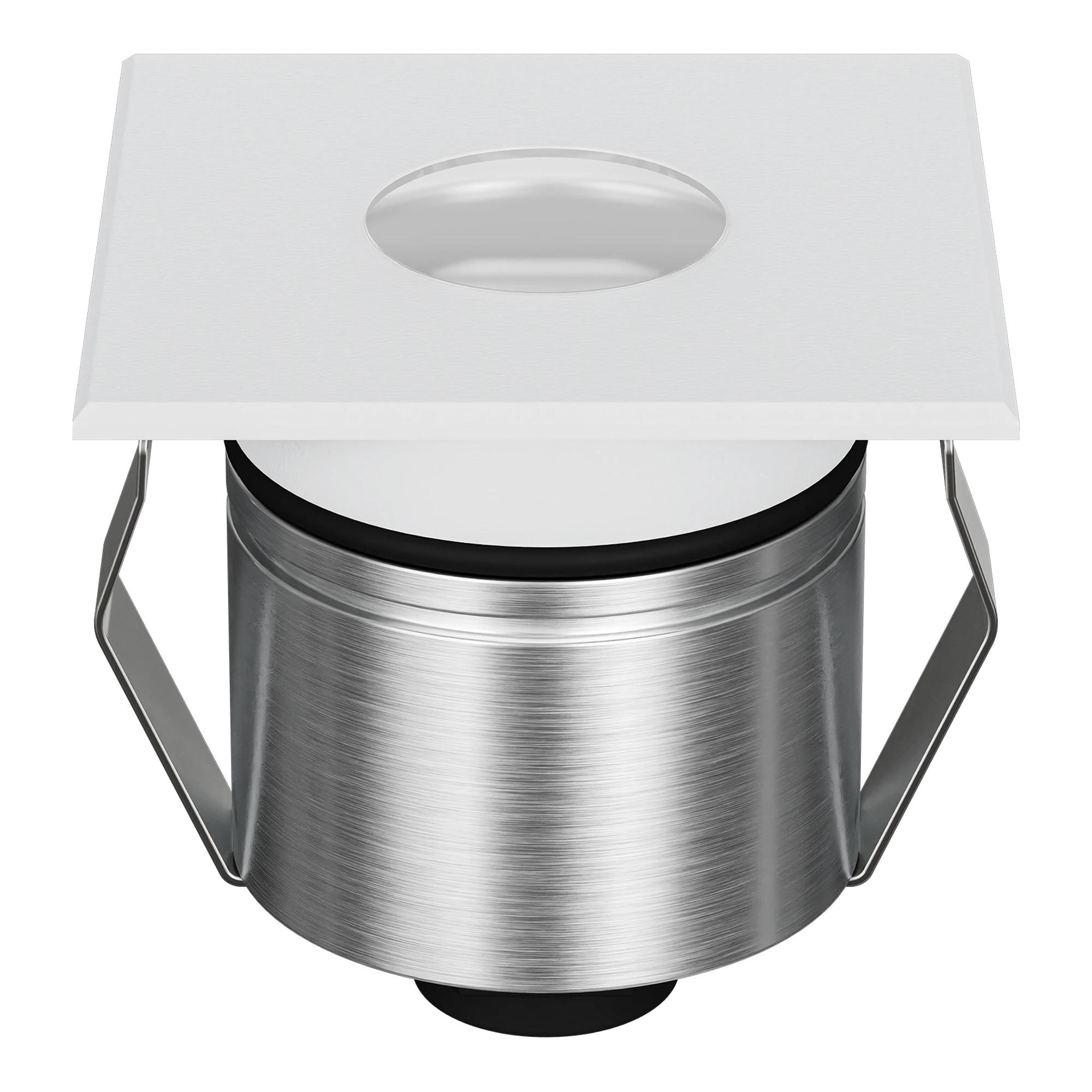

Emit Deck Light 55mm Tri-Colour 12/24V Square Open White Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-WHT, Emit 55 Inground Light, Square Open Inground Light, 55mm LED Deck Light
Technical Specifications
- Item Number: 11525
- Input Voltage: 12/24V DC constant voltage
- Power: 2.5W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- Beam Angle: 36° standard; 19° and 60° optional lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- IP Rating: IP67
- IK Rating: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Lifespan: 50,000 hours
- Cut-out: 43 mm without cannister; 48 mm with cannister
- Wiring: Connect in parallel
- Driver Requirement: 12/24V DC constant-voltage LED driver, sold separately
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.35 kg
Key Features
- Selectable tri-colour light output from 3000K, 4000K and 5500K
- White square open fascia for deck, pathway and architectural lighting
- Compact 55mm square format
- IP67 protection for outdoor and inground applications
- IK10 impact resistance
- 1500kg drive-over load rating
- Optional 19° and 60° beam lenses, honeycomb, linear lens and opal diffuser accessories
- Non-dimmable integrated CREE LED
- 5-year replacement warranty stated by the manufacturer
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, connect fittings in parallel, and follow the manufacturer's installation instructions and applicable electrical requirements.
Applications
- Residential and commercial deck lighting
- Outdoor pathways, steps and stairs
- Landscape and garden feature lighting
- Architectural accent lighting
- Inground and drive-over lighting installations
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements for luminaires
- AS/NZS 3000: Applicable requirements for low-voltage electrical installation and wiring
Environmental Benefits
- Low 2.5W power consumption helps reduce operating energy use compared with higher-wattage conventional light sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- LED technology provides efficient operation without mercury-containing fluorescent lamps
- Metal fascia and housing components may be recyclable at end of service life, subject to local recycling facilities
Warranty Information
5-year replacement warranty stated on the manufacturer's EMIT-55 product data sheet. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation requirements.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
