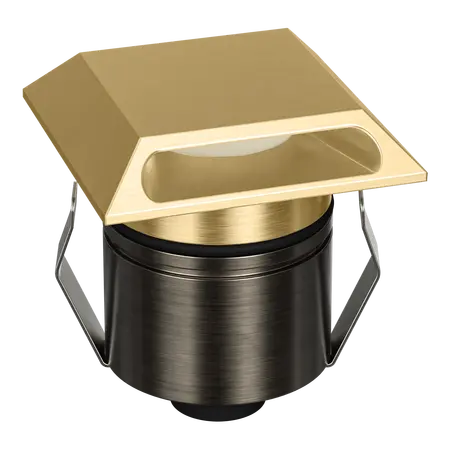

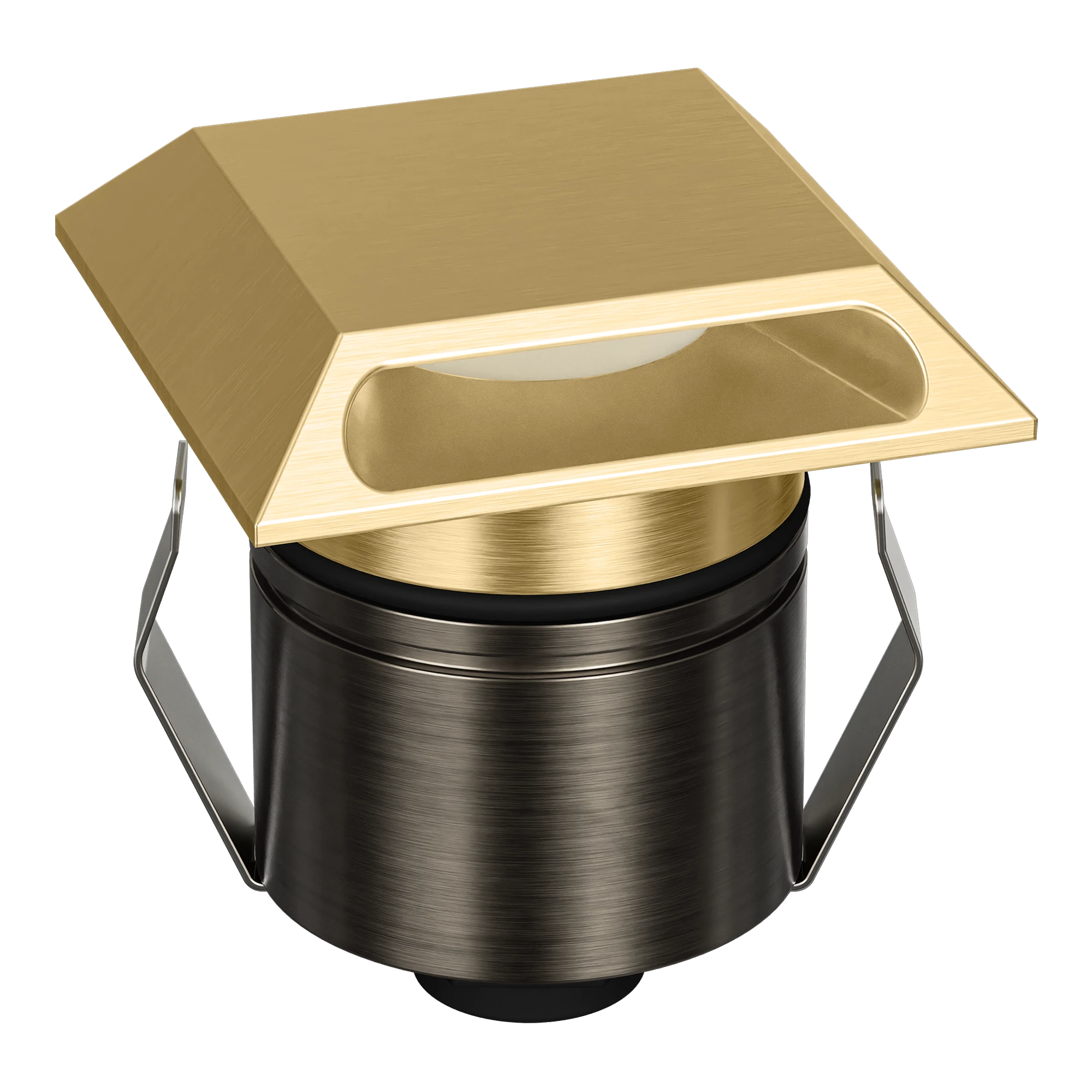

Emit Deck Light 55mm Tri-Colour 12/24V Square Slot Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 55 mm LED Inground Light, Recessed Deck Light, Mini Inground Light, Tri-Colour Step Light
Technical Specifications
- Finish: Brushed brass metalware with brass body
- Style: Square slot
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 22 lm at each selectable colour temperature
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- LED Lifespan: 50,000 hours
- Driver Requirement: Separate 12V or 24V DC constant-voltage LED driver, wired in parallel
- Cutout: 43 mm without cannister or 48 mm with cannister
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.45 kg
Key Features
- Tri-colour selection between warm white, neutral white and white light
- Square slot fascia for discreet directional feature lighting
- Brushed brass finish with brass construction
- IP67 protection for suitable outdoor and inground applications
- IK10 impact rating and 1500 kg drive-over load rating
- Compact 55 mm fitting suitable for decks, steps, pathways and architectural features
- Optional beam lenses, honeycomb, linear lens and opal diffuser accessories available
- Low-power 2.5W LED design with 50,000-hour rated lifespan
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Connect the fitting to a correctly matched 12V or 24V DC constant-voltage LED driver, with the fittings wired in parallel and installed in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Outdoor steps and stairways
- Landscape and pathway lighting
- Architectural feature and accent lighting
- Drive-over inground lighting where the 1500 kg load rating is suitable
- Recessed garden and outdoor entertaining areas
Standards & Compliance
- AS/NZS 60598.1:2025 — applicable general safety requirements for luminaires; product-specific compliance declaration not published
- AS/NZS 3000:2018 — applicable wiring and installation requirements for the low-voltage driver circuit
Environmental Benefits
- Low 2.5W power consumption supports reduced operating energy use
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Brass components are durable and recyclable at end of service life
- Separate driver arrangement allows the driver to be serviced or replaced independently of the light fitting
Warranty Information
The current Domus product page and product datasheet state a 5-year replacement warranty. Domus's general warranty statement lists exterior deck and inground lights as 3 years residential and 12 months commercial; confirm the applicable warranty term for this specific purchase and application. Warranty eligibility requires licensed electrician installation and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
