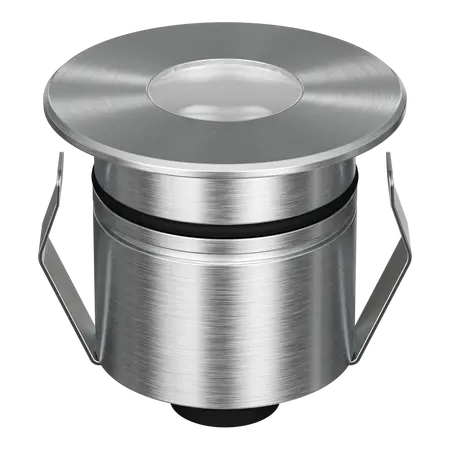

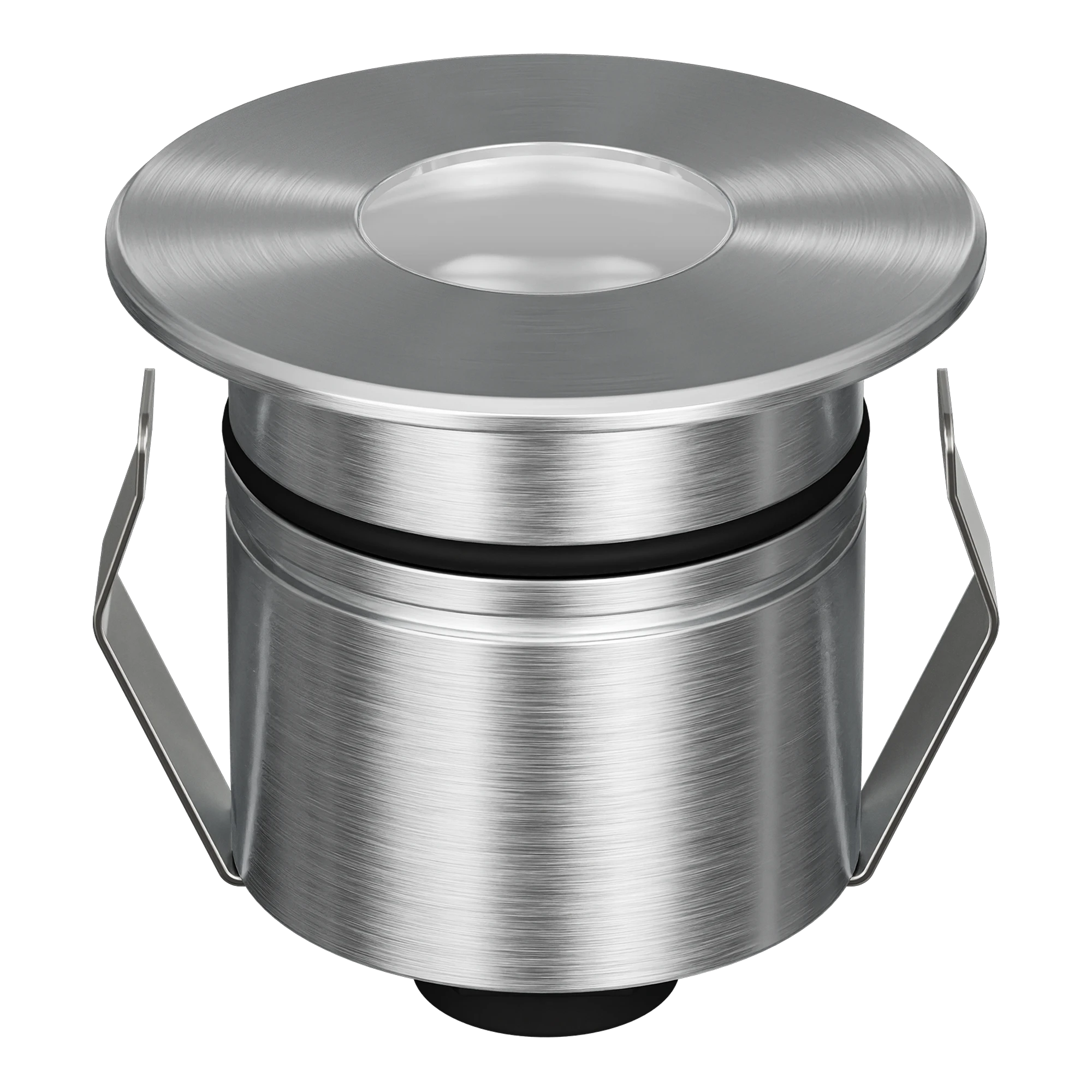

Emit Deck Light 55mm Tri-Colour Round Open 316 Stainless Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, round open fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-STS, Domus Emit 55 Inground Light, 55mm LED Deck Light, Tri-Colour Inground Light
Technical Specifications
- Item Number: EMIT-55-TRIO-STS
- Variant: Tri-colour selectable
- Material: 316 stainless steel
- Wattage: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Lumen Output: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Drive-Over Rating: 1500 kg
- Dimming: Not dimmable
- LED Lifespan: 50,000 hours
- Cutout Diameter: 43 mm without cannister; 48 mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Round open fascia for low-profile deck and inground lighting
- 316 stainless steel fascia suited to exterior applications
- Selectable warm white, neutral white and white colour temperatures
- 36° standard beam angle with optional interchangeable lenses
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact rating and 1500 kg drive-over rating
- Requires a separate 12/24V DC constant-voltage LED driver
- Suitable for feature, landscape, pathway and architectural lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect the fitting to a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions and applicable Australian electrical installation requirements.
Applications
- Residential and commercial deck lighting
- Inground landscape lighting
- Pathway and stair lighting
- Architectural feature and accent lighting
- Drive-over exterior lighting where the 1500 kg load rating is suitable
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations and wiring requirements applicable to the installation of low-voltage and extra-low-voltage lighting systems
- AS/NZS 60598.1:2025 – General requirements and tests for luminaires; applicable to luminaire design and assessment
Environmental Benefits
- Low 2.5W power consumption supports reduced energy use compared with higher-wattage exterior lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Durable 316 stainless steel construction supports extended service life in exterior applications
- LED technology avoids the need for mercury-containing fluorescent lamps
Warranty Information
Domus lists the EMIT-55 series with a 5-year replacement warranty. Domus warranty claims require installation by a licensed electrician and compliance with the installation instructions. The current general warranty statement lists exterior deck and inground lights separately as 3 years for residential applications and 12 months for commercial applications, so the applicable term should be confirmed at purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
