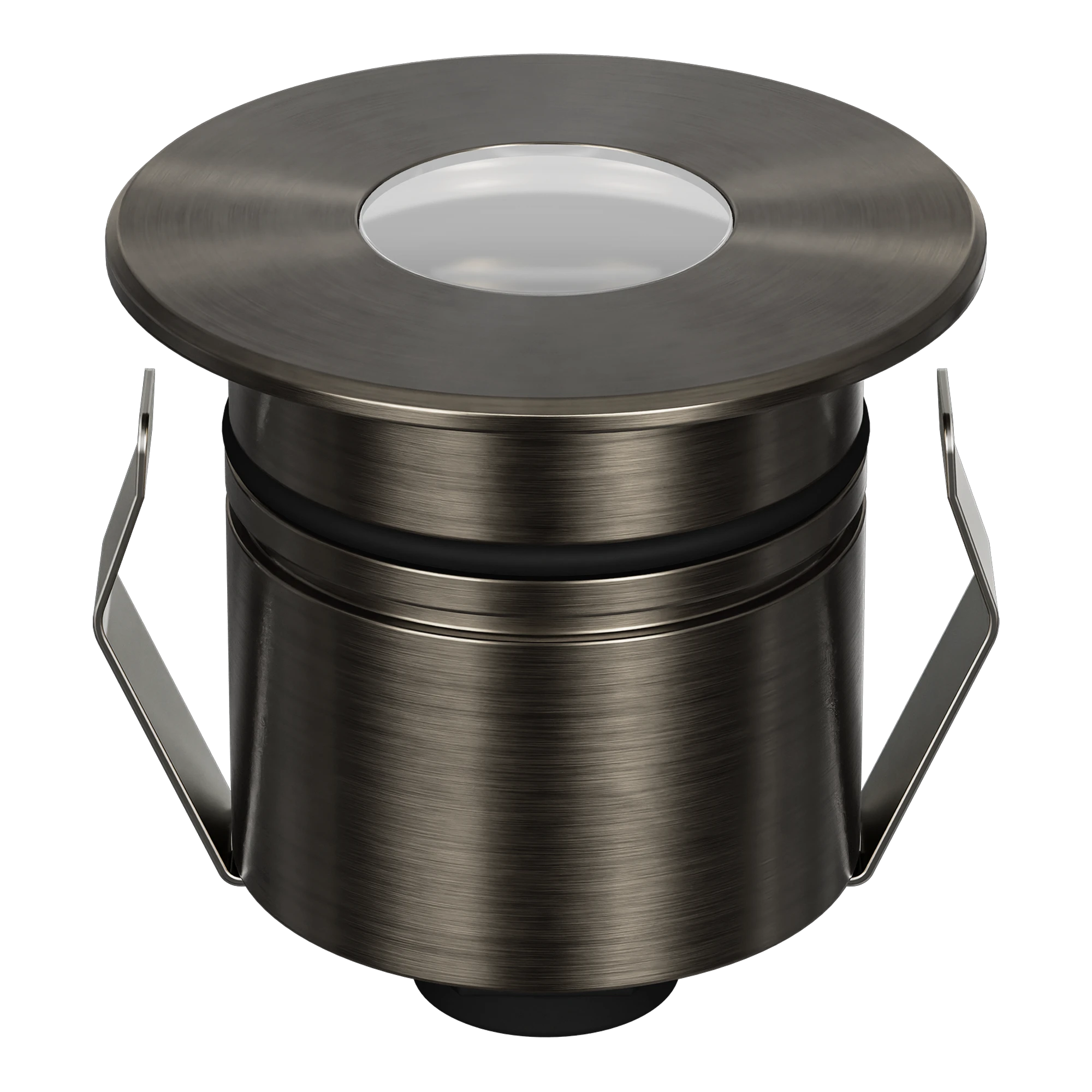

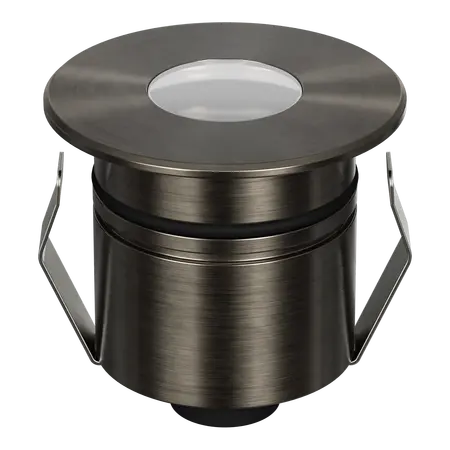

Emit Deck Light 55mm Tri-Colour Round Open Antique Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, round open fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-55 Tri-Colour Inground Light, Domus 10117 LED Deck Light, 55mm Recessed Step Light
Technical Specifications
- Variant: Round Open, Antique Brass, variant 10117
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Non-dimmable
- Rated Life: 50,000 hours
- Cut-out Diameter: 43mm without cannister or 48mm with cannister
- Wiring: Connect fittings in parallel
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, not included
- Dimensions (H x L x W): 82mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Round open fascia in antique brass finish
- Tri-colour selection between warm white, neutral white and white
- Compact 55mm recessed deck and inground light format
- IP67 protection for outdoor and inground applications
- IK10 impact resistance
- Low 2.5W LED power consumption
- Optional beam-angle lenses, honeycomb and diffuser accessories
- Designed for use with a separate 12V or 24V DC LED driver
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use a compatible 12V or 24V DC constant-voltage LED driver, install the driver in a suitable protected location, and ensure all outdoor cable joints maintain the required ingress protection.
Applications
- Residential and commercial deck lighting
- Outdoor steps, walkways and stair treads
- Garden and landscape feature lighting
- Recessed patio and entertaining-area lighting
- Inground architectural and feature lighting
Standards & Compliance
- AS/NZS 60598.1:2017 — applicable general safety requirements for LED luminaires; product-specific declaration of compliance should be confirmed with Domus Lighting
- AS/NZS 3000 — applicable wiring and installation requirements for the associated electrical installation
Environmental Benefits
- Low 2.5W LED power demand supports reduced operating energy use
- Long 50,000-hour rated life can reduce replacement frequency and product waste
- Metal construction and brass components can be recycled at end of service life
- 12/24V DC operation enables integration with efficient low-voltage lighting systems
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
