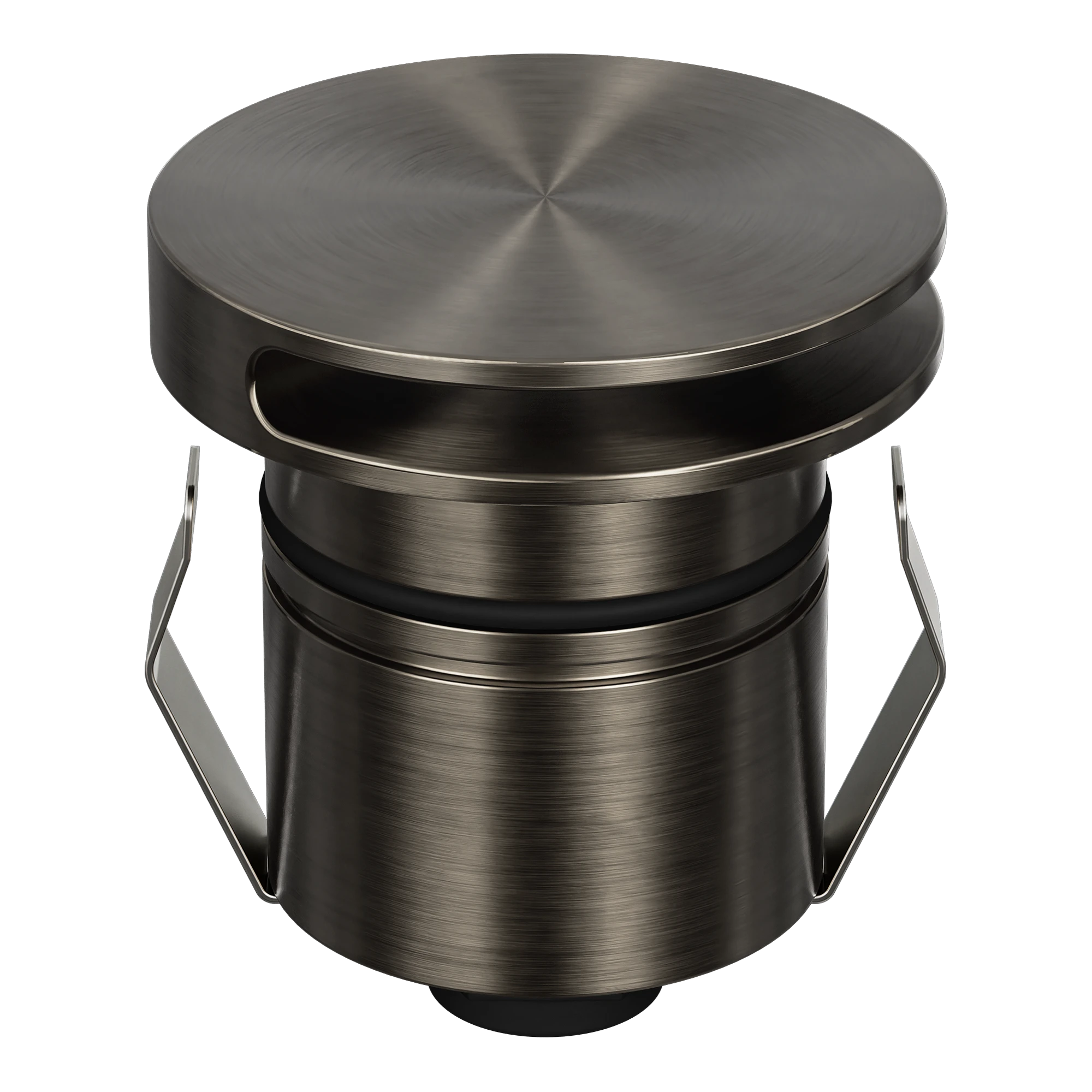

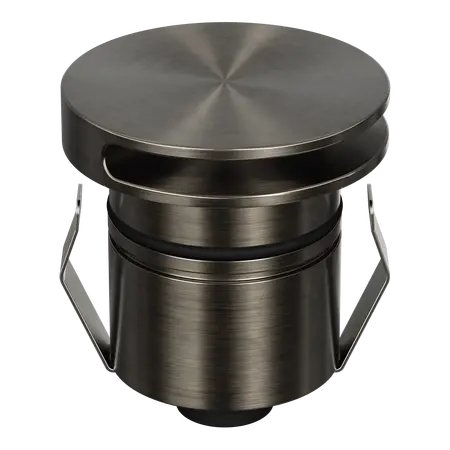

Emit Deck Light 55mm Tri-Colour Round Slot Antique Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit 55 LED Inground Light, Emit 55 Tri-Colour Deck Light, 12V/24V LED Deck Light, Antique Brass Inground Light
Technical Specifications
- Wattage: 2.5W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- Colour Rendering Index: CRI ≥90
- LED Type: CREE
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Material/Finish: Antique brass fascia with metal housing
- Cutout: Ø43mm without cannister or Ø48mm with cannister
- Driver Requirement: 12V or 24V constant-voltage LED driver; wire in parallel
- Class: Class III
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Tri-colour selectable output for warm white, neutral white and white illumination
- Round slot fascia in an antique brass finish
- Compact 55mm overall diameter for deck, pathway and inground applications
- IP67-rated construction for outdoor installation
- IK10 impact resistance and 1500kg drive-over load rating
- Standard 36° beam angle with optional 19° and 60° lenses
- High colour rendering with CRI ≥90
- Requires a separate compatible 12/24V DC constant-voltage LED driver
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect only to a compatible 12V or 24V DC constant-voltage LED driver, with the fittings wired in parallel. Follow the manufacturer's installation instructions and applicable electrical installation requirements.
Applications
- Residential deck and entertaining-area lighting
- Outdoor steps, pathways and stairs
- Garden and landscape feature lighting
- Drive-over inground accent lighting
- Architectural and commercial exterior lighting
Standards & Compliance
- AS/NZS 60598.1:2017 - applicable general requirements and tests for luminaires
- AS/NZS 60598.2.23:2021 - applicable requirements for extra-low-voltage lighting systems
- AS/NZS 3000 - relevant wiring and installation requirements for the associated electrical installation
Environmental Benefits
- LED technology provides efficient illumination with a low 2.5W power demand
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Low-voltage 12/24V DC operation supports safer, efficient outdoor lighting systems
- Metal fascia and housing components can be recycled at end of service life
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-55 series, subject to the manufacturer's warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
