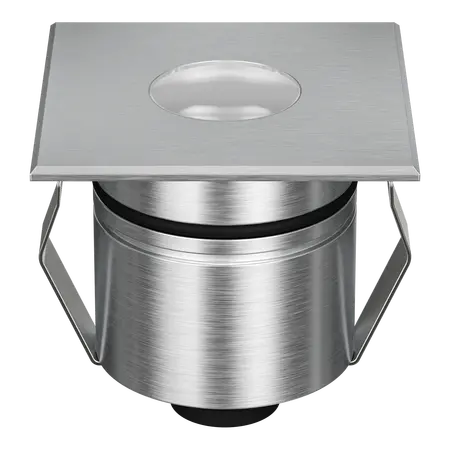

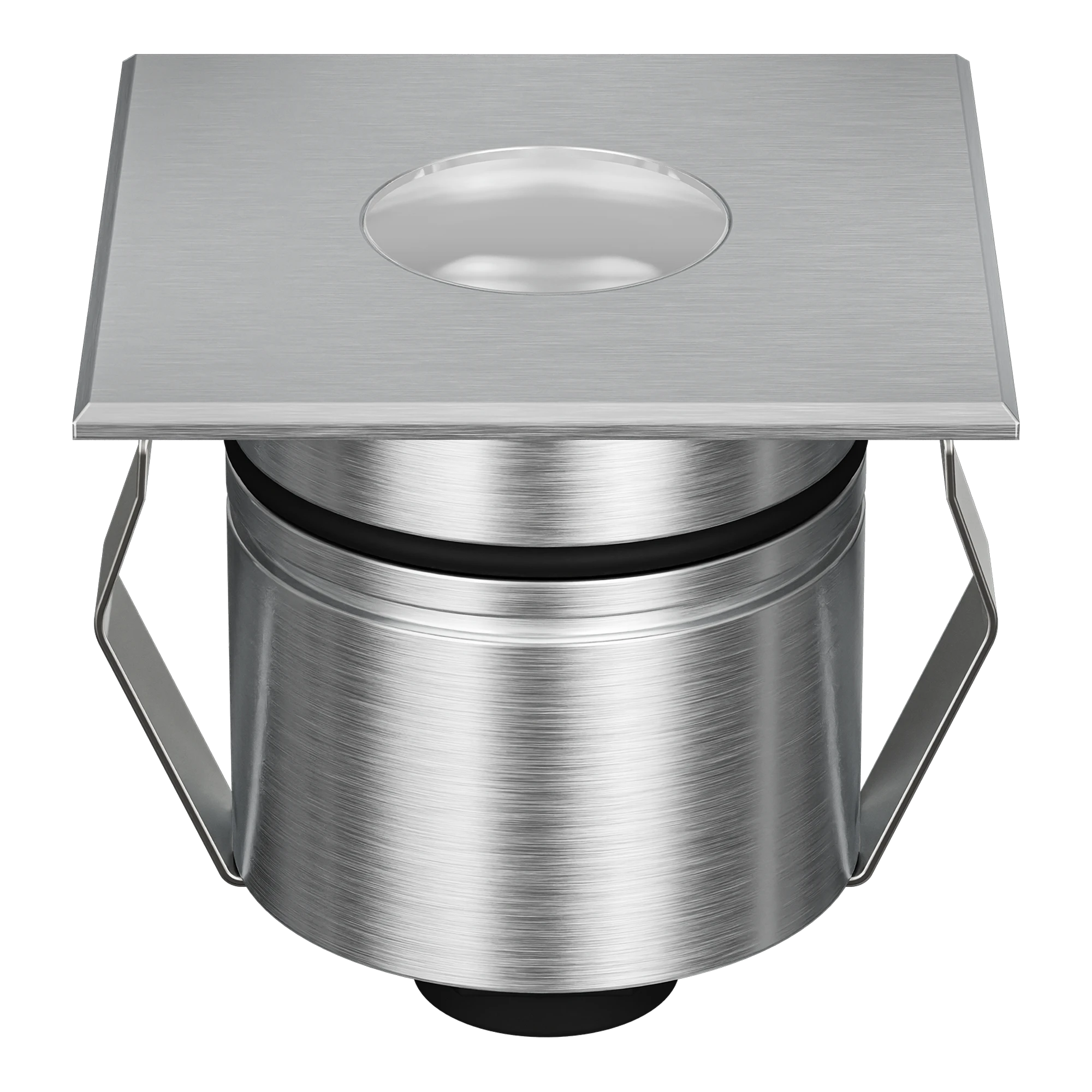

Emit Deck Light 55mm Tri-Colour Square Open 316 Stainless Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-55-TRIO-SO, Domus Emit 55 LED Inground Light, 55mm LED Deck Light, Square Open Inground Light
Technical Specifications
- Model: EMIT-55-TRIO-SO
- Variant: Tri-colour square open
- Light Source: CREE LED
- Power: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Luminous Flux: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Not dimmable
- LED Life: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cut-out: 43 mm without canister or 48 mm with canister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Classification: Class III
- Operating Temperature: -20°C to 40°C
- Fascia Material: 316 stainless steel
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- Square open fascia for deck, pathway and architectural accent lighting
- Compact 55mm format for discreet installation
- 316 stainless steel construction for outdoor applications
- IP67 protection against dust and temporary immersion
- IK10 impact resistance
- Drive-over rated up to 1,500 kg
- Optional beam lenses, honeycomb, linear lens and opal diffuser available
- Requires a separate 12V or 24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation and electrical connection should be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver and install in accordance with the manufacturer's instructions and AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Inground pathway and stair lighting
- Landscape and garden feature lighting
- Architectural accent lighting
- Drive-over outdoor areas requiring compact recessed luminaires
Standards & Compliance
- AS/NZS 60598.1:2025 - Luminaires, general requirements and tests
- AS/NZS 3000:2018 - Electrical installations, applicable to the installation and wiring of the luminaire and driver
Environmental Benefits
- Low 2.5W LED power consumption supports energy-efficient outdoor lighting
- 50,000-hour LED service life can reduce replacement frequency and product waste
- 316 stainless steel is durable and recyclable at end of service life
- Selectable colour temperature can reduce the need to replace fittings when lighting requirements change
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions, including licensed electrician installation and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
