Trade Discount 25%

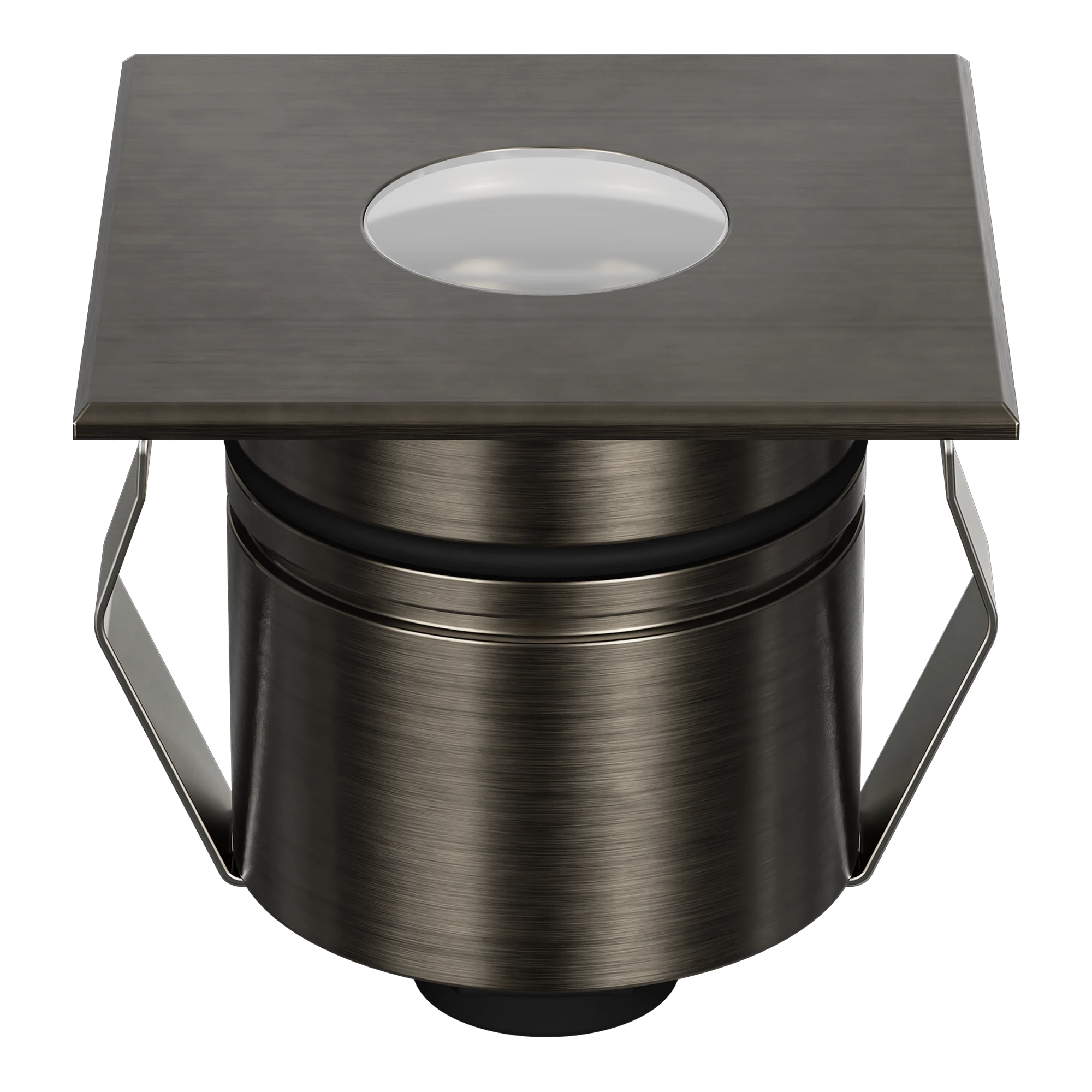

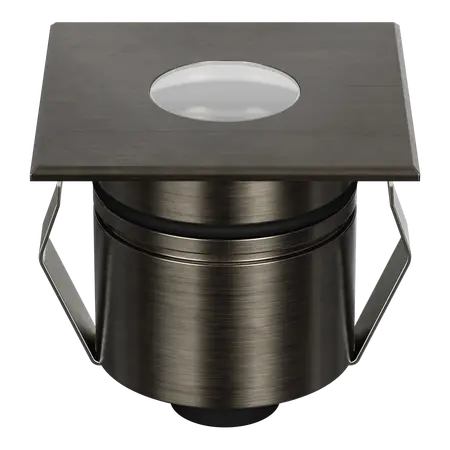

Emit Deck Light 55mm Tri-Colour Square Open Antique Brass Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-55-SO, EMIT-55-TRIO-SO, 55mm Square Open Inground Light, Tri-CCT LED Deck Light
Technical Specifications
- Variant: Tri-Colour selectable
- Finish: Antique brass
- Power: 2.5W
- Input Voltage: 12/24V DC constant-voltage supply
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 135 lm at 3000K, 145 lm at 4000K, 150 lm at 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Classification: Class III
- Rated Life: 50,000 hours
- Cut-out: Ø43mm without cannister or Ø48mm with cannister
- Load Rating: 1500kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver; wire fittings in parallel
- Dimensions (H x L x W): 54mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Square open fascia for discreet architectural lighting
- Selectable warm white, neutral white and cool white colour temperatures
- Antique brass finish for deck, landscape and feature-lighting applications
- IP67-rated construction for outdoor and inground use
- IK10 impact protection and 1500kg drive-over rating
- Compact 55mm fascia with optional lenses and diffuser accessories
- Low 2.5W power consumption
- Requires a separate 12/24V DC LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12/24V DC constant-voltage LED driver, connect fittings in parallel and install all mains-side driver wiring in accordance with applicable Australian electrical requirements.
Applications
- Residential and commercial deck lighting
- Inground landscape and garden lighting
- Pathway and stair illumination
- Architectural feature and accent lighting
- Drive-over outdoor lighting areas
- Outdoor entertainment and hospitality spaces
Standards & Compliance
- AS/NZS 60598.1 – general requirements and tests for luminaires
- AS/NZS 3000 – applicable to installation of the LED driver and low-voltage wiring
Environmental Benefits
- Low 2.5W LED power consumption can reduce operating energy compared with higher-wattage conventional lighting
- Long rated life of 50,000 hours can reduce replacement frequency and associated waste
- Brass and metal components can be recovered through metal recycling at end of service life
- Separate low-voltage driver arrangement supports serviceability and replacement of the driver independently from the luminaire
Warranty Information
5-year replacement warranty stated for the EMIT-55 Tri-Colour product range. Warranty eligibility is subject to Domus Lighting terms, approved installation and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
