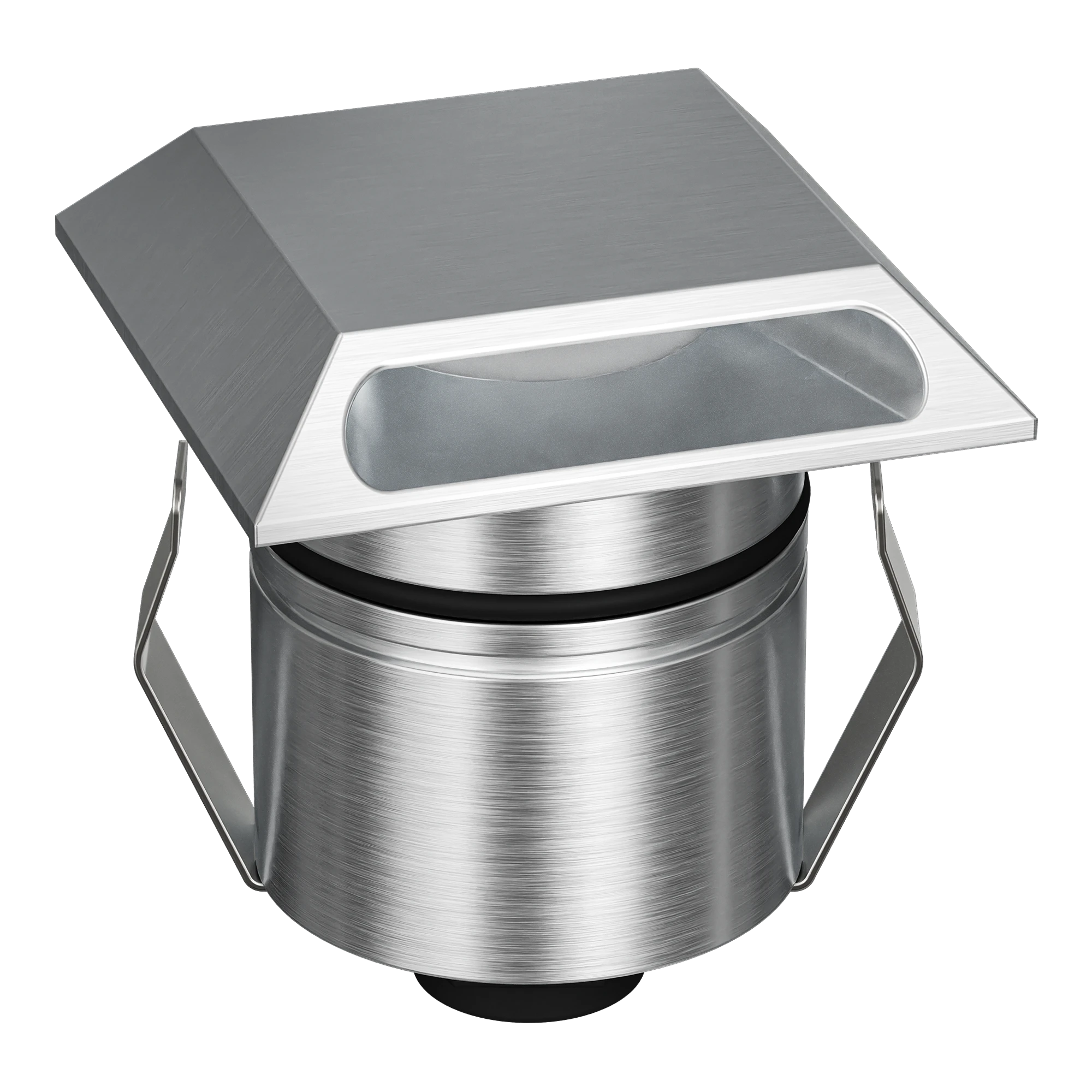

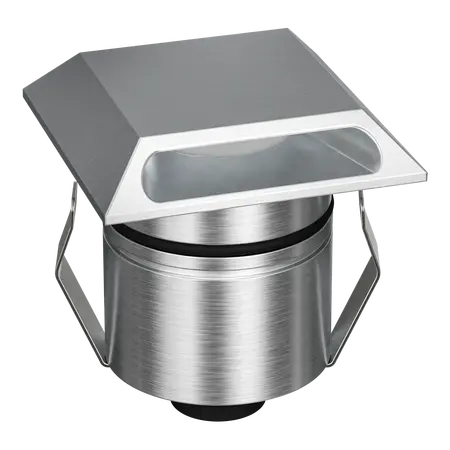

Emit Deck Light 55mm Tri-Colour Square Slot 316 Stainless Domus
Domus Emit 55mm LED deck light, 2.5W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-55 Tri-Colour Square Slot Inground Light, Emit 55 Square Slot Deck Light, 12V/24V LED Inground Light
Technical Specifications
- Wattage: 2.5W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 22 lumens at each selectable colour temperature
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- LED Life: 50,000 hours
- Dimming: Non-dimmable
- Cutout: 43mm diameter without cannister; 48mm diameter with cannister
- Driver Requirement: 12V or 24V DC constant voltage LED driver, wired in parallel
- Fascia Material: 316 stainless steel
- Operating Temperature: -20°C to 40°C
- Class: Class III extra-low-voltage luminaire
- Dimensions (H x L x W): 62mm x 55mm x 55mm
- Weight: 0.25 kg
Key Features
- Tri-colour selectable LED output with warm white, neutral white and white settings
- Square slot fascia for discreet feature and pathway illumination
- 316 stainless steel fascia suitable for exterior and coastal applications
- IP67 protection for inground and deck-lighting installations
- IK10 impact rating and 1500kg drive-over load rating
- 36° beam angle supplied as standard
- Compatible with optional narrow, wide, honeycomb, linear and opal accessories
- Requires a separately supplied 12V or 24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect the fittings in parallel, and follow the manufacturer's installation instructions and applicable wiring requirements.
Applications
- Residential deck and stair lighting
- Landscape and garden feature lighting
- Pathway and architectural accent lighting
- Inground lighting in drive-over areas
- Coastal and exterior lighting installations requiring 316 stainless steel
- Feature lighting for patios, terraces and outdoor entertaining areas
Standards & Compliance
- AS/NZS 60598.1 – Luminaires, general requirements and tests; applicable to luminaire safety assessment
- AS/NZS 60598.2.13 – Particular requirements for ground recessed luminaires; relevant to inground and deck-recessed applications
- AS/NZS 3000 – Wiring Rules; applicable to the installation of the complete low-voltage lighting system
- Manufacturer-specific certification or RCM details were not stated on the reviewed product documentation
Environmental Benefits
- Low 2.5W power consumption supports reduced energy use compared with higher-wattage exterior lighting
- 50,000-hour LED service life can reduce replacement frequency and material waste
- 316 stainless steel is durable and recyclable at end of service life
- 12V/24V DC operation supports integration with efficient extra-low-voltage outdoor lighting systems
Warranty Information
5-year replacement warranty stated on the product datasheet, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
