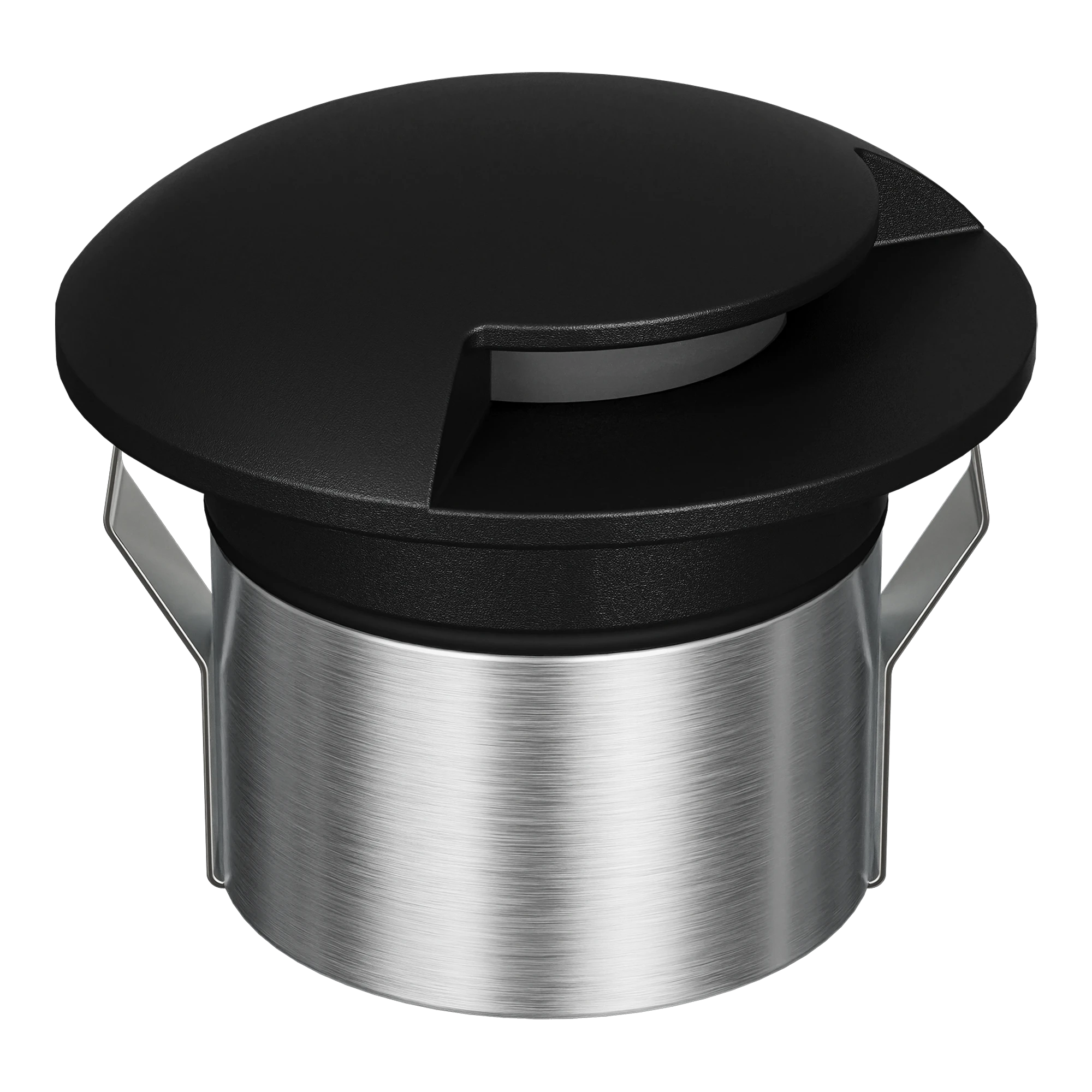

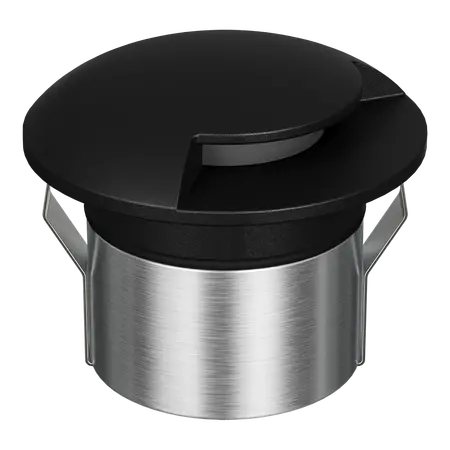

Emit Deck Light 85mm 4/6W Tri-Colour 12/24V 1-Way Black Domus
Domus Emit 85mm LED deck light, 4/6W, tri-colour, 36 deg beam, 12/24V DC, 1-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-85-TRIO-1WAY, Domus Emit 85 1-Way Inground Light, Tri-Colour LED Inground Light
Technical Specifications
- Power: 4W/6W LED output
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Lumens: 29lm at 3000K, 33lm at 4000K, 32lm at 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500kg drive-over
- Dimming: Non-dimmable
- Lifespan: 50,000 hours
- Cutout: 65mm without canister or 82mm with canister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver; wire in parallel
- Finish: Black
- Classification: Class III
- Dimensions (H x L x W): 80mm x 85mm x 85mm
- Weight: 0.45 kg
Key Features
- Selectable warm white, neutral white and white colour temperatures
- 1-way fascia for directional feature lighting
- Compact 85mm overall diameter
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance
- 1500kg drive-over load rating
- 36° beam angle supplied as standard
- Compatible with optional narrow, wide, honeycomb, linear and opal accessories
- Integrated energy-saving LED light source
- Requires a separate 12/24V DC LED driver
Professional Installation Requirements
- Installation must be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000 requirements.
Applications
- Deck and patio lighting
- Garden and landscape feature lighting
- Pathway and stair lighting
- Outdoor architectural accent lighting
- Inground and drive-over feature lighting
- Residential and commercial exterior lighting
Standards & Compliance
- Applicable luminaire safety reference: AS/NZS 60598.1
- Electrical installation reference: AS/NZS 3000:2018
Environmental Benefits
- LED technology provides lower energy consumption than conventional equivalent light sources
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Low-voltage 12/24V DC operation supports efficient extra-low-voltage lighting systems
- Long service life helps reduce maintenance-related transport, packaging and disposal impacts
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions, including installation by a licensed electrician and compliance with installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
